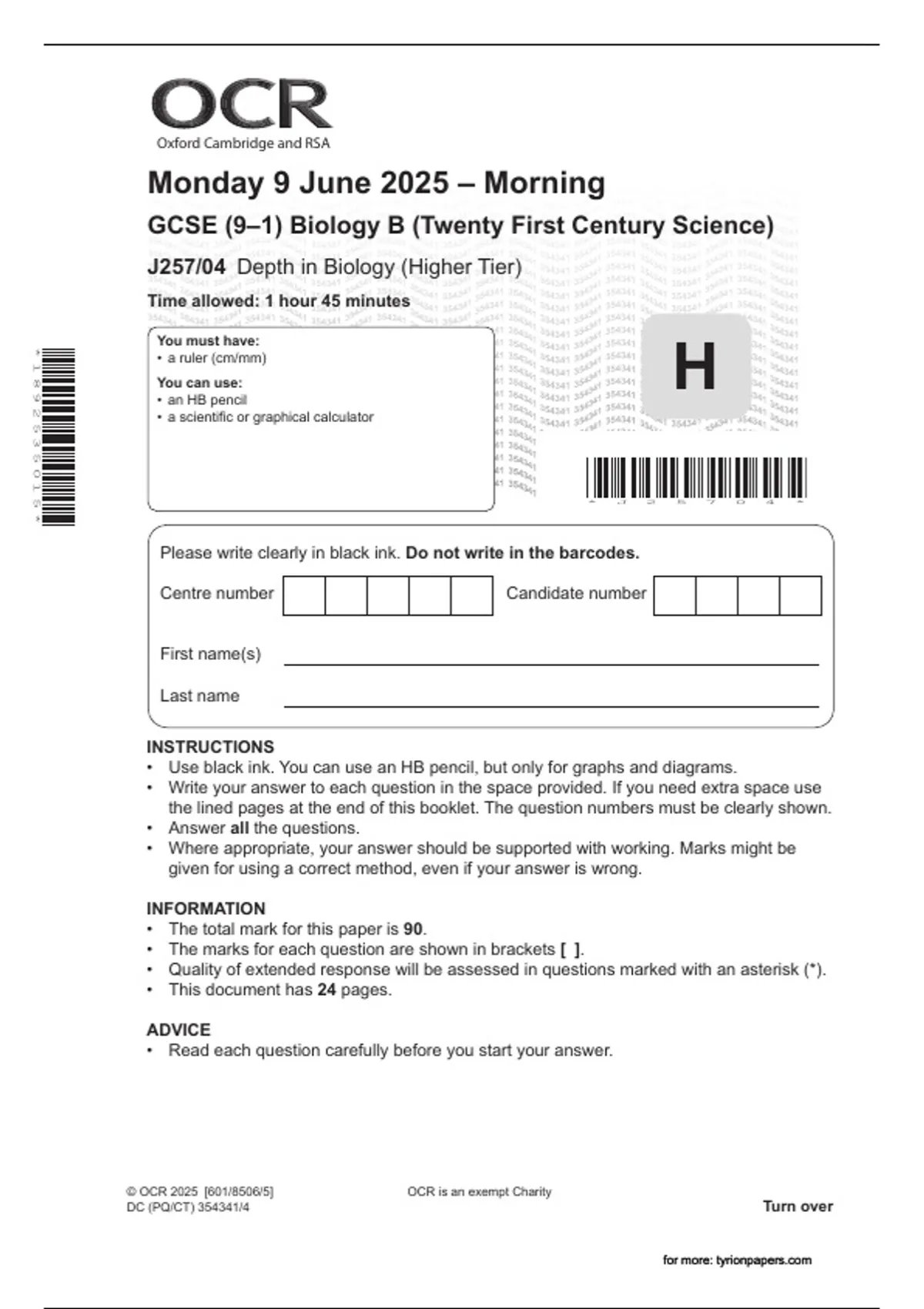

Oxford Cambridge and RSA
Monday 9 June 2025 – Morning
GCSE (9–1) Biology B (Twenty First Century Science)
J257/04 Depth in Biology (Higher Tier)
Time allowed: 1 hour 45 minutes
H
You must have:
* 1 8 9 2 5 3 5 0 1 5 *
• a ruler (cm/mm)
You can use:
• an HB pencil
• a scientific or graphical calculator
* J 2 5 7 0 4 *
Please write clearly in black ink. Do not write in the barcodes.
Centre number Candidate number
First name(s)
Last name
INSTRUCTIONS
• Use black ink. You can use an HB pencil, but only for graphs and diagrams.
• Write your answer to each question in the space provided. If you need extra space use
the lined pages at the end of this booklet. The question numbers must be clearly shown.
• Answer all the questions.
• Where appropriate, your answer should be supported with working. Marks might be
given for using a correct method, even if your answer is wrong.
INFORMATION
• The total mark for this paper is 90.
• The marks for each question are shown in brackets [ ].
• Quality of extended response will be assessed in questions marked with an asterisk (*).
• This document has 24 pages.
ADVICE
• Read each question carefully before you start your answer.
© OCR 2025 [601/8506/5] OCR is an exempt Charity
DC (PQ/CT) 354341/4 Turn over
for more: tyrionpapers.com
, 2
1 The pupil is part of the human eye.
Pupil
Iris
A student investigates the effect of changing the light level on pupil diameter.
The student uses a lamp with adjustable brightness, measured in lumens.
The maximum brightness of the lamp is 1200 lumens (100%).
Table 1.1 shows the data the student records.
Table 1.1
Light level Light brightness Distance between Pupil diameter
(%) (lumens) lamp and eye (m) (mm)
80 1.5 4
40 480 1.5 6
20 240 1.5 8
(a) Complete Table 1.2 to identify the variables in the investigation.
Put one tick (3) in each row to show whether the variable is the dependent variable, the
independent variable or neither.
Table 1.2
Dependent Independent Neither
variable variable
Distance between lamp and eye (m)
Light brightness (lumens)
Pupil diameter (mm)
[2]
© OCR 2025
for more: tyrionpapers.com
, 3
(b) Suggest one other variable not included in Table 1.2 that should be controlled.
..........................................................................................................................................................
..................................................................................................................................................... [1]
(c) Calculate the number of lumens equivalent to a light level of 80%.
Use the data in Table 1.1.
Number of lumens equivalent to a light level of 80% = ............................................ lumens [2]
(d) The student measures the pupil diameter by holding a ruler against the person’s eye.
Suggest a safer way to measure the pupil diameter.
..........................................................................................................................................................
..................................................................................................................................................... [1]
(e) The student predicts that if a light brightness of 1200 lumens is tested, the pupil diameter will be
approximately 2 mm.
Explain why the student is correct.
..........................................................................................................................................................
..........................................................................................................................................................
..........................................................................................................................................................
..........................................................................................................................................................
..........................................................................................................................................................
..................................................................................................................................................... [3]
© OCR 2025 Turn over
for more: tyrionpapers.com
Monday 9 June 2025 – Morning
GCSE (9–1) Biology B (Twenty First Century Science)
J257/04 Depth in Biology (Higher Tier)
Time allowed: 1 hour 45 minutes
H
You must have:
* 1 8 9 2 5 3 5 0 1 5 *
• a ruler (cm/mm)
You can use:
• an HB pencil
• a scientific or graphical calculator
* J 2 5 7 0 4 *
Please write clearly in black ink. Do not write in the barcodes.
Centre number Candidate number
First name(s)
Last name
INSTRUCTIONS
• Use black ink. You can use an HB pencil, but only for graphs and diagrams.
• Write your answer to each question in the space provided. If you need extra space use
the lined pages at the end of this booklet. The question numbers must be clearly shown.
• Answer all the questions.
• Where appropriate, your answer should be supported with working. Marks might be
given for using a correct method, even if your answer is wrong.
INFORMATION
• The total mark for this paper is 90.
• The marks for each question are shown in brackets [ ].
• Quality of extended response will be assessed in questions marked with an asterisk (*).
• This document has 24 pages.
ADVICE
• Read each question carefully before you start your answer.
© OCR 2025 [601/8506/5] OCR is an exempt Charity
DC (PQ/CT) 354341/4 Turn over
for more: tyrionpapers.com
, 2
1 The pupil is part of the human eye.
Pupil
Iris
A student investigates the effect of changing the light level on pupil diameter.
The student uses a lamp with adjustable brightness, measured in lumens.
The maximum brightness of the lamp is 1200 lumens (100%).
Table 1.1 shows the data the student records.
Table 1.1
Light level Light brightness Distance between Pupil diameter
(%) (lumens) lamp and eye (m) (mm)
80 1.5 4
40 480 1.5 6
20 240 1.5 8
(a) Complete Table 1.2 to identify the variables in the investigation.
Put one tick (3) in each row to show whether the variable is the dependent variable, the
independent variable or neither.
Table 1.2
Dependent Independent Neither
variable variable
Distance between lamp and eye (m)
Light brightness (lumens)
Pupil diameter (mm)
[2]
© OCR 2025
for more: tyrionpapers.com
, 3
(b) Suggest one other variable not included in Table 1.2 that should be controlled.
..........................................................................................................................................................
..................................................................................................................................................... [1]
(c) Calculate the number of lumens equivalent to a light level of 80%.
Use the data in Table 1.1.
Number of lumens equivalent to a light level of 80% = ............................................ lumens [2]
(d) The student measures the pupil diameter by holding a ruler against the person’s eye.
Suggest a safer way to measure the pupil diameter.
..........................................................................................................................................................
..................................................................................................................................................... [1]
(e) The student predicts that if a light brightness of 1200 lumens is tested, the pupil diameter will be
approximately 2 mm.
Explain why the student is correct.
..........................................................................................................................................................
..........................................................................................................................................................
..........................................................................................................................................................
..........................................................................................................................................................
..........................................................................................................................................................
..................................................................................................................................................... [3]
© OCR 2025 Turn over
for more: tyrionpapers.com
