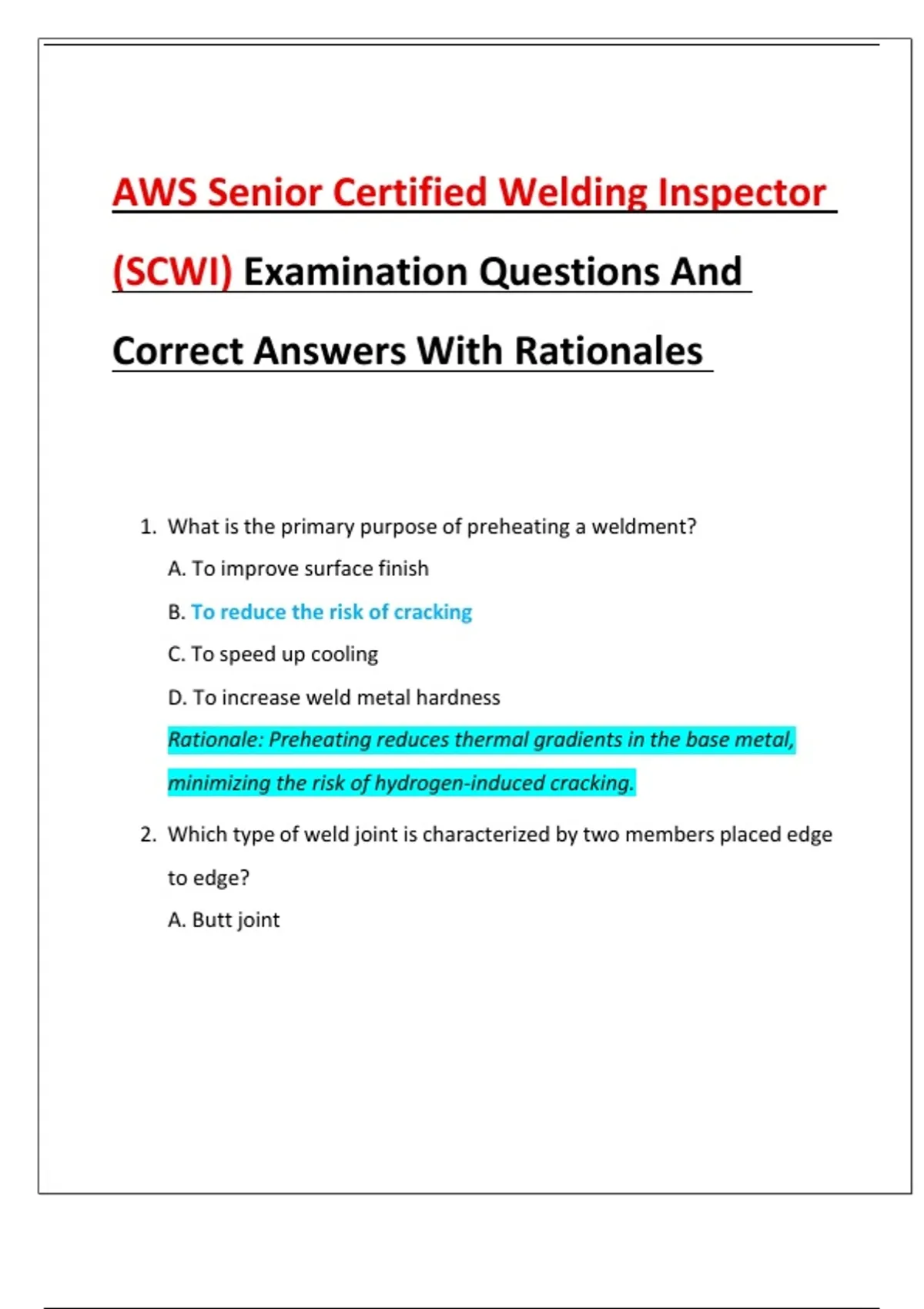

AWS Senior Certified Welding Inspector
(SCWI) Examination Questions And
Correct Answers With Rationales
1. What is the primary purpose of preheating a weldment?
A. To improve surface finish
B. To reduce the risk of cracking
C. To speed up cooling
D. To increase weld metal hardness
Rationale: Preheating reduces thermal gradients in the base metal,
minimizing the risk of hydrogen-induced cracking.
2. Which type of weld joint is characterized by two members placed edge
to edge?
A. Butt joint
, B. Lap joint
C. Corner joint
D. Edge joint
Rationale: Edge joints involve two members placed side by side with
their edges parallel, typically used for thin sheets.
3. The most common welding process for structural steel is:
A. Gas tungsten arc welding (GTAW)
B. Shielded metal arc welding (SMAW)
C. Flux-cored arc welding (FCAW)
D. Oxy-fuel welding (OFW)
Rationale: FCAW provides deep penetration and high deposition rates,
making it common for structural steel applications.
4. Which discontinuity is most often associated with rapid cooling of
weld metal?
A. Porosity
B. Cracking
C. Undercut
D. Slag inclusion
Rationale: Rapid cooling can produce high residual stresses, which can
lead to cracking in the weld or HAZ.
5. What is the primary advantage of using low-hydrogen electrodes in
SMAW?
A. Lower deposition rate
, B. Reduced risk of hydrogen-induced cracking
C. Increased weld bead appearance
D. Faster welding speed
Rationale: Low-hydrogen electrodes minimize the introduction of
hydrogen into the weld metal, reducing the risk of cracking.
6. Which NDT method is most suitable for detecting surface-breaking
cracks?
A. Radiographic testing (RT)
B. Ultrasonic testing (UT)
C. Magnetic particle testing (MT)
D. Liquid penetrant testing (PT)
Rationale: PT is highly effective for identifying surface discontinuities in
non-porous materials.
7. Which of the following is a common cause of incomplete fusion in a
weld?
A. High amperage
B. Low heat input
C. Proper electrode angle
D. Adequate cleaning of base metal
Rationale: Insufficient heat prevents proper melting and fusion of the
base metal and filler metal.
8. The heat-affected zone (HAZ) is:
A. The melted portion of the weld
, B. The base metal far from the weld
C. The filler metal only
D. The base metal adjacent to the weld that experienced thermal
cycles
Rationale: The HAZ undergoes microstructural changes due to heat but
does not melt.
9. What is the purpose of post-weld heat treatment (PWHT)?
A. To increase weld deposition rate
B. To relieve residual stresses and reduce hardness
C. To clean slag
D. To prevent porosity
Rationale: PWHT reduces residual stress and potential cracking in the
weld and HAZ.
10. Which factor is most likely to cause porosity in a weld?
A. Incorrect electrode angle
B. Contaminated base metal or filler metal
C. Slow welding speed
D. Proper shielding gas
Rationale: Contamination introduces gases that cannot escape,
forming porosity.
11. In ultrasonic testing, what indicates a discontinuity?
A. A change in color
B. A reflected or backscattered signal
