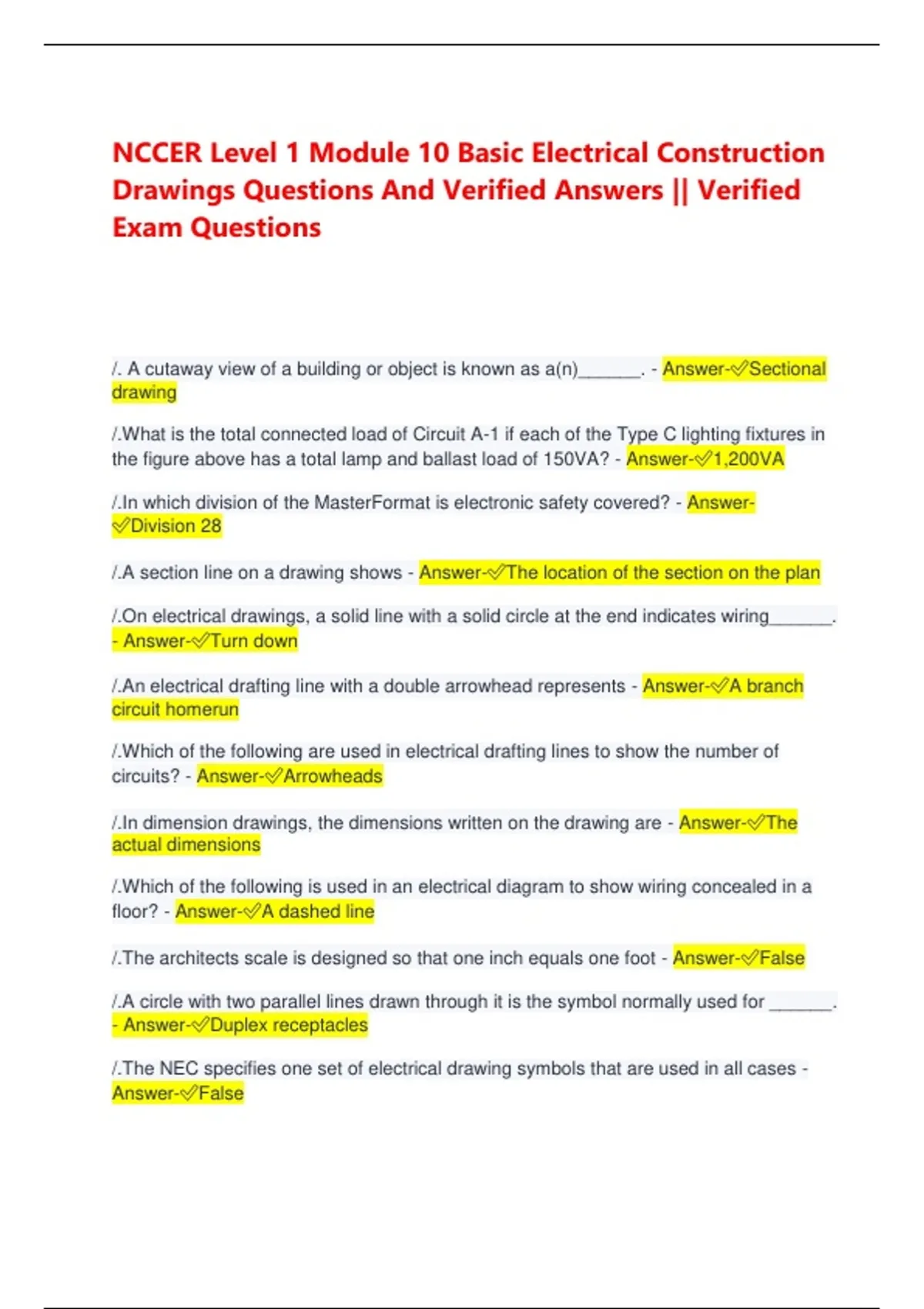

NCCER Level 1 Module 10 Basic Electrical Construction
Drawings Questions And Verified Answers || Verified
Exam Questions
/. A cutaway view of a building or object is known as a(n)______. - Answer-✅Sectional
drawing
/.What is the total connected load of Circuit A-1 if each of the Type C lighting fixtures in
the figure above has a total lamp and ballast load of 150VA? - Answer-✅1,200VA
/.In which division of the MasterFormat is electronic safety covered? - Answer-
✅Division 28
/.A section line on a drawing shows - Answer-✅The location of the section on the plan
/.On electrical drawings, a solid line with a solid circle at the end indicates wiring______.
- Answer-✅Turn down
/.An electrical drafting line with a double arrowhead represents - Answer-✅A branch
circuit homerun
/.Which of the following are used in electrical drafting lines to show the number of
circuits? - Answer-✅Arrowheads
/.In dimension drawings, the dimensions written on the drawing are - Answer-✅The
actual dimensions
/.Which of the following is used in an electrical diagram to show wiring concealed in a
floor? - Answer-✅A dashed line
/.The architects scale is designed so that one inch equals one foot - Answer-✅False
/.A circle with two parallel lines drawn through it is the symbol normally used for ______.
- Answer-✅Duplex receptacles
/.The NEC specifies one set of electrical drawing symbols that are used in all cases -
Answer-✅False
Drawings Questions And Verified Answers || Verified
Exam Questions
/. A cutaway view of a building or object is known as a(n)______. - Answer-✅Sectional
drawing
/.What is the total connected load of Circuit A-1 if each of the Type C lighting fixtures in
the figure above has a total lamp and ballast load of 150VA? - Answer-✅1,200VA
/.In which division of the MasterFormat is electronic safety covered? - Answer-
✅Division 28
/.A section line on a drawing shows - Answer-✅The location of the section on the plan
/.On electrical drawings, a solid line with a solid circle at the end indicates wiring______.
- Answer-✅Turn down
/.An electrical drafting line with a double arrowhead represents - Answer-✅A branch
circuit homerun
/.Which of the following are used in electrical drafting lines to show the number of
circuits? - Answer-✅Arrowheads
/.In dimension drawings, the dimensions written on the drawing are - Answer-✅The
actual dimensions
/.Which of the following is used in an electrical diagram to show wiring concealed in a
floor? - Answer-✅A dashed line
/.The architects scale is designed so that one inch equals one foot - Answer-✅False
/.A circle with two parallel lines drawn through it is the symbol normally used for ______.
- Answer-✅Duplex receptacles
/.The NEC specifies one set of electrical drawing symbols that are used in all cases -
Answer-✅False
