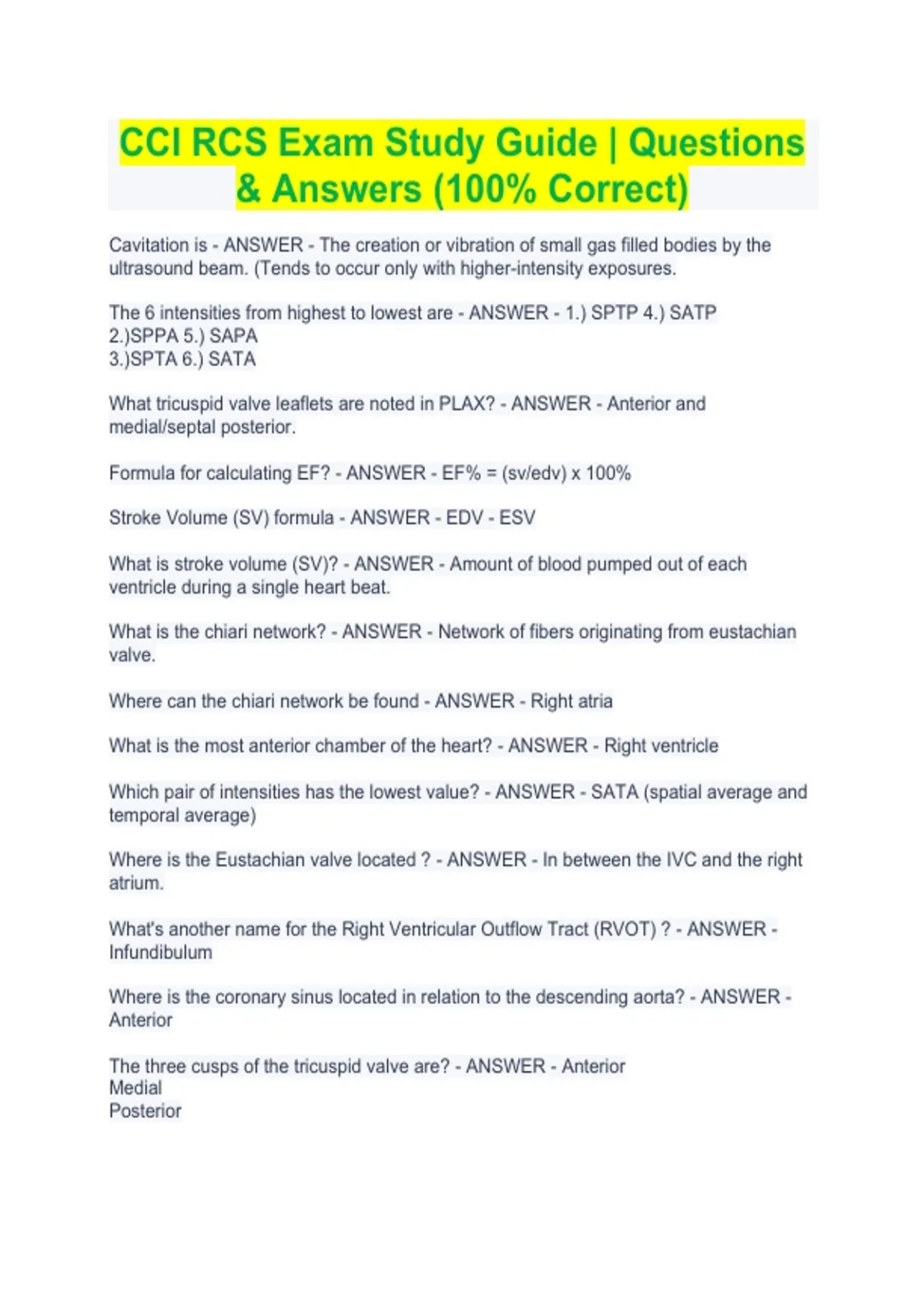

CCI RCS Exam Study Guide | Questions
& Answers (100% Correct)
Cavitation is - ANSWER - The creation or vibration of small gas filled bodies by the
ultrasound beam. (Tends to occur only with higher-intensity exposures.
The 6 intensities from highest to lowest are - ANSWER - 1.) SPTP 4.) SATP
2.)SPPA 5.) SAPA
3.)SPTA 6.) SATA
What tricuspid valve leaflets are noted in PLAX? - ANSWER - Anterior and
medial/septal posterior.
Formula for calculating EF? - ANSWER - EF% = (sv/edv) x 100%
Stroke Volume (SV) formula - ANSWER - EDV - ESV
What is stroke volume (SV)? - ANSWER - Amount of blood pumped out of each
ventricle during a single heart beat.
What is the chiari network? - ANSWER - Network of fibers originating from eustachian
valve.
Where can the chiari network be found - ANSWER - Right atria
What is the most anterior chamber of the heart? - ANSWER - Right ventricle
Which pair of intensities has the lowest value? - ANSWER - SATA (spatial average and
temporal average)
Where is the Eustachian valve located ? - ANSWER - In between the IVC and the right
atrium.
What's another name for the Right Ventricular Outflow Tract (RVOT) ? - ANSWER -
Infundibulum
Where is the coronary sinus located in relation to the descending aorta? - ANSWER -
Anterior
The three cusps of the tricuspid valve are? - ANSWER - Anterior
Medial
Posterior
,What's the two main layers of the pericardium? - ANSWER - 1.) Visceral = lies directly
upon external surface of the heart and is commonly referred to as the epicardium.
2,) Parietal = or fibrous pericardium is the thick outer sac.
*The pericardial cavity lies between these two layers.
What is the normal pressure for the right ventricle ? - ANSWER - 25/5 mmHg
What is the normal pressure for the pulmonary artery? - ANSWER - 25/10 mmHg
What is the normal pressure for the left atrium? - ANSWER - 10mmHg
What is the normal pressure for the aorta ? - ANSWER - 120/80 mmHg
What are the two cusps of the mitral valve ? - ANSWER - Anterior (long) and the
posterior (short)
When is the left ventricular pressure the lowest? - ANSWER - Early diastole
What is Becks Triad and what does it cause? - ANSWER - AKA cardiac tamponade.
Causes an elevated pressure in heart, hypotension and a quiet heart
What are the effects of pulmonary HTN ? - ANSWER - Dilated pulmonary artery
Severe TR
RV dilation
What happens to the size of an aneurysm during systole? - ANSWER - It increases
In patients with A-Fib which heart sound would be missing ? - ANSWER - Fourth
What is the normal O2 saturation of the left heart ? - ANSWER - 98%
What is cardiac output? - ANSWER - It is the total amount of blood ejected per minute.
*cardiac output = stroke volume x HR
*normal cardiac output = 4-8 liters/minute
Effects of left side heart failure - ANSWER - Blood backs up to lungs and patient has
shortness of breath
What part of the heart is affected when there is pulmonary edema ? - ANSWER - Left
side of heart
What is the primary cause of Congestive Heart Failure? - ANSWER - Systolic
dysfunction.
What part of the heart is affected when there is peripheral edema? - ANSWER - Right
side of the heart
, When the foremen ovale closes after birth due to increased left atrial pressure the spot
it was located is now called? - ANSWER - Fossa ovalis
Mitral regurge hemodynamic evaluation is done in ? - ANSWER - Systole
Aortic stenosis evaluation is done in? - ANSWER - Systole
Tricuspid stenosis evaluation is done in ? - ANSWER - Diastole
What is Dresslers syndrome ? - ANSWER - Pericardial effusion after myocardial
infarction
Is left atrial thrombus common in patients with mitral stenosis? - ANSWER - Yes,
especially in appendage
What are 3 factors affecting stroke volume? - ANSWER - Preload, after-load,
contractility
What is fractional shortening? - ANSWER - It is the fraction of any diastolic dimension
that is lost in systole.
*normal range = 25-45%
If a patient has a stroke volume of 70ml and a heart rate of 90bpm what would be their
cardiac output? - ANSWER - Cardiac Output= Stroke volume x heart rate
70ml x 90bpm = 630ml/minute
What is QP and QS? - ANSWER - QP= pulmonary circulatory flow
QS= systemic circulatory flow
Atrial septal defect surgery is mainly considered when the QP/QS ratio exceed? -
ANSWER - 1:5
*normal = 1:1
What are the 2 most common encountered congenital heart lesions diagnosed in adults
? - ANSWER - Atrial septal defect
Bicuspid aortic valve
What chamber of the heart would be greater affected in patients with ventricular septal
defects and left to right shunting? - ANSWER - Right atrium
A patient with a higher blood pressure in the right arm than the left arm may have? -
ANSWER - Coarctation of aorta
How is a 2-d image of a phased array transducer created? - ANSWER - Sequentially
activating a series of adjacent crystals to angular the ultrasound beam
