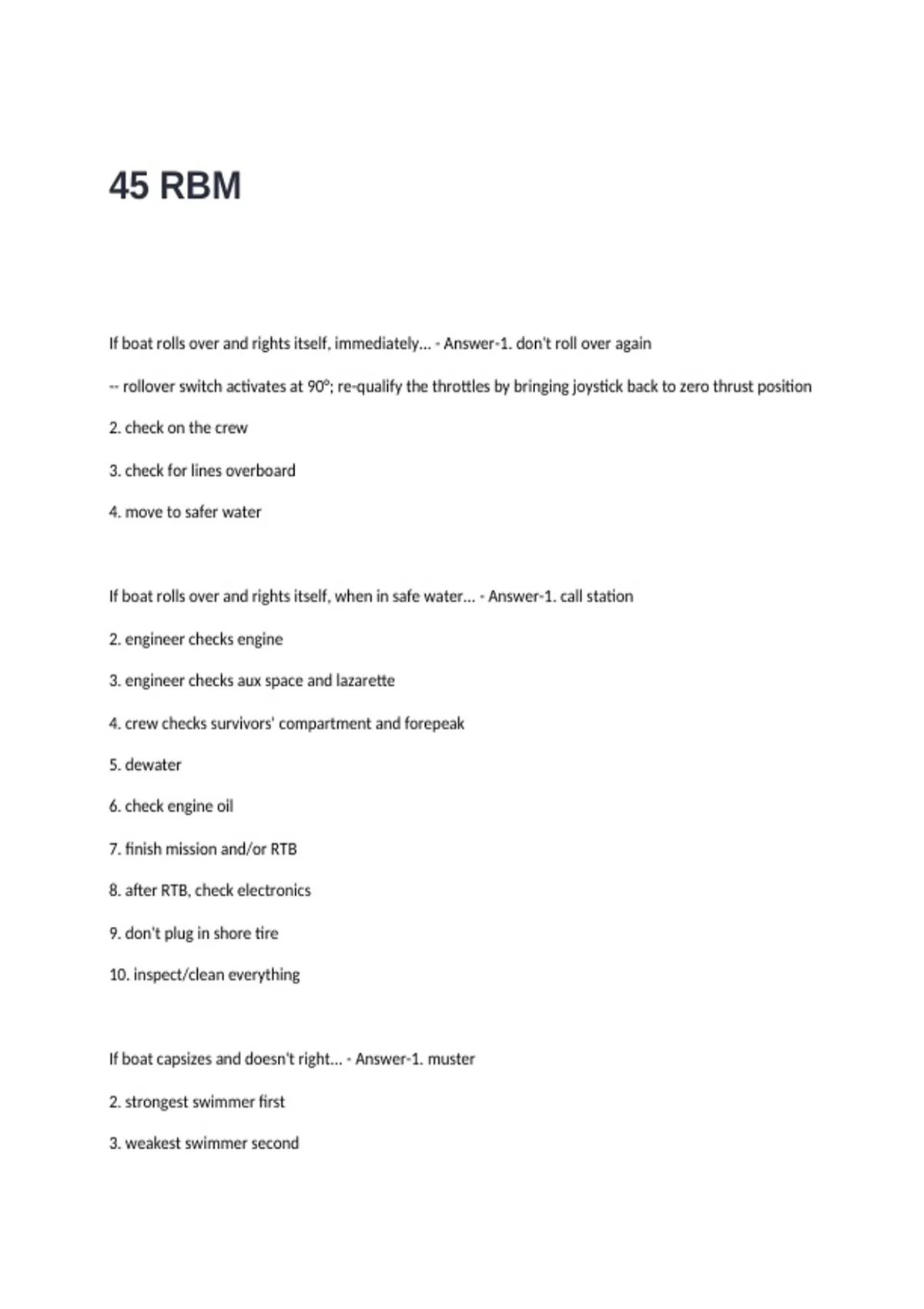

45 RBM
If boat rolls over and rights itself, immediately... - Answer-1. don't roll over again
-- rollover switch activates at 90°; re-qualify the throttles by bringing joystick back to zero thrust position
2. check on the crew
3. check for lines overboard
4. move to safer water
If boat rolls over and rights itself, when in safe water... - Answer-1. call station
2. engineer checks engine
3. engineer checks aux space and lazarette
4. crew checks survivors' compartment and forepeak
5. dewater
6. check engine oil
7. finish mission and/or RTB
8. after RTB, check electronics
9. don't plug in shore tire
10. inspect/clean everything
If boat capsizes and doesn't right... - Answer-1. muster
2. strongest swimmer first
3. weakest swimmer second
,4. second best swimmer third
5. muster
6. climb atop the hull
7. first aid
8. signal
9. wait with the boat
Freeboard amidships (deck recess) - Answer-1'11"
pyro characteristics - Answer-MK-124: day/night flare. Each side burns for approx. 20 seconds. Light at
45 angle
Day, orange smoke.
Night, red flare. 100,000
MK-79: Red Star Shell, burns for 4-5 seconds
250-650ft, 12,000CP
MK-127A: White Illumination, 36 seconds, 650-700ft descends at 10-15 FPS, 125,000CP
State all egress routes in order of precedence - Answer-1. escape hatch in survivor's compartment
2. aft cabin door
3. sliding windows
Draft - Answer-3'4"
, Engine compartment air intake is through _____ with _____. (How many each?) - Answer-demisters,
one damper
State all egress routes in order of precedence (simple) - Answer-forward, aft, sides
Where are the LED deck lights controlled from? - Answer-engineer console
List all the watertight fittings on the 45. - Answer-LAZARETTE: 24" hatch.
ENGINE ROOM: 24" square hatch, two bay doors
PILOT HOUSE: door, windows
SURVIVORS COMPARTMENT: 24 egress hatch FOREPEAK: 24" hatch
Three basic types of hulls - Answer-displacement, planing, semi-displacement
Length Overall with fender - Answer-44'9"
Two keel types - Answer-Bar keel, Flat plate keel
Beam Overall - Answer-14'8"
The RB-M is equipped with individual _____ and _____ P6 standpipes located on the port side of the
Lazarette scuttle. (What are they used for?) - Answer-dewatering (top), firefighting (bottom)
Deanchoring shackle size - Answer-1 1/4"
____ and ____ are naturally ventilated through __ vent valves. (compartment, compartment, how
many) - Answer-Forepeak, Lazarette, 4
