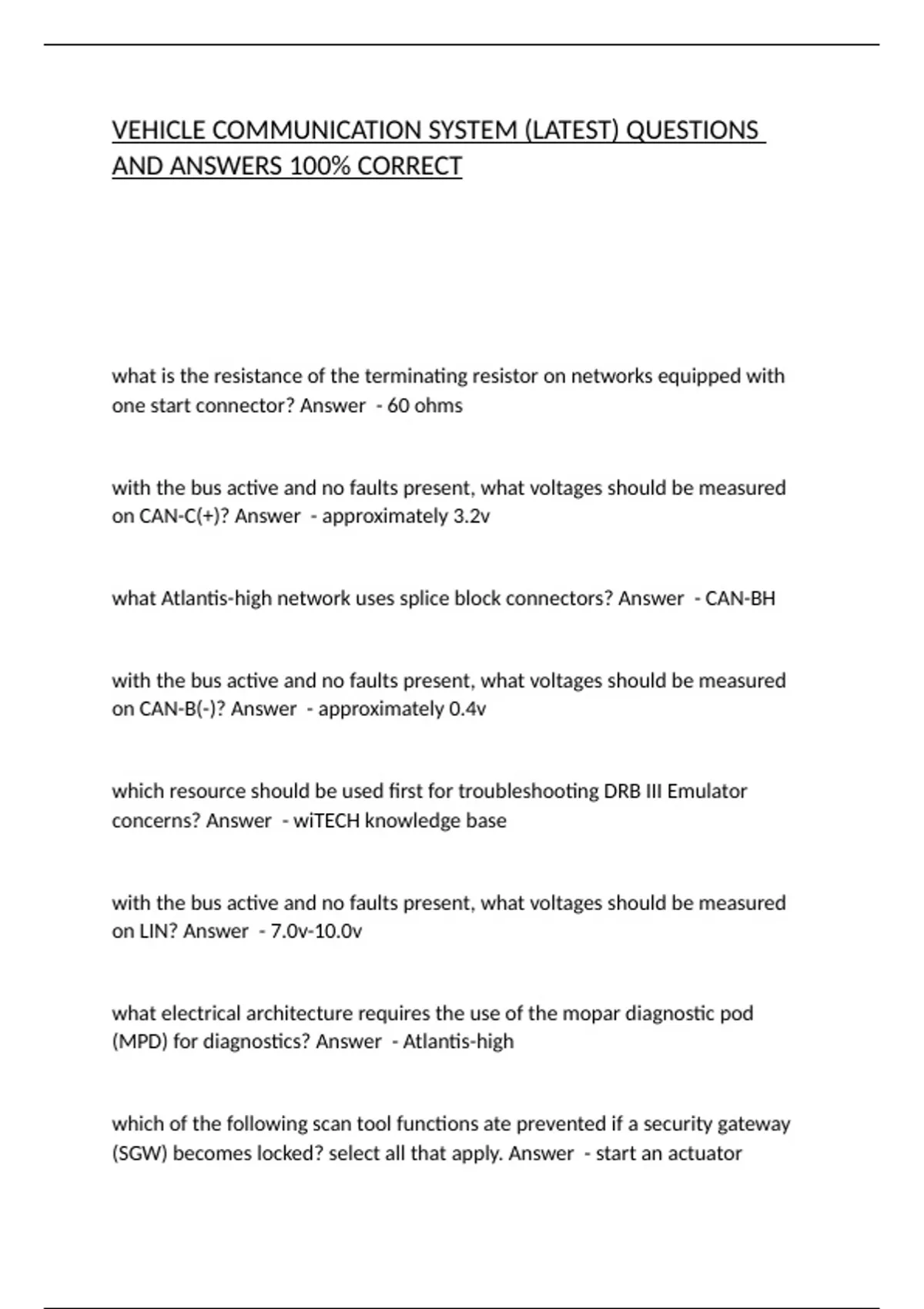

VEHICLE COMMUNICATION SYSTEM (LATEST) QUESTIONS
AND ANSWERS 100% CORRECT
what is the resistance of the terminating resistor on networks equipped with
one start connector? Answer - 60 ohms
with the bus active and no faults present, what voltages should be measured
on CAN-C(+)? Answer - approximately 3.2v
what Atlantis-high network uses splice block connectors? Answer - CAN-BH
with the bus active and no faults present, what voltages should be measured
on CAN-B(-)? Answer - approximately 0.4v
which resource should be used first for troubleshooting DRB III Emulator
concerns? Answer - wiTECH knowledge base
with the bus active and no faults present, what voltages should be measured
on LIN? Answer - 7.0v-10.0v
what electrical architecture requires the use of the mopar diagnostic pod
(MPD) for diagnostics? Answer - Atlantis-high
which of the following scan tool functions ate prevented if a security gateway
(SGW) becomes locked? select all that apply. Answer - start an actuator
AND ANSWERS 100% CORRECT
what is the resistance of the terminating resistor on networks equipped with
one start connector? Answer - 60 ohms
with the bus active and no faults present, what voltages should be measured
on CAN-C(+)? Answer - approximately 3.2v
what Atlantis-high network uses splice block connectors? Answer - CAN-BH
with the bus active and no faults present, what voltages should be measured
on CAN-B(-)? Answer - approximately 0.4v
which resource should be used first for troubleshooting DRB III Emulator
concerns? Answer - wiTECH knowledge base
with the bus active and no faults present, what voltages should be measured
on LIN? Answer - 7.0v-10.0v
what electrical architecture requires the use of the mopar diagnostic pod
(MPD) for diagnostics? Answer - Atlantis-high
which of the following scan tool functions ate prevented if a security gateway
(SGW) becomes locked? select all that apply. Answer - start an actuator
