Analog Electronics (PC-EE302) | Semester Exam Question Paper | MAKAUT

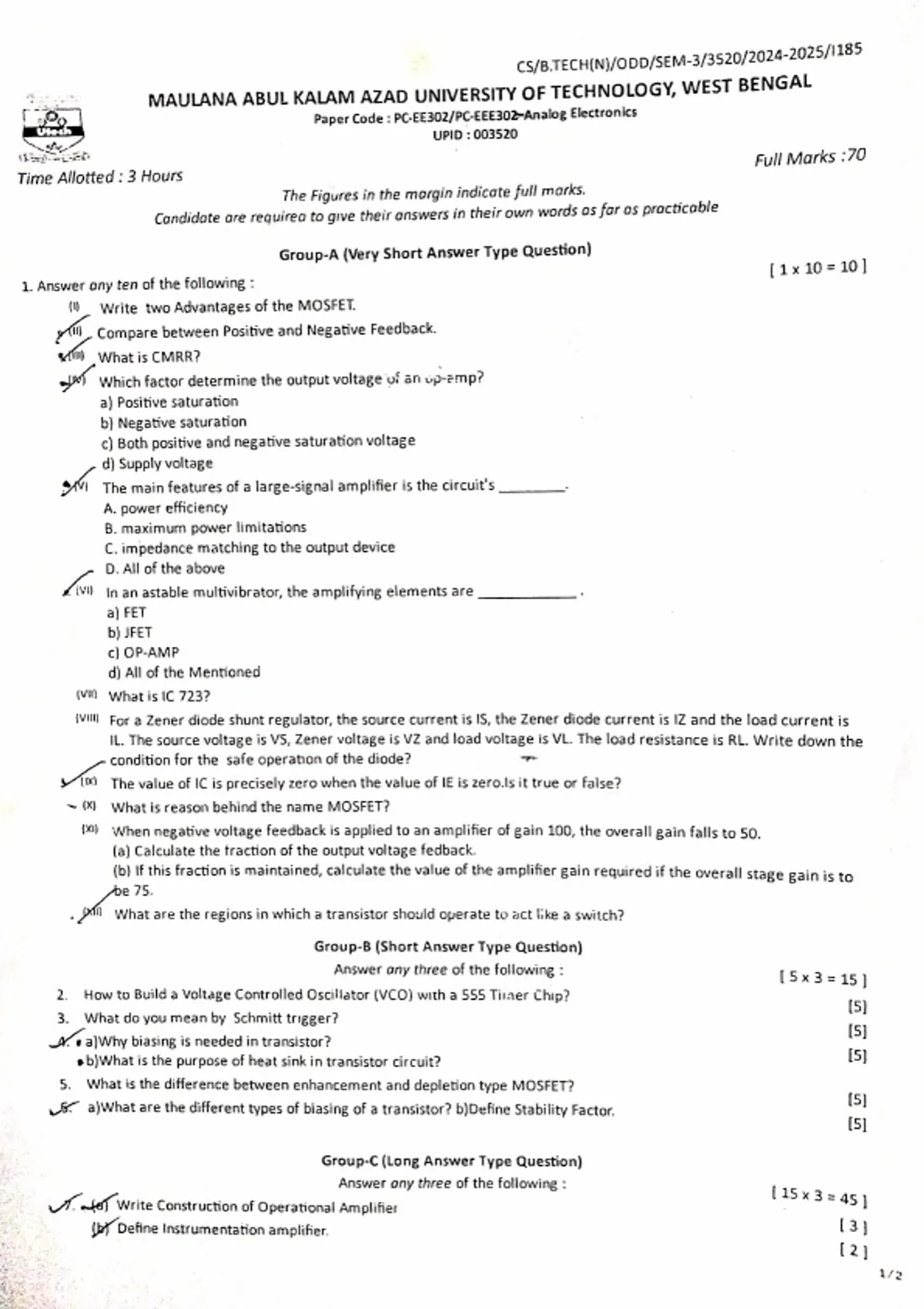

Title: MAKAUT Analog Electronics (PC-EE302) Exam Paper | Solved 3rd Sem Question Paper Document Overview: This is the official Analog Electronics (Paper Code: PC-EE302 / PC-EEE302) end-semester examination paper from the Maulana Abul Kalam Azad University of Technology (MAKAUT). It is a critical study resource for B.Tech 3rd Semester students in Electrical and Electronics Engineering departments for the 2024–2025 academic session. Key Course Details Institution: Maulana Abul Kalam Azad University of Technology, West Bengal (MAKAUT). Course: B.Tech (Odd Semester). Subject: Analog Electronics. Paper Codes: PC-EE302 / PC-EEE302. UPID: 003520. Total Marks: 70. Comprehensive Syllabus Coverage This paper provides a complete review of the 3rd-semester syllabus, organized into three high-value sections: 1. Fundamentals & Integrated Circuits (Group-A) MOSFET Technology: Advantages and physical structures. Feedback Amplifiers: Comparison of positive vs. negative feedback. Operational Amplifiers (Op-Amps): CMRR, saturation factors, and ideal vs. practical characteristics. Voltage Regulation: IC 723 features and Zener diode shunt regulator safe operation. 2. Transistors & Signal Processing (Group-B) VCO Design: Building a Voltage Controlled Oscillator using the 555 Timer chip. Wave Shaping: Principles of the Schmitt trigger. Thermal & Bias Stability: Purpose of heat sinks, transistor biasing necessity, and defining the Stability Factor. MOSFET Variants: In-depth look at enhancement vs. depletion type MOSFETs. 3. Power Amplifiers & Oscillators (Group-C) Instrumentation Amplifiers: Definition and core design. Large-Signal Amplifiers: Detailed analysis of Class A and Class B Push-Pull amplifiers, including efficiency derivations. Multi-vibrators: Theory and circuit diagrams for Astable, Monostable, and Bistable types. Advanced Control: The role of VCOs in Phase-Locked Loops (PLL). Why You Should Download This Document: Official Exam Format: Perfect for practicing with the actual MAKAUT question structure. Exam-Specific Topics: Focuses on the exact high-weightage topics like 555 Timers, Push-Pull Amplifiers, and Instrumentation Amplifiers. Academic Success: Ideal for revision, identifying frequently asked questions, and mastering complex derivations.
