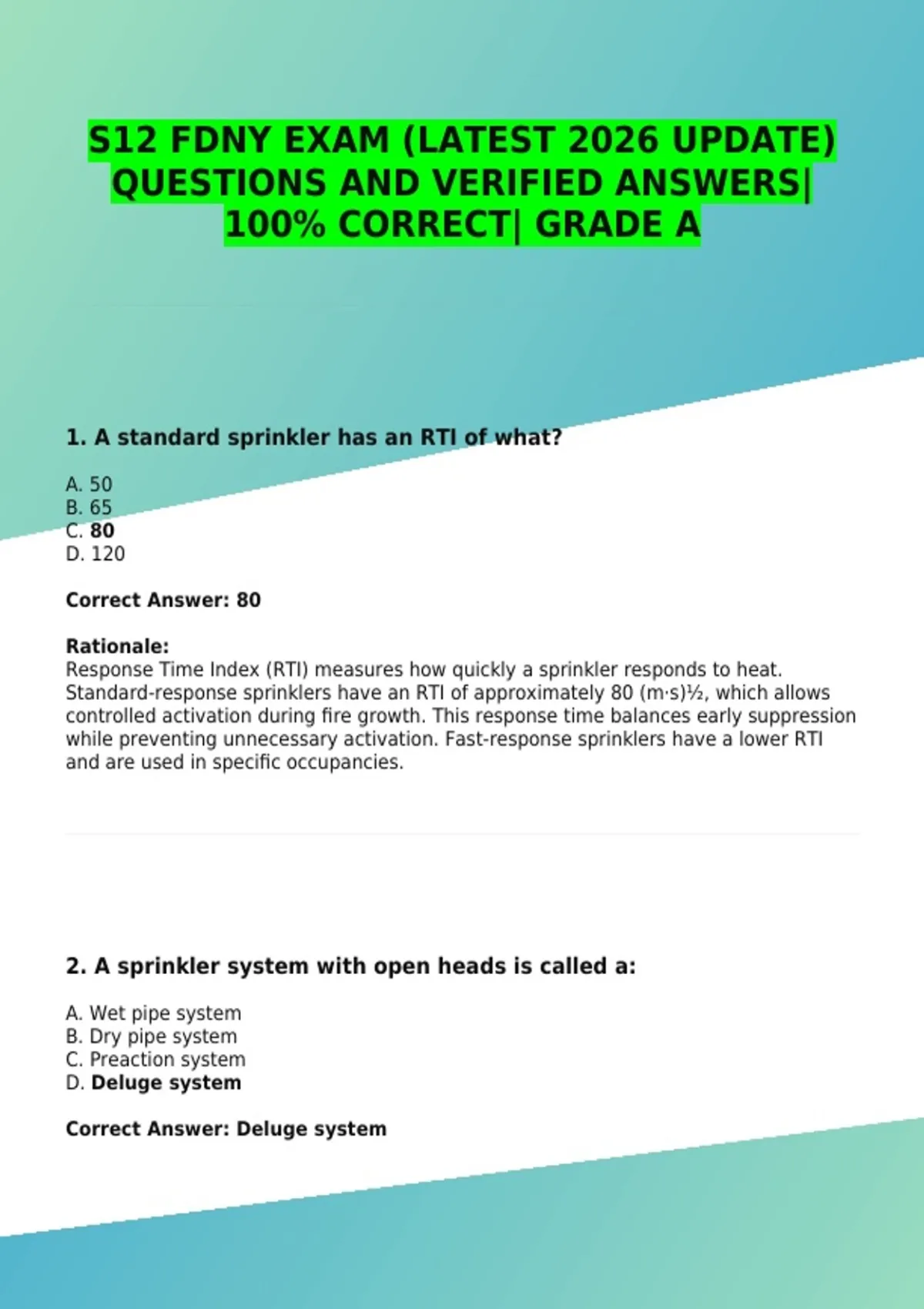

S12 FDNY EXAM (LATEST 2026 UPDATE)
QUESTIONS AND VERIFIED ANSWERS|
100% CORRECT| GRADE A
1. A standard sprinkler has an RTI of what?
A. 50
B. 65
C. 80
D. 120
Correct Answer: 80
Rationale:
Response Time Index (RTI) measures how quickly a sprinkler responds to heat.
Standard-response sprinklers have an RTI of approximately 80 (m·s)½, which allows
controlled activation during fire growth. This response time balances early suppression
while preventing unnecessary activation. Fast-response sprinklers have a lower RTI
and are used in specific occupancies.
2. A sprinkler system with open heads is called a:
A. Wet pipe system
B. Dry pipe system
C. Preaction system
D. Deluge system
Correct Answer: Deluge system
,Rationale:
Deluge systems use open sprinkler heads and release water simultaneously through
all heads when activated. They are controlled by a separate detection system and are
used in high-hazard occupancies. This design allows rapid flooding of an area. Wet and
dry systems rely on individual sprinkler activation.
3. The freezing point of antifreeze solutions is measured by which
device?
A. Thermometer
B. Manometer
C. Hydrometer or refractometer
D. Pressure gauge
Correct Answer: Hydrometer or refractometer
Rationale:
Hydrometers and refractometers measure solution concentration, which determines
freezing point. Antifreeze systems must maintain proper mixture ratios to prevent
freezing or flammability. NFPA 25 requires accurate testing using these instruments.
Thermometers alone cannot determine mixture concentration.
4. Local Law 58/2009 requires sprinkler and standpipe risers to be
painted which color?
A. Red
B. Green
C. Blue
D. Yellow
Correct Answer: Yellow
Rationale:
NYC Local Law 58 mandates yellow paint for sprinkler and standpipe risers for
,immediate identification. This improves firefighter visibility and response efficiency.
The requirement applies regardless of system type. Incorrect coloring can result in
violations.
5. The distance from the hanger assembly to the centerline of an
upright sprinkler head should be:
A. 1 inch
B. 3 inches
C. 6 inches
D. 12 inches
Correct Answer: 3 inches
Rationale:
NFPA 13 specifies a minimum clearance of 3 inches between hangers and sprinkler
deflectors. This ensures unobstructed water distribution. Improper spacing can impair
spray patterns. Compliance is mandatory during installation and inspection.
6. The automatic ball drip is located:
A. At the fire pump discharge
B. At the system riser base
C. Between the lower check valve and the fire department connection
D. At the inspector’s test valve
Correct Answer: Between the lower check valve and the fire department
connection
Rationale:
Ball drips drain trapped water from the FDC piping. Placement between the check
valve and FDC prevents freezing damage. This location allows gravity drainage when
pressure is removed. Improper placement compromises system reliability.
, 7. What is the purpose of a ball drip?
A. To regulate pressure
B. To increase flow
C. To prevent freezing in the line
D. To detect leaks
Correct Answer: To prevent freezing in the line
Rationale:
Ball drips remove residual water that could freeze in exposed piping. Freezing can
rupture pipes and disable the system. This device operates automatically without
manual intervention. It is especially critical in cold climates.
8. The buildup of foreign matter on a sprinkler head is called:
A. Corrosion
B. Scaling
C. Obstruction
D. Loading
Correct Answer: Loading
Rationale:
Loading refers to dust, grease, or paint accumulation on sprinklers. It delays heat
activation and alters spray patterns. NFPA 25 requires inspection and replacement of
loaded sprinklers. Cleaning is generally not permitted.
