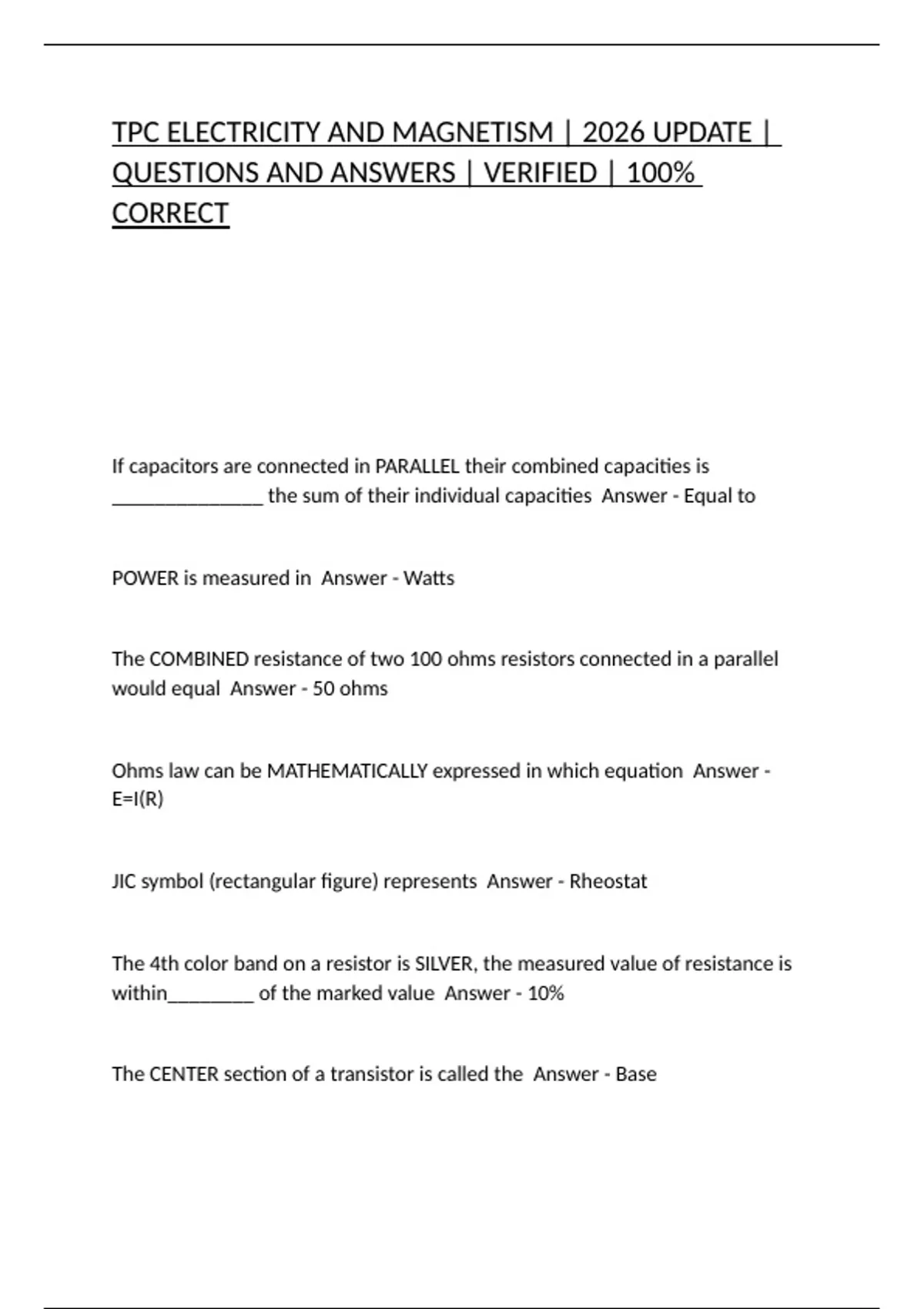

TPC ELECTRICITY AND MAGNETISM | 2026 UPDATE |
QUESTIONS AND ANSWERS | VERIFIED | 100%
CORRECT
If capacitors are connected in PARALLEL their combined capacities is
______________ the sum of their individual capacities Answer - Equal to
POWER is measured in Answer - Watts
The COMBINED resistance of two 100 ohms resistors connected in a parallel
would equal Answer - 50 ohms
Ohms law can be MATHEMATICALLY expressed in which equation Answer -
E=I(R)
JIC symbol (rectangular figure) represents Answer - Rheostat
The 4th color band on a resistor is SILVER, the measured value of resistance is
within________ of the marked value Answer - 10%
The CENTER section of a transistor is called the Answer - Base
, An optoisolator recites a LOW voltage signal on LED side of the device and
triggers a ________ voltage on the out-put Answer - Higher
If a GAP exists in an electric current, the circuit is said to be_______ Answer -
Open
a WATT is defined as a joule per ______ Answer - Second
AMPERES is the standard unit of measurement for _________ Answer -
Electric current
In order to dissipate the HEAT of high current loads a resistor must be
physically _________ Answer - Large
If the POTENTIAL DIFFERENCE across a resistor decreases to zero, the current
___________ Answer - Decreases to Zero
a CATHODE has a _________ charge Answer - Negative
When trying to solve a SERIES-PARALLEL problem you should first________
Answer - Divide the circuit into smaller parts
One COMPLETE cycle alternate current is generated by a ____________
rotation of a two pole operation Answer - 360 degree
The POTENTIAL DIFFERENCE between two points is measured in ________
Answer - Volts
