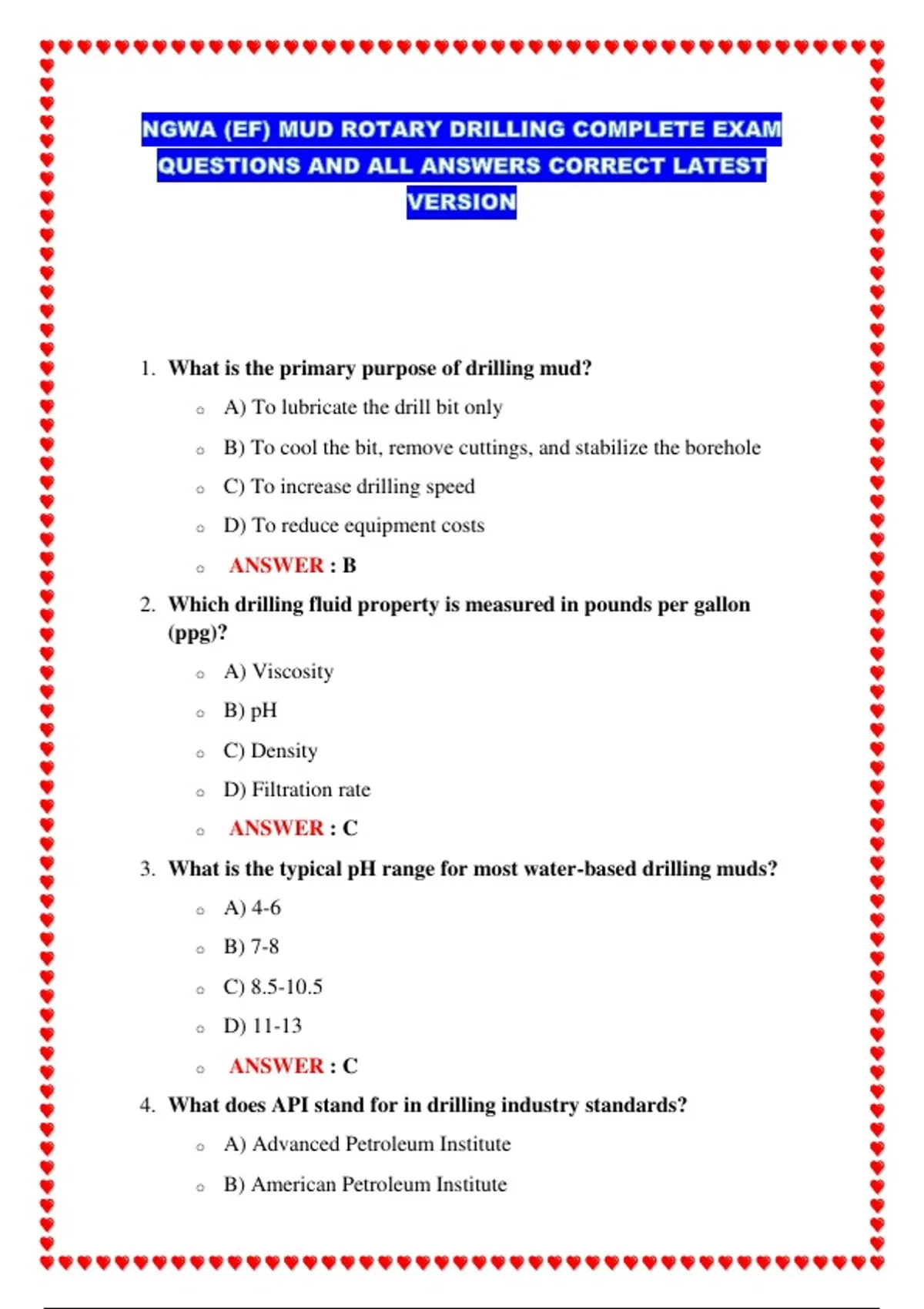

NGWA (EF) MUD ROTARY DRILLING COMPLETE EXAM QUESTIONS AND ALL ANSWERS CORRECT LATEST VERSION

1. What is the primary purpose of drilling mud?
o A) To lubricate the drill bit only
o B) To cool the bit, remove cuttings, and stabilize the borehole
o C) To increase drilling speed
o D) To reduce equipment costs
o ANSWER : B
2. Which drilling fluid property is measured in pounds per gallon
(ppg)?
o A) Viscosity
o B) pH
o C) Density
o D) Filtration rate
o ANSWER : C
3. What is the typical pH range for most water-based drilling muds?
o A) 4-6
o B) 7-8
o C) 8.5-10.5
o D) 11-13
o ANSWER : C
4. What does API stand for in drilling industry standards?
o A) Advanced Petroleum Institute
o B) American Petroleum Institute

, o C) Approved Performance Index
o D) Automatic Pressure Indicator
o ANSWER : B
5. Which additive is commonly used to increase mud weight?
o A) Bentonite
o B) Barite
o C) Soda ash
o D) Caustic soda
o ANSWER : B
6. What is the specific gravity of barite?
o A) 2.65
o B) 3.5
o C) 4.2
o D) 5.0
o ANSWER : C
7. What is gel strength in drilling mud?
o A) The ability to suspend cuttings when circulation stops
o B) The mud's resistance to flow
o C) The mud's weight
o D) The mud's temperature
o ANSWER : A
8. Which instrument measures mud viscosity?
o A) Mud balance
o B) Marsh funnel
o C) Retort kit
o D) pH meter
o ANSWER : B

,9. What is the purpose of adding bentonite to drilling mud?
o A) Increase weight
o B) Increase viscosity and gel strength
o C) Decrease pH
o D) Prevent corrosion
o ANSWER : B
10.What does LCM stand for in drilling?
o A) Low-Cost Material
o B) Lost Circulation Material
o C) Liquid Cement Mix
o D) Linear Cutting Method
o ANSWER : B
11.What is the purpose of a mud gun?
o A) To shoot mud at high pressure
o B) To agitate mud in the pit
o C) To measure mud density
o D) To clean the drill bit
o ANSWER : B
12.Which additive is used to reduce filtration loss?
o A) Caustic soda
o B) CMC (Carboxymethyl cellulose)
o C) Lime
o D) Salt
o ANSWER : B
13.What is the typical Marsh funnel viscosity for water?
o A) 20 seconds
o B) 26 seconds

, o C) 35 seconds
o D) 45 seconds
o ANSWER : B
14.What does YP stand for in mud properties?
o A) Yellow Point
o B) Yield Point
o C) Year Production
o D) Young's Parameter
o ANSWER : B
15.What is the purpose of a shale shaker?
o A) To measure mud weight
o B) To remove large cuttings from mud
o C) To mix drilling mud
o D) To store drilling mud
o ANSWER : B
16.Which material is commonly used as a weighting agent besides
barite?
o A) Sand
o B) Hematite
o C) Gravel
o D) Clay
o ANSWER : B
17.What is the purpose of adding polymers to drilling mud?
o A) To increase weight only
o B) To improve viscosity and filtration control
o C) To decrease pH
o D) To prevent freezing
o ANSWER : B
