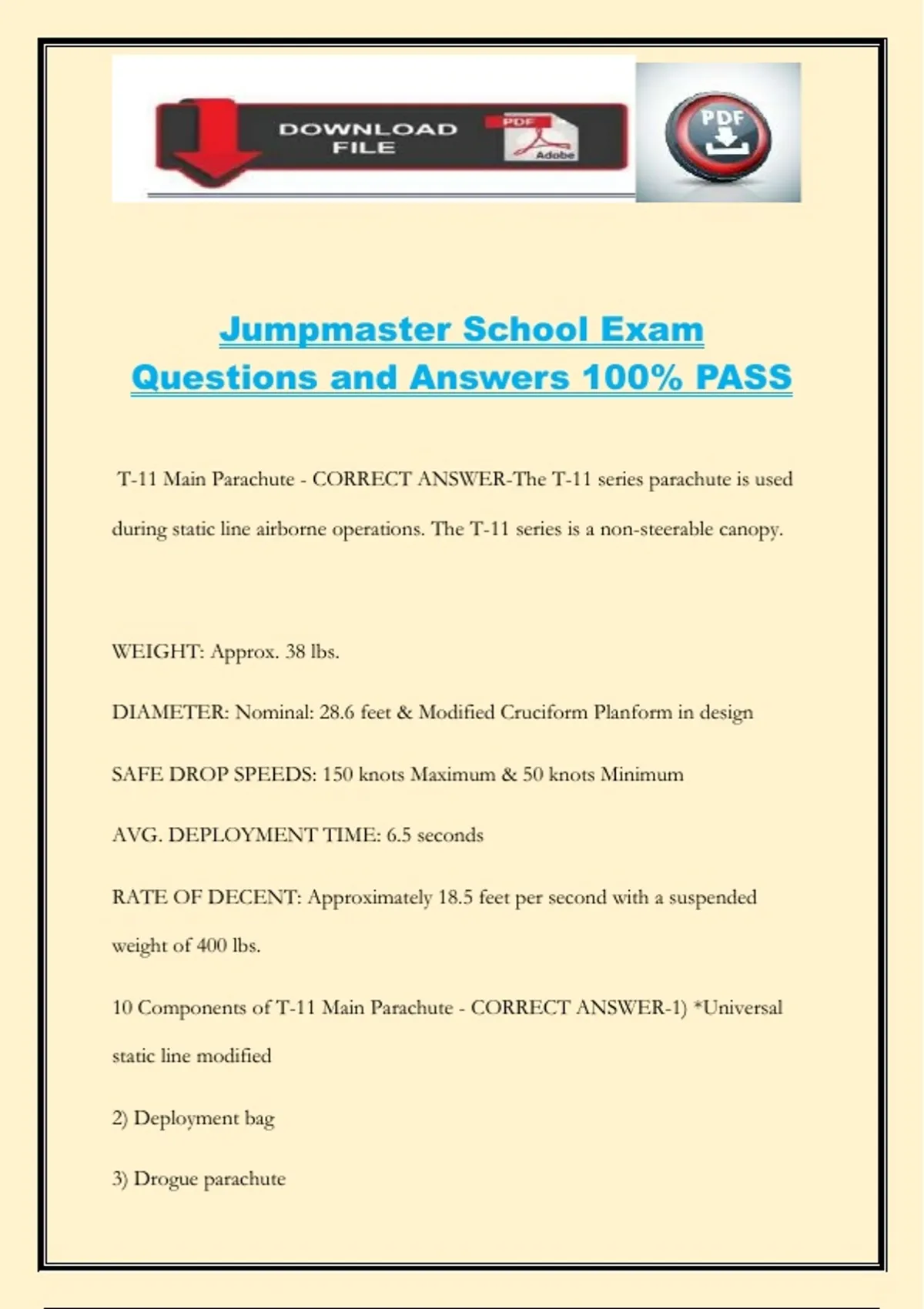

Jumpmaster School Exam
Questions and Answers 100% PASS
T-11 Main Parachute - CORRECT ANSWER-The T-11 series parachute is used
during static line airborne operations. The T-11 series is a non-steerable canopy.
WEIGHT: Approx. 38 lbs.
DIAMETER: Nominal: 28.6 feet & Modified Cruciform Planform in design
SAFE DROP SPEEDS: 150 knots Maximum & 50 knots Minimum
AVG. DEPLOYMENT TIME: 6.5 seconds
RATE OF DECENT: Approximately 18.5 feet per second with a suspended
weight of 400 lbs.
10 Components of T-11 Main Parachute - CORRECT ANSWER-1) *Universal
static line modified
2) Deployment bag
3) Drogue parachute
,4) Bridle assembly
5) Deployment sleeve
6) Canopy assembly
7) Slider
8) *Riser assembly
9) *Harness assembly
10) *Pack tray
Asterisk denotes only items seen or touched while performing JMPI on a properly
rigged jumper.
Universal Static Line Modified (T11) - CORRECT ANSWER-LENGTH: Approx.
15 feet
MATERIAL: ¾ inch, tube edge, type 6.6 nylon webbing, yellow in color
TENSILE STRENGTH" 4,000lbs
Universal Static Line Snap Hook (T11) - CORRECT ANSWER-The universal
static line snap hook is the point of attachment for the universal static line
modified to the aircraft's anchor line cable. It consists of a dual locking spring
opening gate with a Rivet pin located approximately center mass.
DIMENSIONS: Approx. 6 inches in length and approx. 2 inches wide
MATERIAL: Type 4140 steel
© 2026 Copyright. All Rights Reserved. This document is
protected by copyright law
, RATED CAPCITY: 1,750 lbs.
Main Curved Pin (T11) - CORRECT ANSWER-The main curved pin is located
approximately 12 feet from the universal static line snap hook.
LENGTH: Approx. 1.3 inches
MATERIAL: Stainless steel
Main Curved Pin Attaching Loop (T11) - CORRECT ANSWER-The main curved
pin attaching loop secures the main curved pin to the universal static line modified.
MATERIAL: 3/8 inch wide Type I preshrunk nylon webbing. It may be green or
white in color.
TENSILE STRENGTH:200 lbs.
Main Curved Pin Cover (T11) - CORRECT ANSWER-The main curved pin cover
protects the main curved pin and main curved pin attaching loop.
LENGTH: Approx. 6 inches
MATERIAL: Cotton duck material
Static Line Sleeve (T11) - CORRECT ANSWER-The static line sleeve prevents
nylon-to-nylon contact between the universal static line modified and the pack tray.
