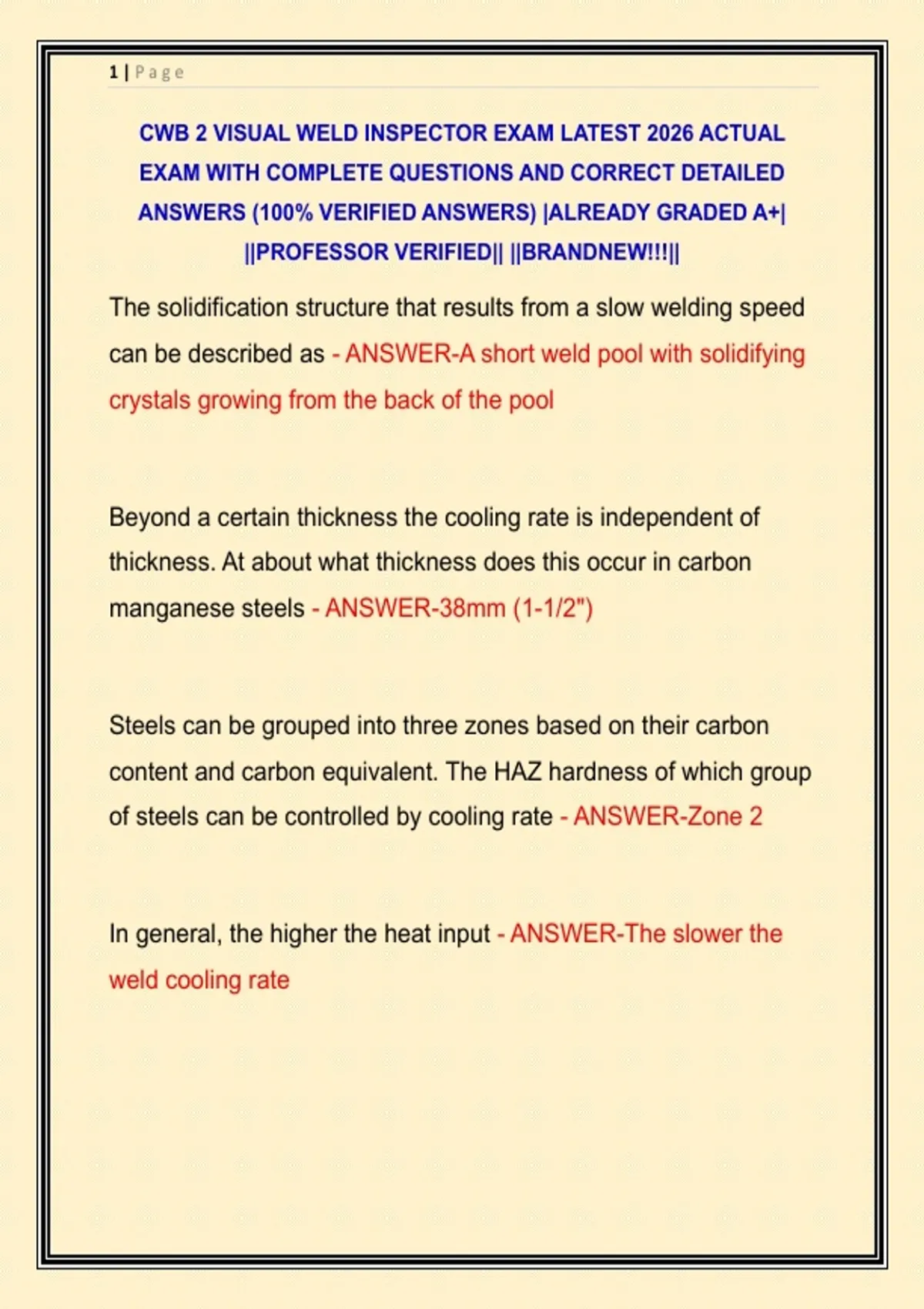

1|Page
CWB 2 VISUAL WELD INSPECTOR EXAM LATEST 2026 ACTUAL
EXAM WITH COMPLETE QUESTIONS AND CORRECT DETAILED
ANSWERS (100% VERIFIED ANSWERS) |ALREADY GRADED A+|
||PROFESSOR VERIFIED|| ||BRANDNEW!!!||
The solidification structure that results from a slow welding speed
can be described as - ANSWER-A short weld pool with solidifying
crystals growing from the back of the pool
Beyond a certain thickness the cooling rate is independent of
thickness. At about what thickness does this occur in carbon
manganese steels - ANSWER-38mm (1-1/2")
Steels can be grouped into three zones based on their carbon
content and carbon equivalent. The HAZ hardness of which group
of steels can be controlled by cooling rate - ANSWER-Zone 2
In general, the higher the heat input - ANSWER-The slower the
weld cooling rate
,2|Page
Steels can be grouped into three zones based on their carbon
content and carbon equivalent. Steels in which Zone are not
prone to hydrogen cracking - ANSWER-Zone 1
Heat input from welding - ANSWER-determines the amount of
component distortion during phase transformations
Hydrogen cracking in carbon manganese steels - ANSWER-Can
occur in many areas of the welds
An Arc of 300 amps and 30 volts will produce - ANSWER-9000
joules per second (300 x 30)
The peak temperature within the heat affected zone changes with
distance from the fusion line. What peak temperature is exceeded
in partially transformed region - ANSWER-723
According to CSA W59, a damaged container of low alloy SMAW
electrodes must be - ANSWER-re-baked at temperatures
between 230 C and 260 C
,3|Page
During arc welding there is a zone adjacent to the weld metal that
reaches high temperatures but does not melt. What is the name
of this region - ANSWER-Heat affected zone
Not all the heat energy produced during welding will enter the
plate as heat energy. What is this phenomenon known as -
ANSWER-the efficiency
With Manual welding the technique will influence the energy input.
Which technique involves higher energy input - ANSWER-
Weaving techniques
Considering that increasing the heat input will reduce the cooling
rate, is the following statement true or false: - ANSWER-For thick
plates, cooling rate is inversely proportional to the heat input
The metallurgical changes that occur in the HAZ will be
dependent on the peak - ANSWER-The peak temperature
reached
, 4|Page
Regions that are close to the fusion boundary can experience
temperatures sufficiently high enough that growth of the (Blank)
occurs - ANSWER-Austenitic Grain
one feature of hydrogen cracking is that it only occurs when the
weld and heat affected zone are at high temperatures - ANSWER-
FALSE
Welding over a gap in backing bar of a complete penetration
groove weld may result in a transverse crack in the weld metal -
ANSWER-TRUE
in the heat affected zone of a weld in carbon steel, fast cooling
rates will form a hard - ANSWER-Martensite Structure
Which of the following types of steel is least susceptible to
hydrogen cracking in normal circumstances - ANSWER-Low
strength, low hardness steels
