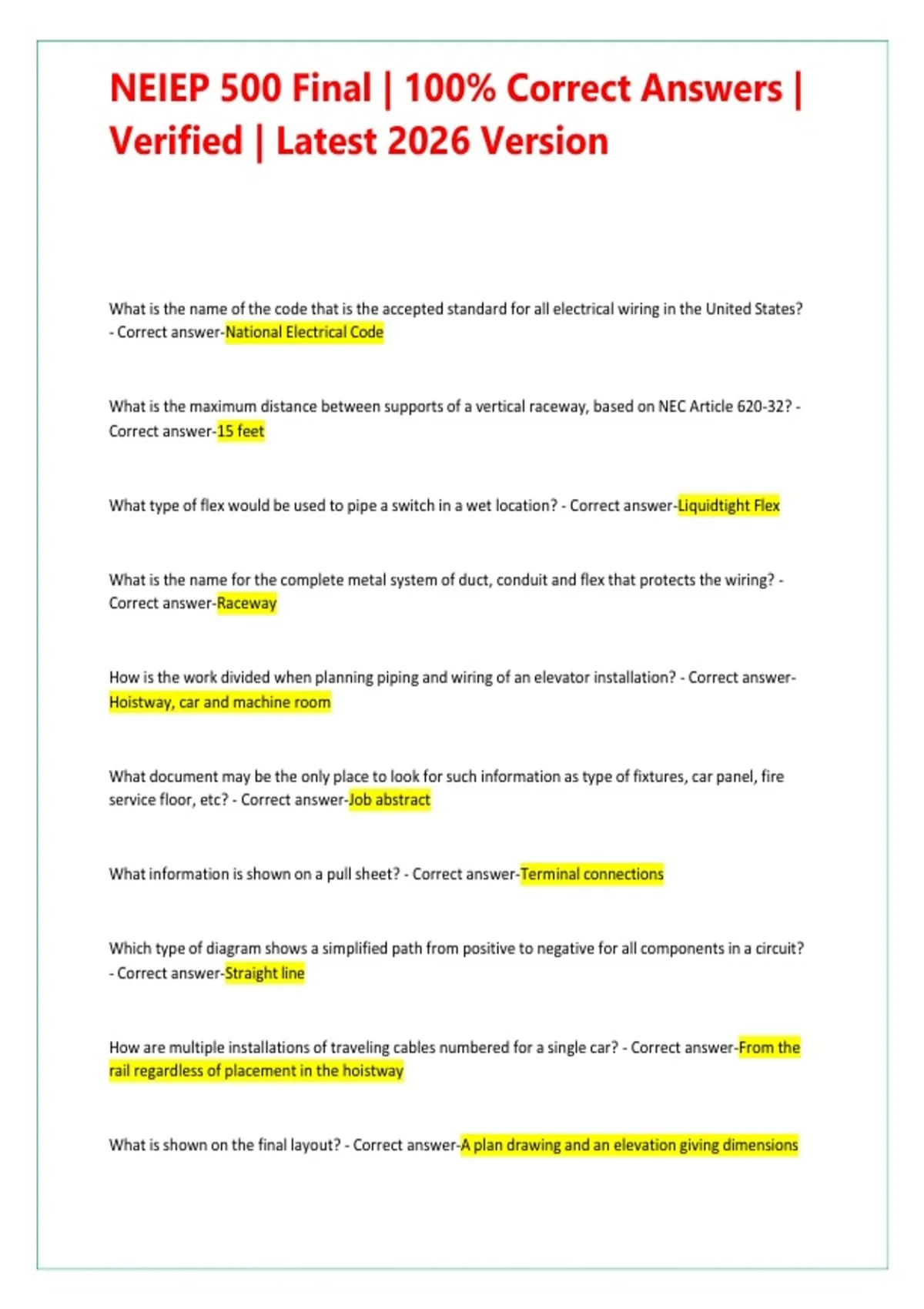

NEIEP 500 Final | 100% Correct Answers |
Verified | Latest 2026 Version
What is the name of the code that is the accepted standard for all electrical wiring in the United States?
- Correct answer-National Electrical Code
What is the maximum distance between supports of a vertical raceway, based on NEC Article 620-32? -
Correct answer-15 feet
What type of flex would be used to pipe a switch in a wet location? - Correct answer-Liquidtight Flex
What is the name for the complete metal system of duct, conduit and flex that protects the wiring? -
Correct answer-Raceway
How is the work divided when planning piping and wiring of an elevator installation? - Correct answer-
Hoistway, car and machine room
What document may be the only place to look for such information as type of fixtures, car panel, fire
service floor, etc? - Correct answer-Job abstract
What information is shown on a pull sheet? - Correct answer-Terminal connections
Which type of diagram shows a simplified path from positive to negative for all components in a circuit?
- Correct answer-Straight line
How are multiple installations of traveling cables numbered for a single car? - Correct answer-From the
rail regardless of placement in the hoistway
What is shown on the final layout? - Correct answer-A plan drawing and an elevation giving dimensions
, NEIEP 500 Final | 100% Correct Answers |
Verified | Latest 2026 Version
In the circuit shown, which is the common wired for the second level? - Correct answer-DC+
How are wire sizes larger than 4/0 measured? - Correct answer-In circular mils
What is the abbreviated term for current carry8ing capacity? - Correct answer-Ampacity
What is the minimum size wired for lighting circuits in an elevator installation? - Correct answer-#14
What is the special about wire used for the interlock circuit? - Correct answer-It must be rated for 200
degrees C
What is the smallest wire that is permitted in an elevator installation? - Correct answer-#24
When bending conduit, what is the maximum number of decrees of bend allowed between access
points? - Correct answer-90 degrees
What is the reference point on the thin-wall bender for the finish line of a back to back bend? - Correct
answer-The star point
What is the total in degrees of the bends in a three-bend saddle? - Correct answer-90 degrees
You have 10' length of ¾" rigid conduit which needs to have a 90 degree bend with a 16" stub height.
With a 7" take- up, what is the distance from the end of the pipe to the mark where the hickey arrow is
aligned? - Correct answer-9 inches
21 - Correct answer-Size of conduit is determined by the inside diameter
22 - Correct answer-NEC states wire used in elevators must have flame retardant insulation
