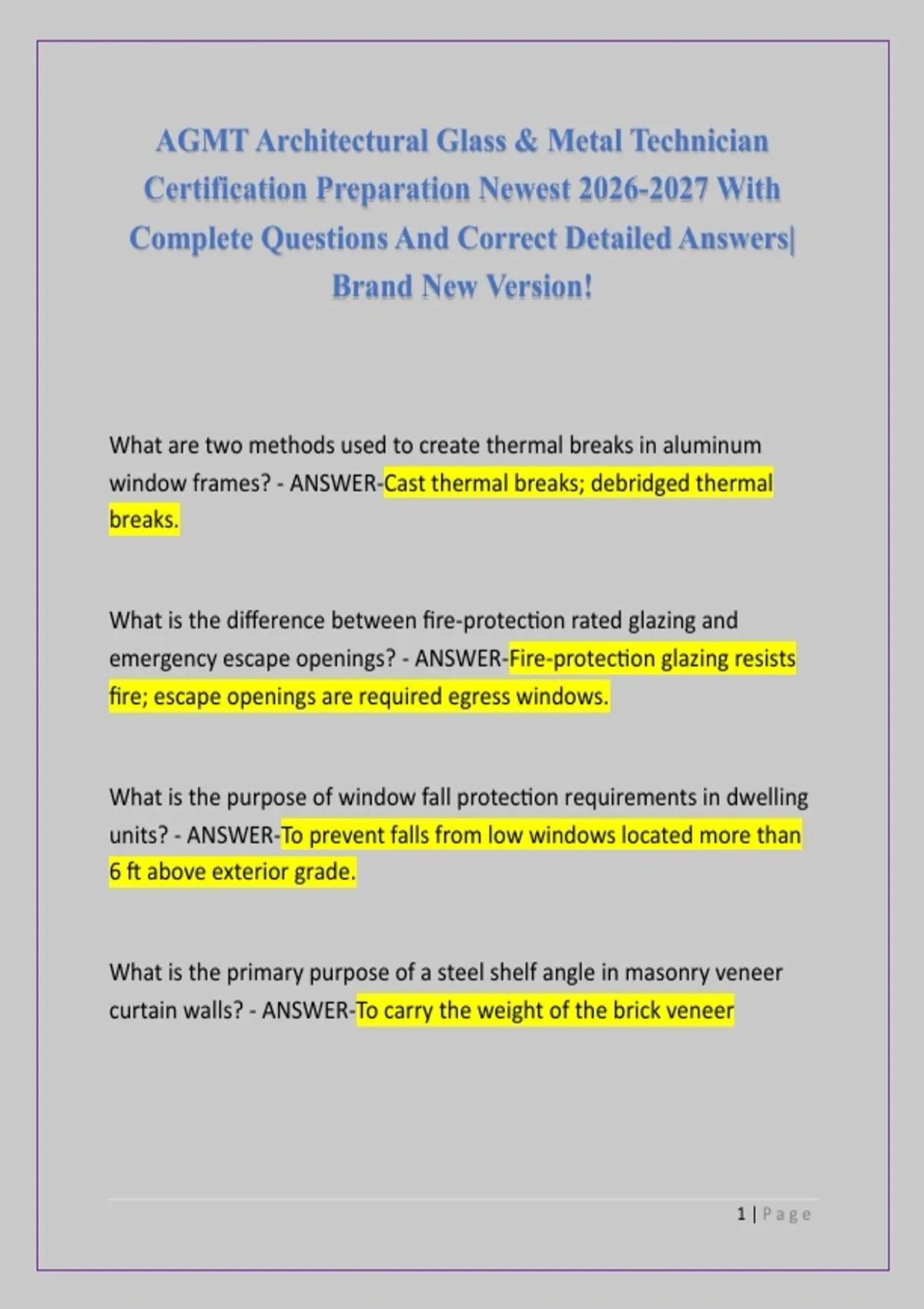

AGMT Architectural Glass & Metal Technician
Certification Preparation Newest 2026-2027 With
Complete Questions And Correct Detailed Answers|
Brand New Version!
What are two methods used to create thermal breaks in aluminum
window frames? - ANSWER-Cast thermal breaks; debridged thermal
breaks.
What is the difference between fire-protection rated glazing and
emergency escape openings? - ANSWER-Fire-protection glazing resists
fire; escape openings are required egress windows.
What is the purpose of window fall protection requirements in dwelling
units? - ANSWER-To prevent falls from low windows located more than
6 ft above exterior grade.
What is the primary purpose of a steel shelf angle in masonry veneer
curtain walls? - ANSWER-To carry the weight of the brick veneer
1|Page
,What is the typical increment for construction sequence continuation in
a masonry veneer curtain wall with CMU backup? - ANSWER-3-course,
16-inch increments
What is the primary purpose of horizontal expansion joints in brick
veneer curtain walls? - ANSWER-To allow concrete frame
deflection/creep and brick expansion without introducing stress
In a masonry veneer wall with steel stud backup, what carries the
weight of the veneer? - ANSWER-The HSS support
What structural function do the metal studs serve in a steel stud backup
system for masonry veneer? - ANSWER-Resist wind loads transferred
through veneer ties
What is the purpose of smoke seal/fire safing in masonry veneer curtain
walls? - ANSWER-To protect against free passage of fire and smoke
between floors
How does a prefabricated brick curtain wall system differ from
traditional brick veneer construction? - ANSWER-It is factory-fabricated
and manages water as a barrier wall
2|Page
,What materials are typically used for the support grid in grid-supported
stone panel systems? - ANSWER-Steel verticals and aluminum
horizontals
What type of cladding system is used when stone panels are supported
on extruded aluminum channels? - ANSWER-Drained cladding system
How does monolithic stone cladding manage water intrusion? -
ANSWER-As a barrier wall system - no water expected to pass through
What type of wall system is a precast concrete sandwich panel? -
ANSWER-Drained cladding system
What is a key feature of precast concrete panel connections after
installation? - ANSWER-They are welded after final alignment to prevent
slippage
What does GFRC stand for? - ANSWER-Glass Fiber Reinforced Concrete
How is GFRC typically applied to panels? - ANSWER-Sprayed over light
gauge metal framed panels
3|Page
, What is a major advantage of GFRC panels compared to traditional
precast concrete? - ANSWER-Thinner, lighter panels that can be molded
into special shapes
What does EIFS stand for? - ANSWER-Exterior Insulation and Finish
System
What is the basic construction of an EIFS system? - ANSWER-Foam
panels adhered to substrate with reinforced polymer plaster coats
What improvement does water-managed EIFS provide over earlier
systems? - ANSWER-Adds water-resistive barrier and drainage plane to
prevent entrapped moisture
What is a common application for EIFS recladding? - ANSWER-
Improving thermal efficiency and renewing appearance of existing
buildings
What material serves as the basecoat in EIFS systems? - ANSWER-
Reinforced polymer plaster
Do steel shelf angles in masonry veneer curtain walls carry the weight
of the brick veneer? - ANSWER-True
4|Page
