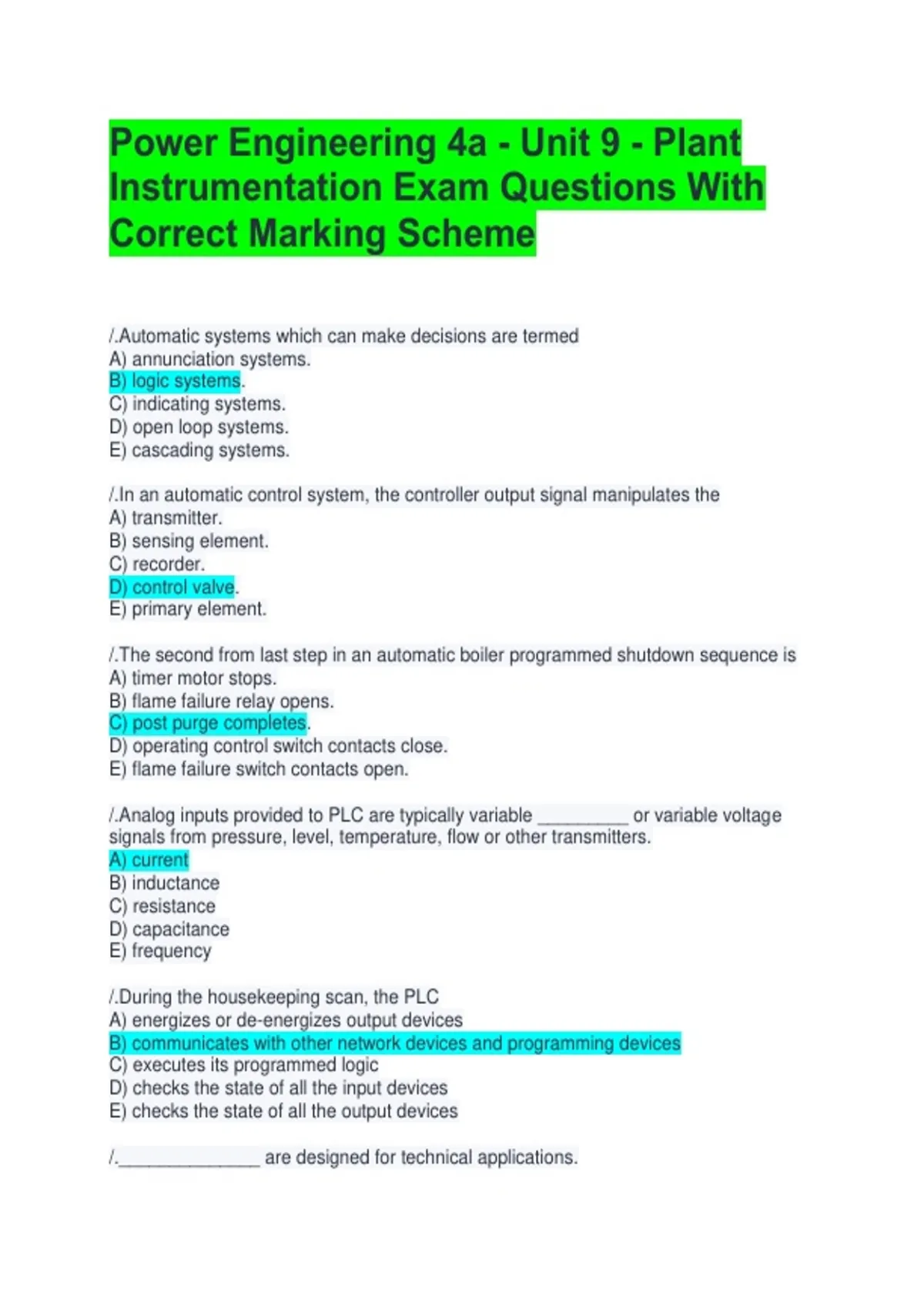

Power Engineering 4a - Unit 9 - Plant
Instrumentation Exam Questions With
Correct Marking Scheme
/.Automatic systems which can make decisions are termed
A) annunciation systems.
B) logic systems.
C) indicating systems.
D) open loop systems.
E) cascading systems.
/.In an automatic control system, the controller output signal manipulates the
A) transmitter.
B) sensing element.
C) recorder.
D) control valve.
E) primary element.
/.The second from last step in an automatic boiler programmed shutdown sequence is
A) timer motor stops.
B) flame failure relay opens.
C) post purge completes.
D) operating control switch contacts close.
E) flame failure switch contacts open.
/.Analog inputs provided to PLC are typically variable _________ or variable voltage
signals from pressure, level, temperature, flow or other transmitters.
A) current
B) inductance
C) resistance
D) capacitance
E) frequency
/.During the housekeeping scan, the PLC
A) energizes or de-energizes output devices
B) communicates with other network devices and programming devices
C) executes its programmed logic
D) checks the state of all the input devices
E) checks the state of all the output devices
/.______________ are designed for technical applications.
,A) Workstations
B) Personal computers
C) Controllers
D) Servers
E) Technical laptops
/.The type of air damper to provide with a much more precise air flow control, especially
at small openings, is
A) parallel blade damper
B) opposed blade damper
C) variable outlet vane damper
D) variable inlet vane damper
/.The Chromel-Alumel (Type K) thermocouple can be used in the temperature range of
A) -184 oC to 371oC
B) -18oC to 760oC
C) -185oC to 1260oC
D) 538oC to 1482oC
E) 200oC to 3000oC
/.One common mass flow meter is called
A) Weir meter
B) Coriolis meter
C) Variable area meter
D) Doppler meter
/.With reference to the controller design, CPU stands for
A) central processing unit
B) controlled programmable utility
C) combined power utility
D) controlled personal unit
/.A Bourdon tube is often in the shape of a spiral so that
A) its final output has less travel.
B) gears can be used for final output.
C) higher pressures can be sensed.
D) more power and travel of the free end occurs.
E) its sensitivity will be decreased.
/.Smart transmitters cannot:
A) Receive multiple inputs and outputs
B) Communicate and change configuration details
C) Change the power source(s)
D) Signal alarms and error conditions
/.In a power plant, networking of computers is advantageous because
, A) operators can use any computer to regulate the process.
B) shift operators can communicate with each other by e-mail.
C) computing power is distributed and the loss of one computer is less serious.
D) complete control will be maintained during a power failure.
E) viruses may be easily eradicated throughout the system.
/.Electronic control systems do NOT use
A) Sensors and transmitters
B) Controllers
C) Actuators, relays, control valves, and dampers
D) Indicating and interfacing devices
E) 4 to 20 mV recording sensors
/.Differential and incremental backups take less time and storage space than full
backups.
A) True
B) False
/.A strain gauge is commonly used to measure
A) corrosion of pipe walls.
B) pressures or forces on column.
C) levels in oil tanks.
D) the densities of materials.
E) the tension given by a compressive load.
/.Analog signals vary over a range of values. Analog input signals must be _________
to digital format before they can be processed by computers. When final control
elements are analog, the digital control output signals from process computers must be
converted to _________ signals.
A) analog - positive
B) analog - negative
C) converted - analog
D) digital - positive
E) digital - negative
/.Immersion thermostat (Aquastat) is used to sense and control the temperature of
A) solids
B) non-homogeneous substances
C) vapors
D) gases
E) liquids
/.In computer terminology, HDD means
A) hard documented drive
B) home directed device
C) home disk drive
Instrumentation Exam Questions With
Correct Marking Scheme
/.Automatic systems which can make decisions are termed
A) annunciation systems.
B) logic systems.
C) indicating systems.
D) open loop systems.
E) cascading systems.
/.In an automatic control system, the controller output signal manipulates the
A) transmitter.
B) sensing element.
C) recorder.
D) control valve.
E) primary element.
/.The second from last step in an automatic boiler programmed shutdown sequence is
A) timer motor stops.
B) flame failure relay opens.
C) post purge completes.
D) operating control switch contacts close.
E) flame failure switch contacts open.
/.Analog inputs provided to PLC are typically variable _________ or variable voltage
signals from pressure, level, temperature, flow or other transmitters.
A) current
B) inductance
C) resistance
D) capacitance
E) frequency
/.During the housekeeping scan, the PLC
A) energizes or de-energizes output devices
B) communicates with other network devices and programming devices
C) executes its programmed logic
D) checks the state of all the input devices
E) checks the state of all the output devices
/.______________ are designed for technical applications.
,A) Workstations
B) Personal computers
C) Controllers
D) Servers
E) Technical laptops
/.The type of air damper to provide with a much more precise air flow control, especially
at small openings, is
A) parallel blade damper
B) opposed blade damper
C) variable outlet vane damper
D) variable inlet vane damper
/.The Chromel-Alumel (Type K) thermocouple can be used in the temperature range of
A) -184 oC to 371oC
B) -18oC to 760oC
C) -185oC to 1260oC
D) 538oC to 1482oC
E) 200oC to 3000oC
/.One common mass flow meter is called
A) Weir meter
B) Coriolis meter
C) Variable area meter
D) Doppler meter
/.With reference to the controller design, CPU stands for
A) central processing unit
B) controlled programmable utility
C) combined power utility
D) controlled personal unit
/.A Bourdon tube is often in the shape of a spiral so that
A) its final output has less travel.
B) gears can be used for final output.
C) higher pressures can be sensed.
D) more power and travel of the free end occurs.
E) its sensitivity will be decreased.
/.Smart transmitters cannot:
A) Receive multiple inputs and outputs
B) Communicate and change configuration details
C) Change the power source(s)
D) Signal alarms and error conditions
/.In a power plant, networking of computers is advantageous because
, A) operators can use any computer to regulate the process.
B) shift operators can communicate with each other by e-mail.
C) computing power is distributed and the loss of one computer is less serious.
D) complete control will be maintained during a power failure.
E) viruses may be easily eradicated throughout the system.
/.Electronic control systems do NOT use
A) Sensors and transmitters
B) Controllers
C) Actuators, relays, control valves, and dampers
D) Indicating and interfacing devices
E) 4 to 20 mV recording sensors
/.Differential and incremental backups take less time and storage space than full
backups.
A) True
B) False
/.A strain gauge is commonly used to measure
A) corrosion of pipe walls.
B) pressures or forces on column.
C) levels in oil tanks.
D) the densities of materials.
E) the tension given by a compressive load.
/.Analog signals vary over a range of values. Analog input signals must be _________
to digital format before they can be processed by computers. When final control
elements are analog, the digital control output signals from process computers must be
converted to _________ signals.
A) analog - positive
B) analog - negative
C) converted - analog
D) digital - positive
E) digital - negative
/.Immersion thermostat (Aquastat) is used to sense and control the temperature of
A) solids
B) non-homogeneous substances
C) vapors
D) gases
E) liquids
/.In computer terminology, HDD means
A) hard documented drive
B) home directed device
C) home disk drive
