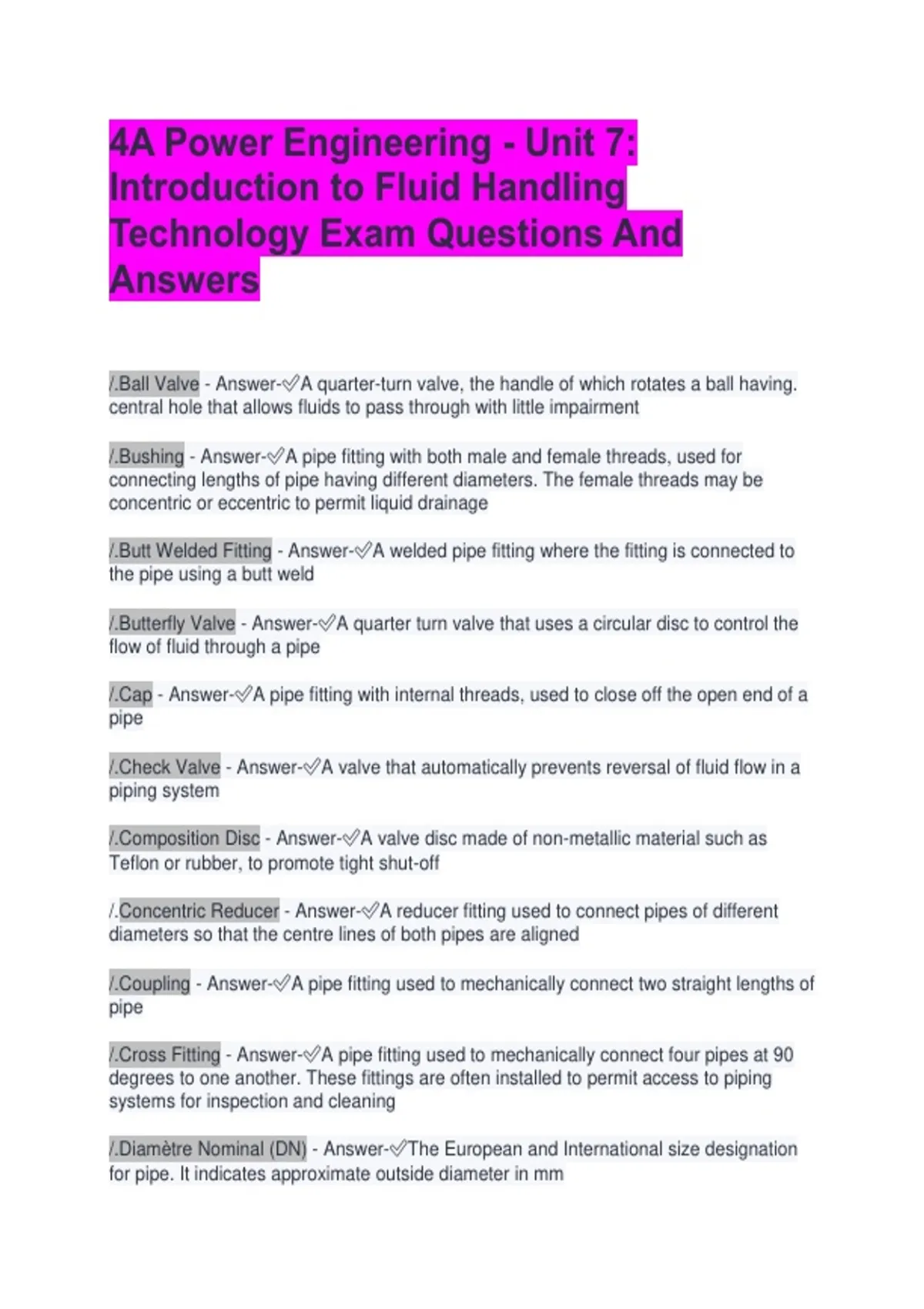

4A Power Engineering - Unit 7:
Introduction to Fluid Handling
Technology Exam Questions And
Answers
/.Ball Valve - Answer-✅A quarter-turn valve, the handle of which rotates a ball having.
central hole that allows fluids to pass through with little impairment
/.Bushing - Answer-✅A pipe fitting with both male and female threads, used for
connecting lengths of pipe having different diameters. The female threads may be
concentric or eccentric to permit liquid drainage
/.Butt Welded Fitting - Answer-✅A welded pipe fitting where the fitting is connected to
the pipe using a butt weld
/.Butterfly Valve - Answer-✅A quarter turn valve that uses a circular disc to control the
flow of fluid through a pipe
/.Cap - Answer-✅A pipe fitting with internal threads, used to close off the open end of a
pipe
/.Check Valve - Answer-✅A valve that automatically prevents reversal of fluid flow in a
piping system
/.Composition Disc - Answer-✅A valve disc made of non-metallic material such as
Teflon or rubber, to promote tight shut-off
/.Concentric Reducer - Answer-✅A reducer fitting used to connect pipes of different
diameters so that the centre lines of both pipes are aligned
/.Coupling - Answer-✅A pipe fitting used to mechanically connect two straight lengths of
pipe
/.Cross Fitting - Answer-✅A pipe fitting used to mechanically connect four pipes at 90
degrees to one another. These fittings are often installed to permit access to piping
systems for inspection and cleaning
/.Diamètre Nominal (DN) - Answer-✅The European and International size designation
for pipe. It indicates approximate outside diameter in mm
,/.Displacement Cutter - Answer-✅A device with a cutting wheel and guide rollers used
to cut steel or non-ferrous pipe or tubing, in sizes up to 12 inch NPS
/.Eccentric Reducer - Answer-✅A reducer fitting used to connect pipes of different
diameters so that one edge of both pipes is aligned. They permit fluid, such as steam
condensate, to drain from a pipe unimpeded
/.Elbow - Answer-✅A pipe fitting used to make angle turns in piping. Common angles
are 90 and 45
/.Expansion Bend - Answer-✅A U-shaped bend in a pipe that accommodates changes
in piping system length caused by thermal expansion or contraction
/.Expansion Joint - Answer-✅A device installed in a piping system that accommodates
axial, angular, or lateral displacement of pipe, caused by changes in temperature
/.Flanged Connection - Answer-✅A pipe connection using two flat plates which are
bolted together face to face, usually with a gasket between the two faces
/.Flat Ring Gasket - Answer-✅A gasket that covers only the face of a flange
/.Full-Face Gasket - Answer-✅A gasket that covers the entire face of a flange. This type
of gasket has holes to allow flange bolts to pass through
/.Gate Valve - Answer-✅A valve with a sliding plate that, when completely open,
provides minimal flow restriction, and when completely closed provides tight shut-off.
They are not designed for throttling or controlling flow
/.Globe Valve - Answer-✅A valve with a movable plug and a stationary seat. Used to
control fluid flow
/.Mechanical Trap - Answer-✅A steam trap that operates on the difference between the
specific gravities of condensate and steam
/.Needle Valve - Answer-✅A globe valve with a small-diameter port and a needle-
shaped plug, designed to permit precise flow regulation
/.Nipple - Answer-✅A short threaded piece of pipe for making connections between
valves and other piping fittings
/.Nominal Pipe Size (NPS) - Answer-✅"An approximate indication of pipe diameter.
- Up to and including DN 300 (NPS 12), the number represents the nominal ouside
diameter of the pipe
,- For DN 350 (NPS 14) and larger pipe, the number represents the actual outside
diameter of the pipe."
/.Non-Return Stop Valve - Answer-✅A type of globe valve with a plug that moves
independently of the valve spindle when the valve is in the open position, permitting it to
act as a check valve if fluid reversal occurs. This valve is commonly used on boiler main
steam outlets
/.Pipe Die - Answer-✅A cutting tool used to create the male threads on a pipe
/.Pipe Reamer - Answer-✅A tool used to remove the internal burr left by a displacement
cutter
/.Pipe Tap - Answer-✅A cutting tool used to cut female threads for pipe fittings
/.Plug Fitting - Answer-✅A pipe fitting with external threads, used to close off an unused
opening in a pipe fitting
/.Plug Valve - Answer-✅A lubricated quarter-turn valve containing a tapered conical
flow element, that when rotated regulates the flow of fluid through the valve. These
valves are common in natural gas service
/.Pressure Reducing Station (PRS) - Answer-✅A piping system comprised of a number
of components, that receives a high pressure process fluid (such as steam) and lowers
the pressure so that the process fluid is suitable for using with downstream equipment.
The main components include a pressure reducing valve (PRV), pressure gauges,
isolating valves, a bypass valve, a strainer, unions, a sensing line downstream of the
PRV, and a safety valve. In stream service, the piping is equipped with steam traps
/.Pressure Reducing Valves (PRV) - Answer-✅A device that lowers the pressure of a
process fluid to a desired downstream pressure setpoint, regardless of fluctuations in
upstream pressure or flow conditions
/.Reducer Fitting - Answer-✅A device used to connect pipes of different diameters
/.Return Bends - Answer-✅A pipe fitting used for reversing direction of a pipe run by
180 degrees
/.Ring Joint Gasket - Answer-✅A gasket that fits in a grooved flange face
/.Schedule Number - Answer-✅A number that represents pipe wall thickness
/.Socket Welded Fitting - Answer-✅A fitting, such as a valve, fitting or flange, that has a
recess to permit insertion of a pipe prior to it being welded into place
, /.Steam Seperator - Answer-✅A device installed in a stream line to remove moisture
droplets and other suspended impurities from the steam, by forcing the steam to change
direction
/.Steam Trap - Answer-✅An automatic valve that drains condensate from a steam-
containing enclosure while remaining tight to live steam, or if necessary, allowing steam
to flow at a controlled or adjusted rate. Most will also pass non-condensable gases
which remaining tight to live steam. ANSI/FCI 69-1-1989
/.Tee - Answer-✅Pipe fitting used for making a branch line connection at 90 degrees.
Reducing tees may have different sized openings for reducing the size of the pipes for
the inlet, branch, or outlet of the tee
/.Thermodynamic Trap - Answer-✅A steam trap that operates based on the difference
between the heat energy of the steam and that of the condensate
/.Thermostatic Trap - Answer-✅A steam trap that operates based on the difference
between the temperature of the steam and that of the condensate
/.Union - Answer-✅A pipe fitting with two female threaded ends and a threaded
connector nut in the middle. Used to allow easy assembly and disassembly of piping
connections
/.Valve - Answer-✅A device for regulating the flow of gases, liquids, and slurries
through piping systems, or for isolating sections of piping systems
/.Valve Trim - Answer-✅The parts of a valve that contact the fluid in a piping system. It
usually consists of a valve seat, valve disc or gate, valve stem, and guide bushings
/.Van Stone Flange - Answer-✅A flange that fits loosely on the end of a pipe, so that
sections of pipe can be more easily aligned during assembly
/.Water Hammer - Answer-✅Loud, violent shocks produced within a piping system.
Typically caused by hydraulic shock, thermal shock, flow shock or differential shock
/.Wire Drawing - Answer-✅Damage to the surface of a valve seat, gate, or plug, caused
by longterm throttling of process fluid, that prevents shut valves from completely
stopping fluid flow. It has the appearance of "cuts" on the valve trim surface
/.Y-Bend Fitting - Answer-✅Pipe fitting used for making branch line connections at 45
degrees
Introduction to Fluid Handling
Technology Exam Questions And
Answers
/.Ball Valve - Answer-✅A quarter-turn valve, the handle of which rotates a ball having.
central hole that allows fluids to pass through with little impairment
/.Bushing - Answer-✅A pipe fitting with both male and female threads, used for
connecting lengths of pipe having different diameters. The female threads may be
concentric or eccentric to permit liquid drainage
/.Butt Welded Fitting - Answer-✅A welded pipe fitting where the fitting is connected to
the pipe using a butt weld
/.Butterfly Valve - Answer-✅A quarter turn valve that uses a circular disc to control the
flow of fluid through a pipe
/.Cap - Answer-✅A pipe fitting with internal threads, used to close off the open end of a
pipe
/.Check Valve - Answer-✅A valve that automatically prevents reversal of fluid flow in a
piping system
/.Composition Disc - Answer-✅A valve disc made of non-metallic material such as
Teflon or rubber, to promote tight shut-off
/.Concentric Reducer - Answer-✅A reducer fitting used to connect pipes of different
diameters so that the centre lines of both pipes are aligned
/.Coupling - Answer-✅A pipe fitting used to mechanically connect two straight lengths of
pipe
/.Cross Fitting - Answer-✅A pipe fitting used to mechanically connect four pipes at 90
degrees to one another. These fittings are often installed to permit access to piping
systems for inspection and cleaning
/.Diamètre Nominal (DN) - Answer-✅The European and International size designation
for pipe. It indicates approximate outside diameter in mm
,/.Displacement Cutter - Answer-✅A device with a cutting wheel and guide rollers used
to cut steel or non-ferrous pipe or tubing, in sizes up to 12 inch NPS
/.Eccentric Reducer - Answer-✅A reducer fitting used to connect pipes of different
diameters so that one edge of both pipes is aligned. They permit fluid, such as steam
condensate, to drain from a pipe unimpeded
/.Elbow - Answer-✅A pipe fitting used to make angle turns in piping. Common angles
are 90 and 45
/.Expansion Bend - Answer-✅A U-shaped bend in a pipe that accommodates changes
in piping system length caused by thermal expansion or contraction
/.Expansion Joint - Answer-✅A device installed in a piping system that accommodates
axial, angular, or lateral displacement of pipe, caused by changes in temperature
/.Flanged Connection - Answer-✅A pipe connection using two flat plates which are
bolted together face to face, usually with a gasket between the two faces
/.Flat Ring Gasket - Answer-✅A gasket that covers only the face of a flange
/.Full-Face Gasket - Answer-✅A gasket that covers the entire face of a flange. This type
of gasket has holes to allow flange bolts to pass through
/.Gate Valve - Answer-✅A valve with a sliding plate that, when completely open,
provides minimal flow restriction, and when completely closed provides tight shut-off.
They are not designed for throttling or controlling flow
/.Globe Valve - Answer-✅A valve with a movable plug and a stationary seat. Used to
control fluid flow
/.Mechanical Trap - Answer-✅A steam trap that operates on the difference between the
specific gravities of condensate and steam
/.Needle Valve - Answer-✅A globe valve with a small-diameter port and a needle-
shaped plug, designed to permit precise flow regulation
/.Nipple - Answer-✅A short threaded piece of pipe for making connections between
valves and other piping fittings
/.Nominal Pipe Size (NPS) - Answer-✅"An approximate indication of pipe diameter.
- Up to and including DN 300 (NPS 12), the number represents the nominal ouside
diameter of the pipe
,- For DN 350 (NPS 14) and larger pipe, the number represents the actual outside
diameter of the pipe."
/.Non-Return Stop Valve - Answer-✅A type of globe valve with a plug that moves
independently of the valve spindle when the valve is in the open position, permitting it to
act as a check valve if fluid reversal occurs. This valve is commonly used on boiler main
steam outlets
/.Pipe Die - Answer-✅A cutting tool used to create the male threads on a pipe
/.Pipe Reamer - Answer-✅A tool used to remove the internal burr left by a displacement
cutter
/.Pipe Tap - Answer-✅A cutting tool used to cut female threads for pipe fittings
/.Plug Fitting - Answer-✅A pipe fitting with external threads, used to close off an unused
opening in a pipe fitting
/.Plug Valve - Answer-✅A lubricated quarter-turn valve containing a tapered conical
flow element, that when rotated regulates the flow of fluid through the valve. These
valves are common in natural gas service
/.Pressure Reducing Station (PRS) - Answer-✅A piping system comprised of a number
of components, that receives a high pressure process fluid (such as steam) and lowers
the pressure so that the process fluid is suitable for using with downstream equipment.
The main components include a pressure reducing valve (PRV), pressure gauges,
isolating valves, a bypass valve, a strainer, unions, a sensing line downstream of the
PRV, and a safety valve. In stream service, the piping is equipped with steam traps
/.Pressure Reducing Valves (PRV) - Answer-✅A device that lowers the pressure of a
process fluid to a desired downstream pressure setpoint, regardless of fluctuations in
upstream pressure or flow conditions
/.Reducer Fitting - Answer-✅A device used to connect pipes of different diameters
/.Return Bends - Answer-✅A pipe fitting used for reversing direction of a pipe run by
180 degrees
/.Ring Joint Gasket - Answer-✅A gasket that fits in a grooved flange face
/.Schedule Number - Answer-✅A number that represents pipe wall thickness
/.Socket Welded Fitting - Answer-✅A fitting, such as a valve, fitting or flange, that has a
recess to permit insertion of a pipe prior to it being welded into place
, /.Steam Seperator - Answer-✅A device installed in a stream line to remove moisture
droplets and other suspended impurities from the steam, by forcing the steam to change
direction
/.Steam Trap - Answer-✅An automatic valve that drains condensate from a steam-
containing enclosure while remaining tight to live steam, or if necessary, allowing steam
to flow at a controlled or adjusted rate. Most will also pass non-condensable gases
which remaining tight to live steam. ANSI/FCI 69-1-1989
/.Tee - Answer-✅Pipe fitting used for making a branch line connection at 90 degrees.
Reducing tees may have different sized openings for reducing the size of the pipes for
the inlet, branch, or outlet of the tee
/.Thermodynamic Trap - Answer-✅A steam trap that operates based on the difference
between the heat energy of the steam and that of the condensate
/.Thermostatic Trap - Answer-✅A steam trap that operates based on the difference
between the temperature of the steam and that of the condensate
/.Union - Answer-✅A pipe fitting with two female threaded ends and a threaded
connector nut in the middle. Used to allow easy assembly and disassembly of piping
connections
/.Valve - Answer-✅A device for regulating the flow of gases, liquids, and slurries
through piping systems, or for isolating sections of piping systems
/.Valve Trim - Answer-✅The parts of a valve that contact the fluid in a piping system. It
usually consists of a valve seat, valve disc or gate, valve stem, and guide bushings
/.Van Stone Flange - Answer-✅A flange that fits loosely on the end of a pipe, so that
sections of pipe can be more easily aligned during assembly
/.Water Hammer - Answer-✅Loud, violent shocks produced within a piping system.
Typically caused by hydraulic shock, thermal shock, flow shock or differential shock
/.Wire Drawing - Answer-✅Damage to the surface of a valve seat, gate, or plug, caused
by longterm throttling of process fluid, that prevents shut valves from completely
stopping fluid flow. It has the appearance of "cuts" on the valve trim surface
/.Y-Bend Fitting - Answer-✅Pipe fitting used for making branch line connections at 45
degrees
