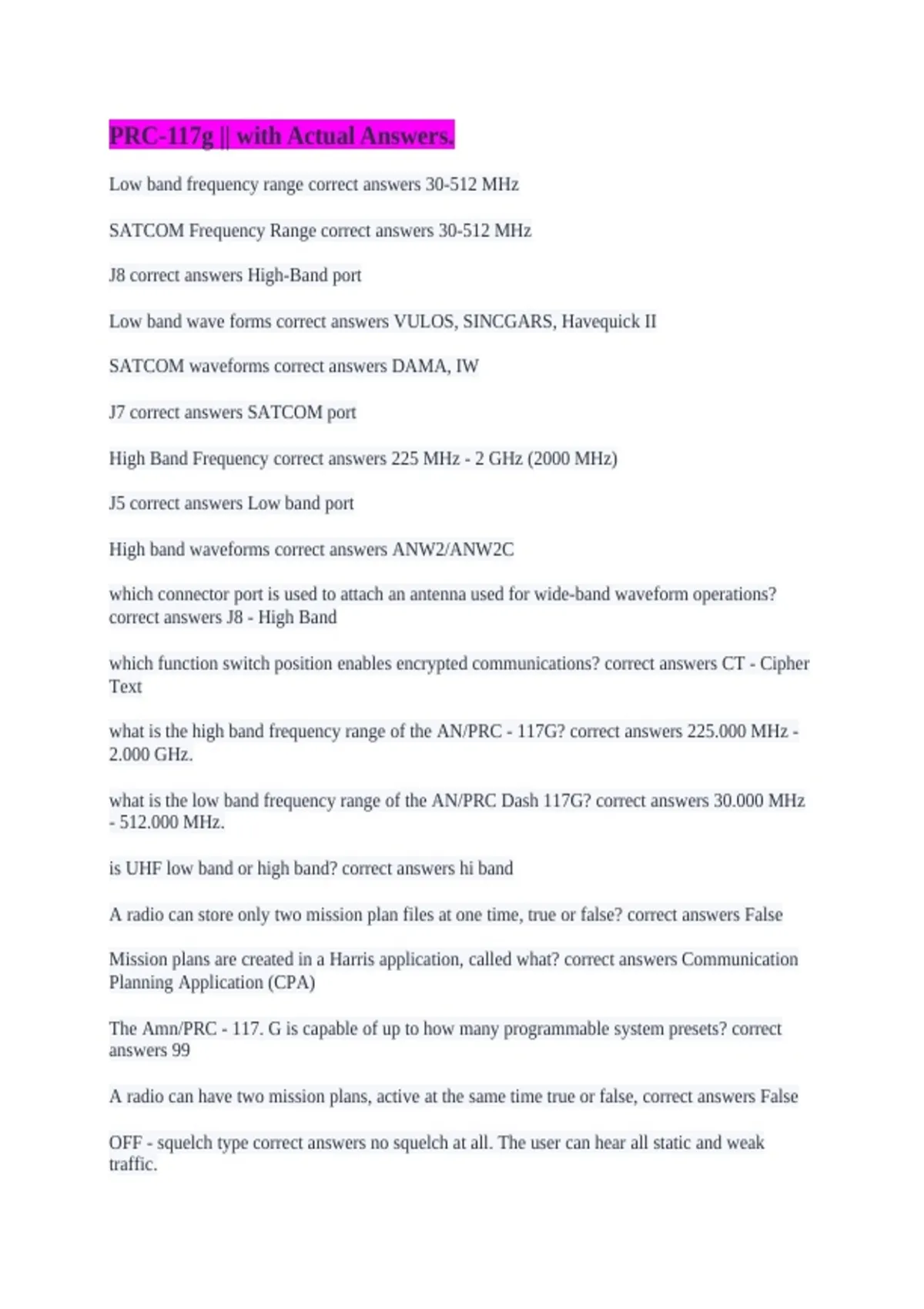

PRC-117g || with Actual Answers.
Low band frequency range correct answers 30-512 MHz
SATCOM Frequency Range correct answers 30-512 MHz
J8 correct answers High-Band port
Low band wave forms correct answers VULOS, SINCGARS, Havequick II
SATCOM waveforms correct answers DAMA, IW
J7 correct answers SATCOM port
High Band Frequency correct answers 225 MHz - 2 GHz (2000 MHz)
J5 correct answers Low band port
High band waveforms correct answers ANW2/ANW2C
which connector port is used to attach an antenna used for wide-band waveform operations?
correct answers J8 - High Band
which function switch position enables encrypted communications? correct answers CT - Cipher
Text
what is the high band frequency range of the AN/PRC - 117G? correct answers 225.000 MHz -
2.000 GHz.
what is the low band frequency range of the AN/PRC Dash 117G? correct answers 30.000 MHz
- 512.000 MHz.
is UHF low band or high band? correct answers hi band
A radio can store only two mission plan files at one time, true or false? correct answers False
Mission plans are created in a Harris application, called what? correct answers Communication
Planning Application (CPA)
The Amn/PRC - 117. G is capable of up to how many programmable system presets? correct
answers 99
A radio can have two mission plans, active at the same time true or false, correct answers False
OFF - squelch type correct answers no squelch at all. The user can hear all static and weak
traffic.
, Tone squelch type correct answers Waits
for a 150 Hz tone from a sender before allowing traffic. Not available in AM
noise squelch type correct answers transmission strength must break, the user set noise floor to
be allowed through
continuous tone coded squelch systems (CTCSS) correct answers Waits for certain squelch tones
at certain frequencies before allowing traffic. PT only.
continuous digital coded squelch system (CDCSS) correct answers Waits for certain digital
squelch codes before allowing traffic. PT only
Digital - squelch type correct answers any time user is in CT mode, squelch defaults to digital
and cannot be changed
Clone mode, allows you to do what? correct answers allows a radio with a set of settings and
within a mission plan to send those Settings to another radio wirelessly and instantly
Scan mode does what? correct answers monitors up to 10 VULOS stations at one time, pausing
on an active station to hear the transmission
Beacon mode does what? correct answers send out a locator beacon on a specific frequency—
406 MHz, 243 MHz, and 121.5 MHz for actual emergency.
True or false, clone mode transmits a copy of the senate radios COMSWC keys? correct answers
False
True or false, in scan mode, and you have a PT net and a CT net in the same list? correct answers
no/false
What determines which mission plan is transmitted in clone mode? correct answers Active
mission plan on sending radio
True or false? Beacon mode will continue sending out a distress beacon until the radio battery
dies? correct answers True
when does VULOS SA transmission occur? correct answers when the radio is in CT and
LOS/SATCOM
what is the range of a valid combat ID? correct answers 000001 to 524000
What is the default combat ID on a radio? correct answers The radios serial number
