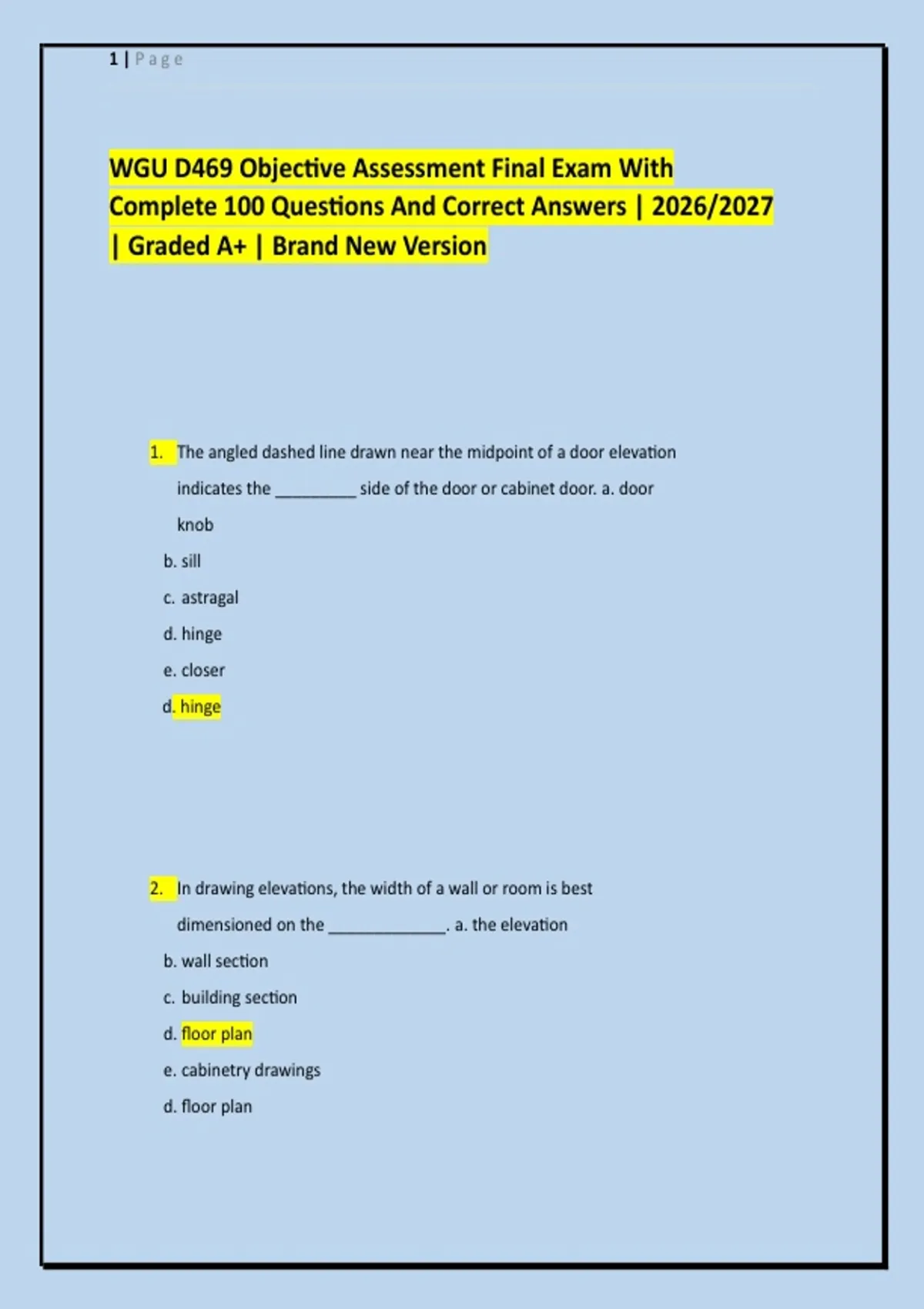

WGU D469 Objective Assessment Final Exam With
Complete 100 Questions And Correct Answers | 2026/2027
| Graded A+ | Brand New Version
1. The angled dashed line drawn near the midpoint of a door elevation
indicates the _________ side of the door or cabinet door. a. door
knob
b. sill
c. astragal
d. hinge
e. closer
d. hinge
2. In drawing elevations, the width of a wall or room is best
dimensioned on the _____________. a. the elevation
b. wall section
c. building section
d. floor plan
e. cabinetry drawings
d. floor plan
, 2|Page
3. Interior elevations can be named ____________________________.
a. by compass direction only
b. to match the exterior elevations
c. in several different ways
d. by room name only
e. according to the designer's whim
c. in several different ways
4. When drawing interior elevations of doors, windows, and built-in
cabinetry, such as in a kitchen, bath, or office, ___________ lines
are used to indicate hinge location and door swings. a. light
b. solid, dark
c. jagged
d. dashed
e. curved
d. dashed
