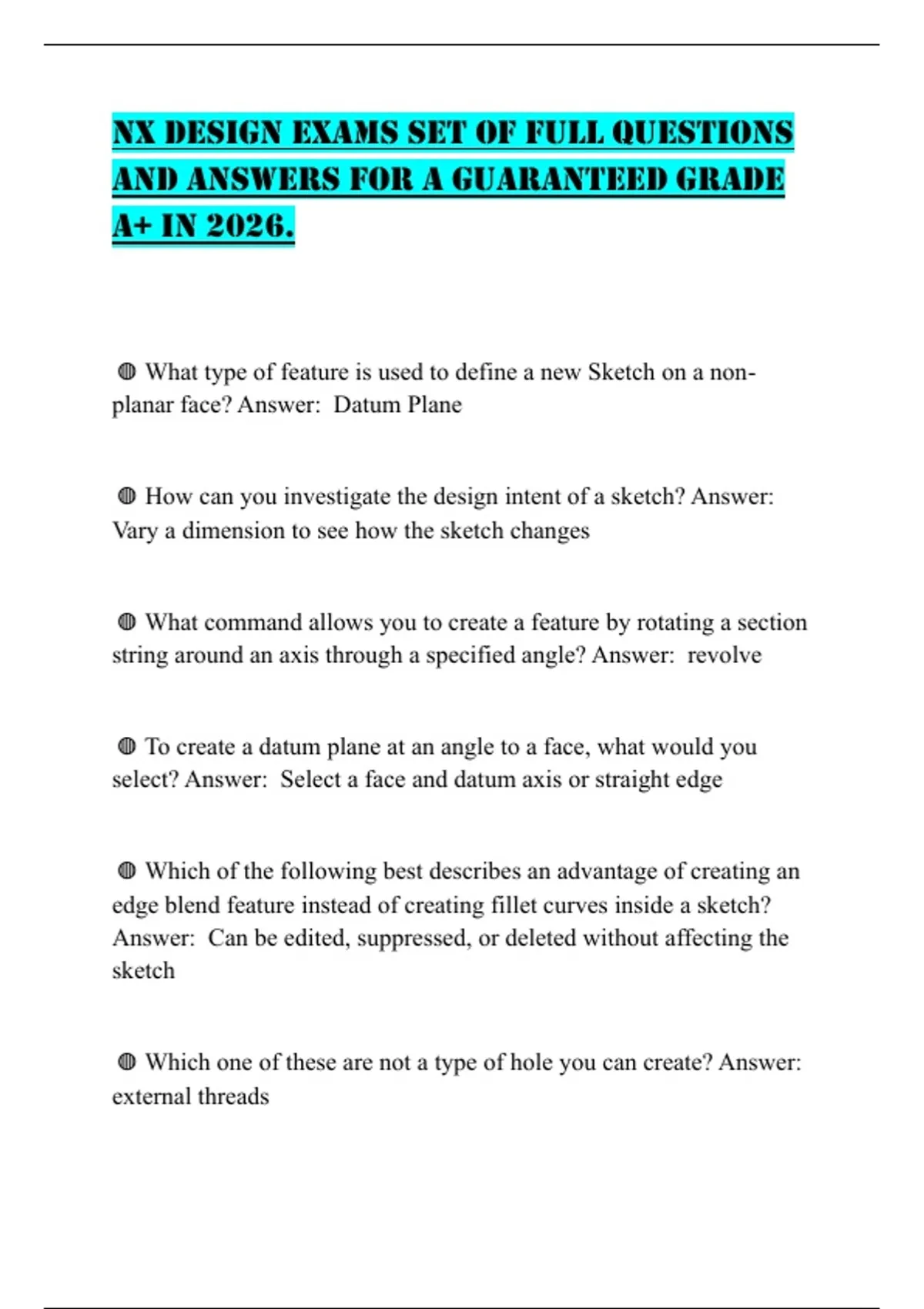

NX DESIGN EXAMS SET OF FULL QUESTIONS
AND ANSWERS FOR A GUARANTEED GRADE
A+ IN 2026.
◍ What type of feature is used to define a new Sketch on a non-
planar face? Answer: Datum Plane
◍ How can you investigate the design intent of a sketch? Answer:
Vary a dimension to see how the sketch changes
◍ What command allows you to create a feature by rotating a section
string around an axis through a specified angle? Answer: revolve
◍ To create a datum plane at an angle to a face, what would you
select? Answer: Select a face and datum axis or straight edge
◍ Which of the following best describes an advantage of creating an
edge blend feature instead of creating fillet curves inside a sketch?
Answer: Can be edited, suppressed, or deleted without affecting the
sketch
◍ Which one of these are not a type of hole you can create? Answer:
external threads
, ◍ Which of the following cannot be selected to create Edge Blend
features? Answer: sketch curves
◍ What type of chamfer cannot be created? Answer: two angle
◍ What is an advantage of using a Hole feature instead of an
Extrude? Answer: A Hole feature can be easily edited to change the
form
◍ You create a threaded hole in a lug for a specific size fastener. The
resulting Hole feature includes: Answer: A single feature The hole,
threads, and the entry and exit chamfers
◍ Why would you use a separate Thread command? Answer: To
create external threads
◍ You can create a chamfer feature or chamfer curves inside a
sketch. What is a potential advantage of creating chamfers in a
sketch? Answer: Your model history will have fewer features
◍ Why would you want to deactivate the Timestamp Order option in
the Part Navigator? Answer: To view solid bodies in the model
◍ When selecting a feature in the Part Navigator, what do the colors
of the text above and below the selected Feature mean? Answer: The
Parent- and Child relationships
, ◍ When selecting a feature in the Part Navigator what color does the
text of its children features then become? Answer: blue
◍ In the Part Navigator how can you list the parameters, expressions,
and values of a feature without using the Show Dimensions
command? Answer: Open the Details Group
◍ After using the Show Dimensions command on a sketch how do
you erase the temporarily-displayed dimensions from the graphics
window? Answer: Use the Refresh command
◍ By default, what happens to the child features when their parent
feature is deleted? Answer: The child features are automatically
deleted
◍ Which Synchronous Modeling command can be used to change
the radii of this feature regardless of the feature history? Answer:
Resize Blend
◍ Which Synchronous Modeling command can be used to transform
faces in a linear direction, angular direction, or from point to point?
Answer: Move Face
◍ What type of models can synchronous modeling commands be
used on? Answer: Both history based and non-parametric models
