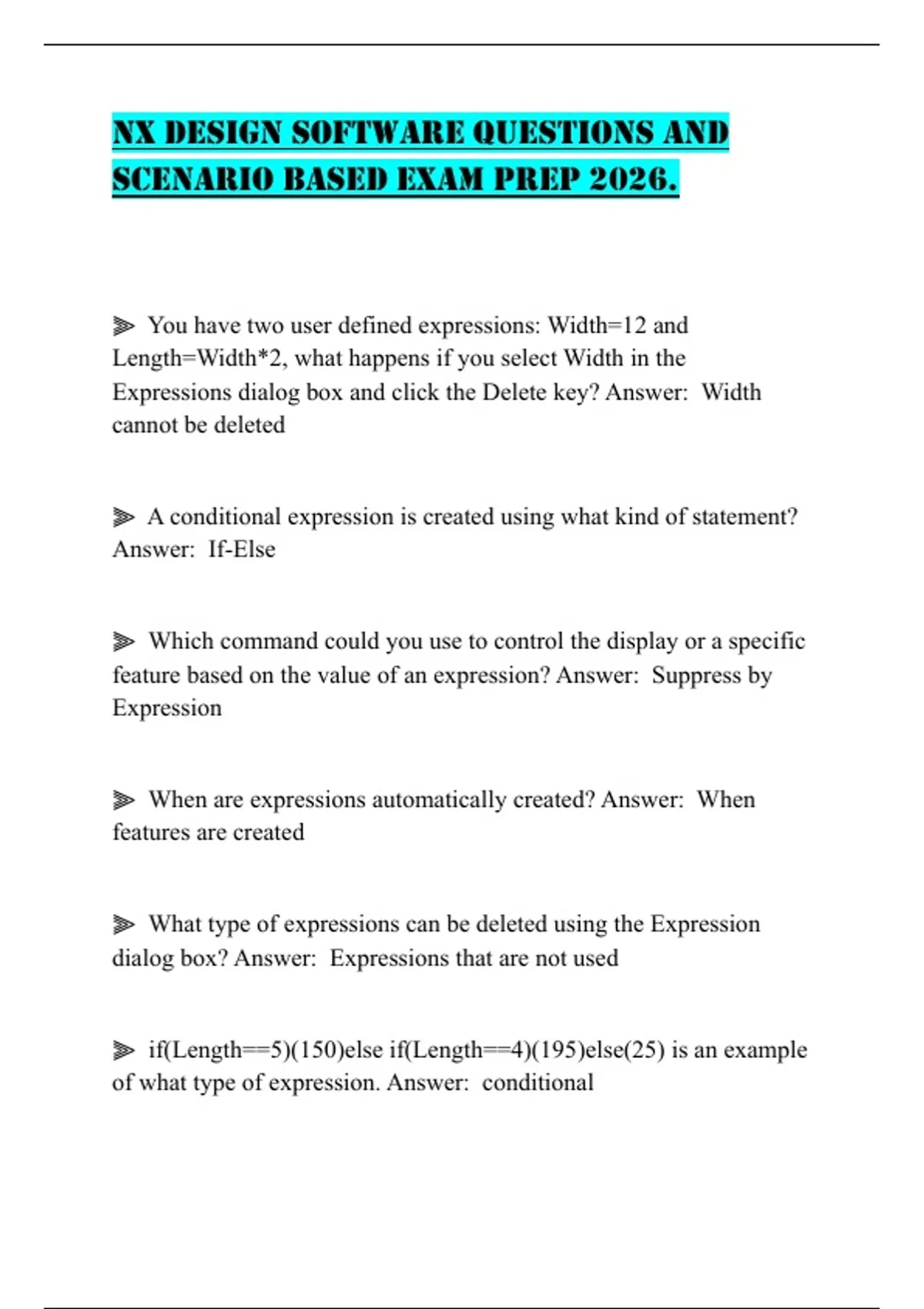

NX DESIGN SOFTWARE QUESTIONS AND
SCENARIO BASED EXAM PREP 2026.
⫸ You have two user defined expressions: Width=12 and
Length=Width*2, what happens if you select Width in the
Expressions dialog box and click the Delete key? Answer: Width
cannot be deleted
⫸ A conditional expression is created using what kind of statement?
Answer: If-Else
⫸ Which command could you use to control the display or a specific
feature based on the value of an expression? Answer: Suppress by
Expression
⫸ When are expressions automatically created? Answer: When
features are created
⫸ What type of expressions can be deleted using the Expression
dialog box? Answer: Expressions that are not used
⫸ if(Length==5)(150)else if(Length==4)(195)else(25) is an example
of what type of expression. Answer: conditional
, ⫸ Which of the following statements about the Lock Formula option
in the Expressions dialog box are true? Answer: Is particularly useful
for protecting important expressions from being modified
⫸ Design intent will determine which one of the following tasks.
Answer: The modeling strategy
⫸ Can design intent be incorporated after the initial model
construction? Answer: Yes, but may be more difficult
⫸ Which one of these following operations does not automatically
create expressions? Answer: When a part is opened
⫸ What type of expressions cannot be deleted? Answer: System
Expressions
⫸ Which is the correct format when creating a conditional
expression? Answer: if(Length==5)(150)else
if(Length==4)(195)else(25)
⫸ Which one of the following statements about the Lock Formula
option in the Expressions dialog box is false? Answer: Expressions
with locked formulas when created cannot be unlocked
⫸ The modeling strategy, the organization of the model, and the
creation of expressions, are tasks you typically do to establish what
modeling concept? Answer: Design Intent
