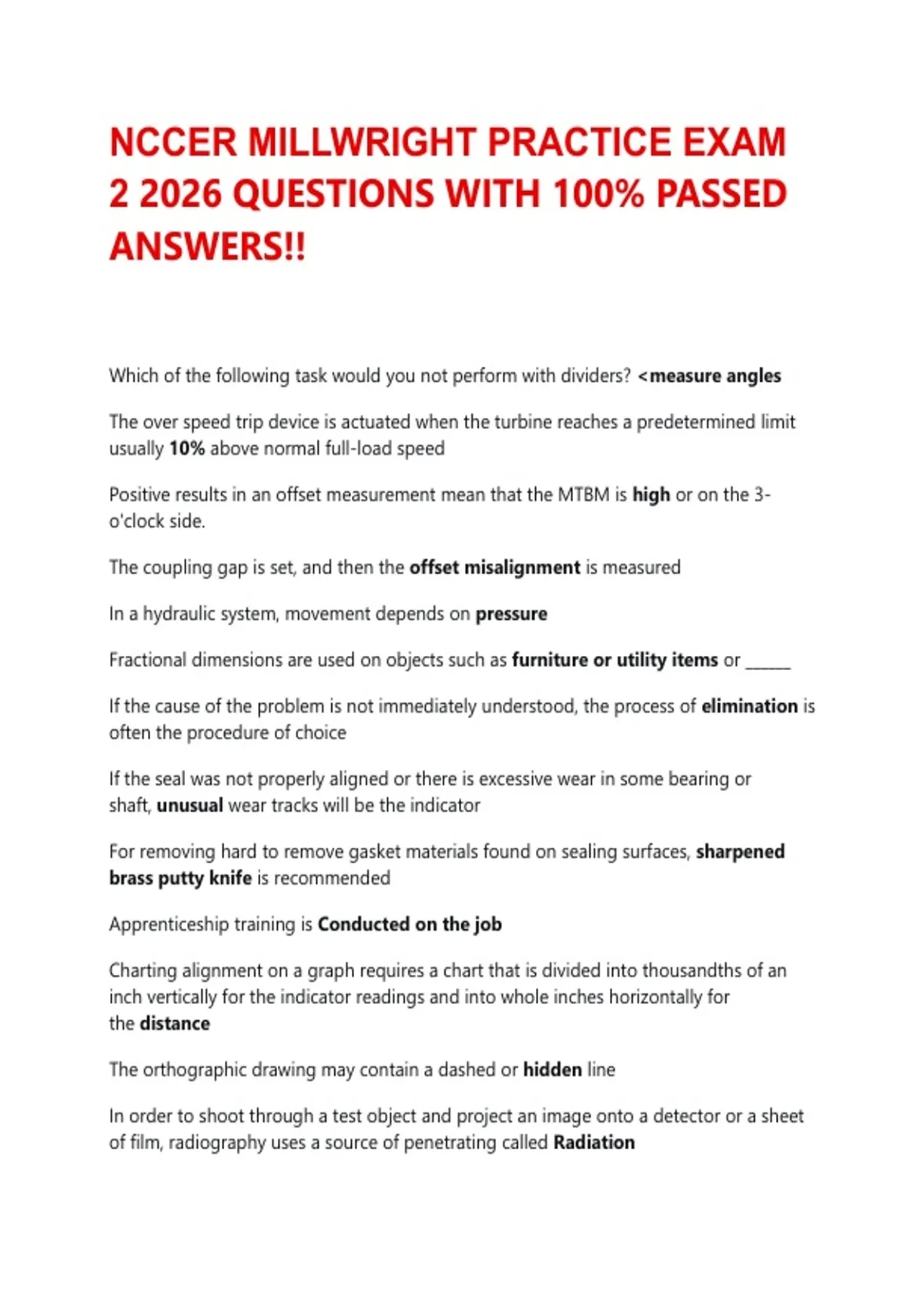

NCCER MILLWRIGHT PRACTICE EXAM
2 2026 QUESTIONS WITH 100% PASSED
ANSWERS!!
Which of the following task would you not perform with dividers? <measure angles
The over speed trip device is actuated when the turbine reaches a predetermined limit
usually 10% above normal full-load speed
Positive results in an offset measurement mean that the MTBM is high or on the 3-
o'clock side.
The coupling gap is set, and then the offset misalignment is measured
In a hydraulic system, movement depends on pressure
Fractional dimensions are used on objects such as furniture or utility items or ______
If the cause of the problem is not immediately understood, the process of elimination is
often the procedure of choice
If the seal was not properly aligned or there is excessive wear in some bearing or
shaft, unusual wear tracks will be the indicator
For removing hard to remove gasket materials found on sealing surfaces, sharpened
brass putty knife is recommended
Apprenticeship training is Conducted on the job
Charting alignment on a graph requires a chart that is divided into thousandths of an
inch vertically for the indicator readings and into whole inches horizontally for
the distance
The orthographic drawing may contain a dashed or hidden line
In order to shoot through a test object and project an image onto a detector or a sheet
of film, radiography uses a source of penetrating called Radiation
, When applying sealant to the sealing gland flanges, keep the sealant away from the
inside edges of the flange by at least 3/16 inch
A stroboscope is triggered by a Transducer
The pitch of threaded fasteners is measured with a thread gauge
Liquid penetrant highlights flaws and reveals Surface cracks
A tool used to cut external threats on s bolt or rod is called a die
A bill of materials may include info on special processes and other reference
information
Engaged gears always have the same surface speed
Elevation of equipment is usually found in the general arrangement
Inspect the pulleys, rollers, and idlers for unevenness or Vibrations
When cutting thin steel with Oxyfuel fuel cutting equipment, hold the torch so that the
tip is pointing in the direction the torch is traveling at a 15-20 degree angle angle
Labby seals work BEST with materials such as Grease.........
Lubrication is the application of any substance that reduces Friction
When the dial indicator is mounted on the complex reverse driven coupling jig , the
indicator is registered on the Driver coupling jig
Pipe should be stored In racks
The most common type of ball bearing is a Single deep groove radial bearing
Couplings that are installed after the driver and driven shafts have been aligned and the
equipment has been fastened into position are split couplings
When two or more numbers are multiplied to make another number thy ate
called Factors of the third number
The continuous-reading dial indicator starts at zero and increases clockwise
Vibration within a specific narrow band range can be detected by Electronic filters
What type of o ring do you use with temperatures between-300 and 500? Teflon
