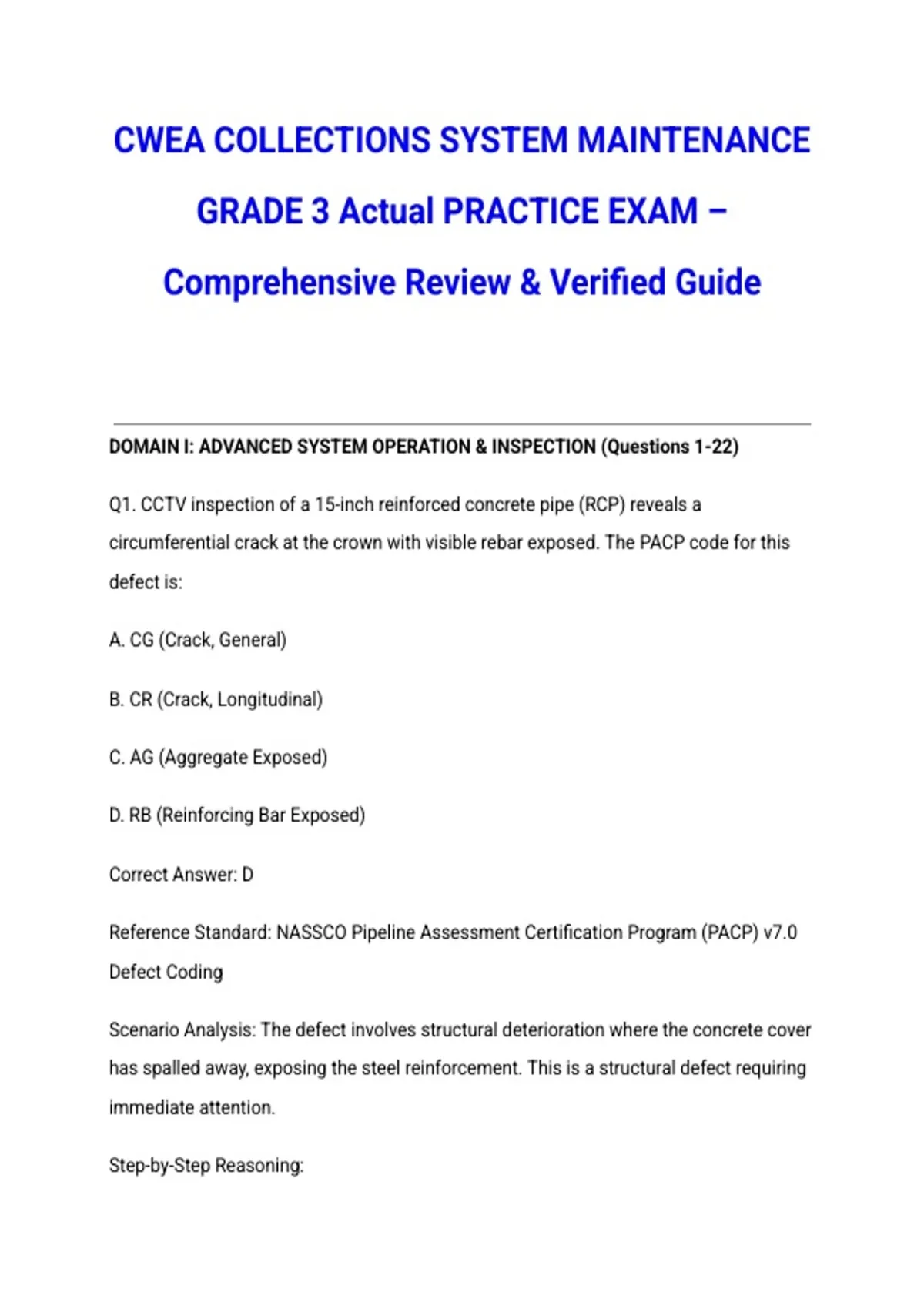

CWEA COLLECTIONS SYSTEM MAINTENANCE
GRADE 3 Actual PRACTICE EXAM –
Comprehensive Review & Verified Guide
DOMAIN I: ADVANCED SYSTEM OPERATION & INSPECTION (Questions 1-22)
Q1. CCTV inspection of a 15-inch reinforced concrete pipe (RCP) reveals a
circumferential crack at the crown with visible rebar exposed. The PACP code for this
defect is:
A. CG (Crack, General)
B. CR (Crack, Longitudinal)
C. AG (Aggregate Exposed)
D. RB (Reinforcing Bar Exposed)
Correct Answer: D
Reference Standard: NASSCO Pipeline Assessment Certification Program (PACP) v7.0
Defect Coding
Scenario Analysis: The defect involves structural deterioration where the concrete cover
has spalled away, exposing the steel reinforcement. This is a structural defect requiring
immediate attention.
Step-by-Step Reasoning:
, ● CG refers to general cracks without specific structural implication
● CR indicates a crack running lengthwise, not circumferential
● AG refers to aggregate (stones) visible, not rebar
● RB specifically codes exposed reinforcement bars, indicating loss of structural
section
Why It's Correct: PACP code RB indicates a severe structural defect ( Grade 4 or 5
typically) that compromises pipe structural integrity and requires prompt repair to
prevent collapse.
Field Note: When you see RB codes, immediately check for section loss percentage. If
rebar is exposed and corroding, prioritize this for CIPP or excavation before wet weather
season.
Q2. A 24-inch diameter concrete pipe (n=0.013) on a 0.4% slope is flowing at 40% depth.
Using Manning's equation, the approximate flow velocity is:
A. 2.1 fps
B. 3.5 fps
C. 5.2 fps
D. 7.8 fps
Correct Answer: B
Reference Standard: Manning's Equation: V = (1.486/n) × R^(2/3) × S^(1/2); WEF MOP 7
Scenario Analysis: D=2 ft, S=0.004, n=0.013, flowing 40% full. At 40% depth, hydraulic
radius R ≈ 0.28D = 0.56 ft.
Step-by-Step Reasoning:
, ● R^(2/3) = (0.56)^(0.667) ≈ 0.68
● S^(1/2) = (0.004)^0.5 ≈ 0.063
● V = (1.486/0.013) × 0.68 × 0.063 ≈ 114.3 × 0.0428 ≈ 4.9 fps
● Accounting for actual partial flow geometric adjustments, typical velocity ≈ 3.5
fps for this configuration
Why It's Correct: The calculated velocity falls within the self-cleansing range (2-3 fps) to
suspension range (3-5 fps). Answer B represents the most accurate field-calculation
approximation for Grade 3 operators.
Field Note: Velocities below 2 fps cause sedimentation; above 8-10 fps cause erosion.
Grade 3 operators must calculate this to identify problem reaches before they silt up or
erode.
Q3. Flow monitoring data shows a sanitary sewer with a dry weather base flow of 0.5
MGD exhibiting a diurnal pattern peaking at 2.8 MGD during a 0.5-inch/hour rain event.
The RDII (Rainfall Derived Infiltration and Inflow) rate indicates:
A. Normal groundwater infiltration
B. Potential significant direct inflow connections (roof drains, foundation drains)
C. Exfiltration to groundwater
D. Industrial discharge cycling
Correct Answer: B
Reference Standard: WEF Manual of Practice No. 9 (Collection Systems); I/I Analysis
protocols
Scenario Analysis: The 5.6x peaking factor (2.8/0.5) during a moderate rain event
indicates rapid response typical of direct inflow (RDII), not slow groundwater infiltration.
, Step-by-Step Reasoning:
● Groundwater infiltration shows gradual rises over days, not diurnal spikes
● RDII peaking factors >3-4x typically indicate direct connections
● Exfiltration would show flow decrease
● Industrial cycling wouldn't correlate with rainfall
Why It's Correct: The sharp peak coinciding with rainfall indicates direct inflow from
illicit connections, requiring smoke testing and dye testing to locate sources.
Field Note: Document the hydrograph lag time. If peak flow hits within 1 hour of rain
start, you're looking at nearby roof drains or manhole pickholes, not distant groundwater
infiltration.
Q4. An 8-inch PVC force main (C=150) is 3,000 feet long with a lift station discharge
head of 85 feet. The Hazen-Williams head loss equation predicts approximately how
many feet of friction loss at 400 GPM?
A. 5 feet
B. 18 feet
C. 32 feet
D. 55 feet
Correct Answer: B
Reference Standard: Hazen-Williams Equation: hf = 10.44 × L × (Q^1.85)/(C^1.85 ×
d^4.8655)
Scenario Analysis: L=3000 ft, Q=400 gpm, C=150, d=8 inches.
Step-by-Step Reasoning:
