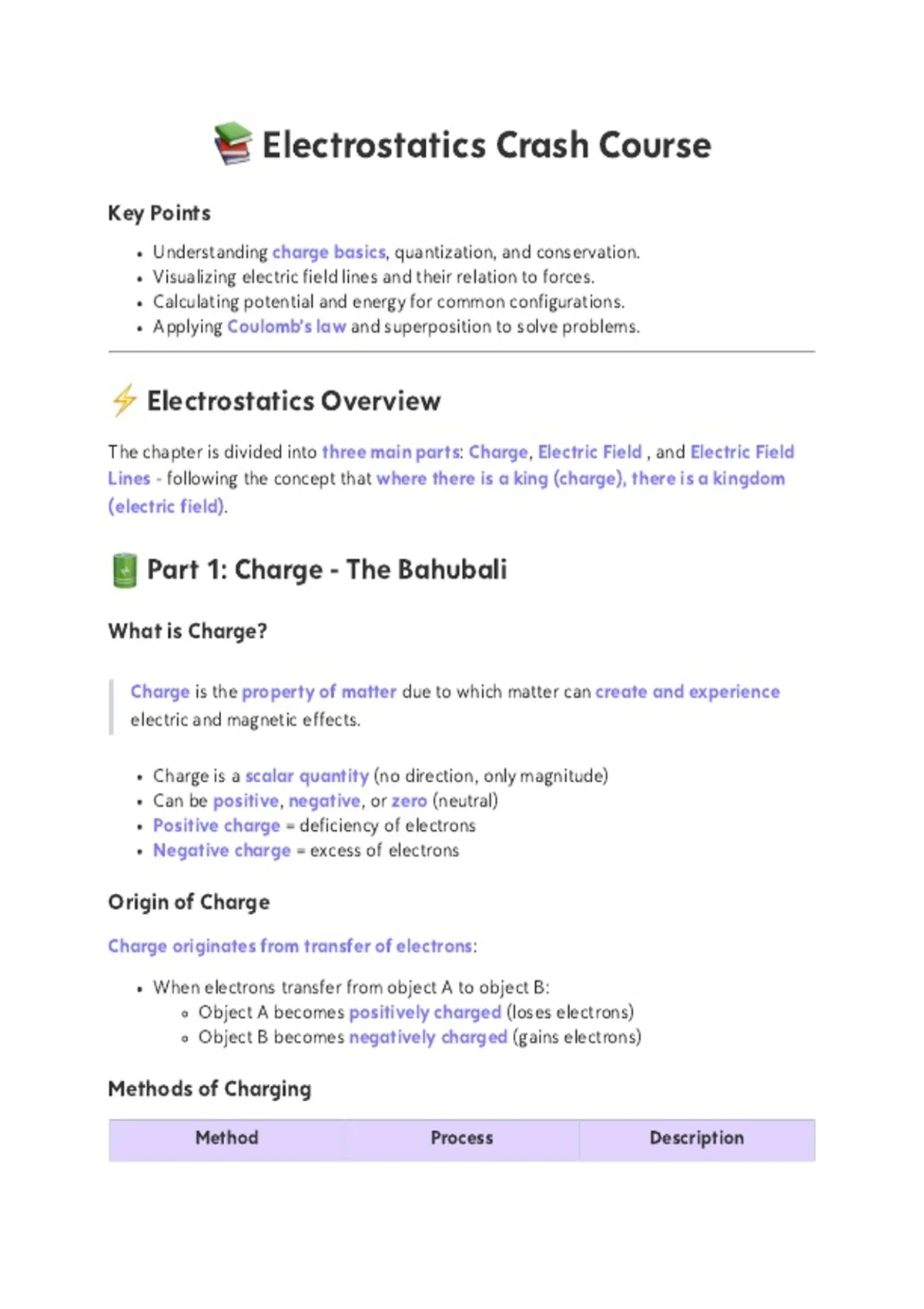

📚 Electrostatics Crash Course
Key Points
Understanding charge basics, quantization, and conservation.
Visualizing electric field lines and their relation to forces.
Calculating potential and energy for common configurations.
Applying Coulomb’s law and superposition to solve problems.
⚡ Electrostatics Overview
The chapter is divided into three main parts: Charge, Electric Field , and Electric Field
Lines - following the concept that where there is a king (charge), there is a kingdom
(electric field).
🔋 Part 1: Charge - The Bahubali
What is Charge?
Charge is the property of matter due to which matter can create and experience
electric and magnetic effects.
Charge is a scalar quantity (no direction, only magnitude)
Can be positive, negative, or zero (neutral)
Positive charge = deficiency of electrons
Negative charge = excess of electrons
Origin of Charge
Charge originates from transfer of electrons:
When electrons transfer from object A to object B:
Object A becomes positively charged (loses electrons)
Object B becomes negatively charged (gains electrons)
Methods of Charging
Method Process Description
, Friction Rubbing two objects Electrons transfer through
physical contact
Conduction Direct contact Charge flows from high
concentration to low
concentration
Induction Without contact Redistribution of charges
due to proximity
Charging by Induction Process:
1. Bring a charged object near a neutral conductor
2. Charges in conductor redistribute (opposite charges attracted)
3. No physical contact needed
4. Example: Like distracting with dinosaur while giving injection
Properties of Charge
1. Scalar Quantity - No direction, only magnitude
2. Quantized - Exists in integer multiples of e = 1.6 × 10 C
−19
3. Conserved - Cannot be created or destroyed
4. Additive - Total charge = algebraic sum of individual charges
What Charge Can Do
State of Charge Effect Produced
Rest Creates electric field
Moving (constant velocity) Creates current electricity and
magnetism
Accelerating Produces electromagnetic waves
Key Principle: Rest → Electrostatic, Move → Current, Accelerate → EM waves
🏰 Part 2: Electric Field - The Mahishmati
Electric field exists around every charge
Electric field lines represent the field:
Closer lines = stronger field
Farther lines = weaker field
, Lines originate from positive and terminate at negative charges
⚔️ Part 3: Electric Field Lines - The Senia
Represent electric flux
Density of lines indicates field strength
Direction shows force on positive test charge
Never intersect each other
📝 NCERT Coverage
The session covers two NCERT chapters:
1. Electric Charges and Fields
2. Electric Potential and Energy
Note: Capacitance is not covered in this session as it deals with static conditions of
charge.
💯 Charge Conservation & Quantization: Deeper
Properties
🛡️ Charge Immortality
Charge can never be destroyed - it is immortal and can only be neutralized
Charge never dies, only becomes neutral
Example: When N a and C l combine, net charge becomes zero, but
+ −
individual charges still exist
Neutral object = equal positive and negative charges (not absence of charge)
In any isolated system, total charge remains constant regardless of internal
changes
🎯 Charge Quantization
Quantization means charge exists only in discrete packets (like buying bananas - you
can only get whole bananas, never half)
, Minimum possible charge = charge of one electron (e = 1.6 × 10 −19
C)
Charge formula: q = ne where:
n = integer (positive or negative)
e = fundamental unit of charge
No fractional electrons - cannot have e or 0.5e 1
2
Charge cannot exist in decimals: 2.3e is impossible
💪 Charge-Mass Relationship
Charge is always associated with mass - they travel together
When electrons transfer, mass transfers too
Example: Negative charge means excess electrons → increased mass
Positive charge means electron deficiency → decreased mass
Charge cannot exist without mass (but mass can exist without charge)
🚀 Frame of Reference Independence
Charge is independent of frame of reference (unlike mass)
Charge value remains same whether:
Observer is stationary
Observer is moving
Observer is at different velocity
Mass is relativistic (depends on velocity):
Formula: m = m0
v2
1− 2
Where m = rest mass, c = speed of light
c
0
As velocity increases, mass increases
Charge is non-relativistic (frame-independent)
⚡ Electrostatic vs Gravitational Forces
Force Type Proportionality Formula Basis
Gravitational Mass × Mass F ∝ m1 m2
Electrostatic Charge × Charge F ∝ q q 1
2
When placed on Earth and Moon to neutralize gravitational attraction:
Set electrostatic force = gravitational force
q1 q2
m1 m2
k = G
r2 r2
