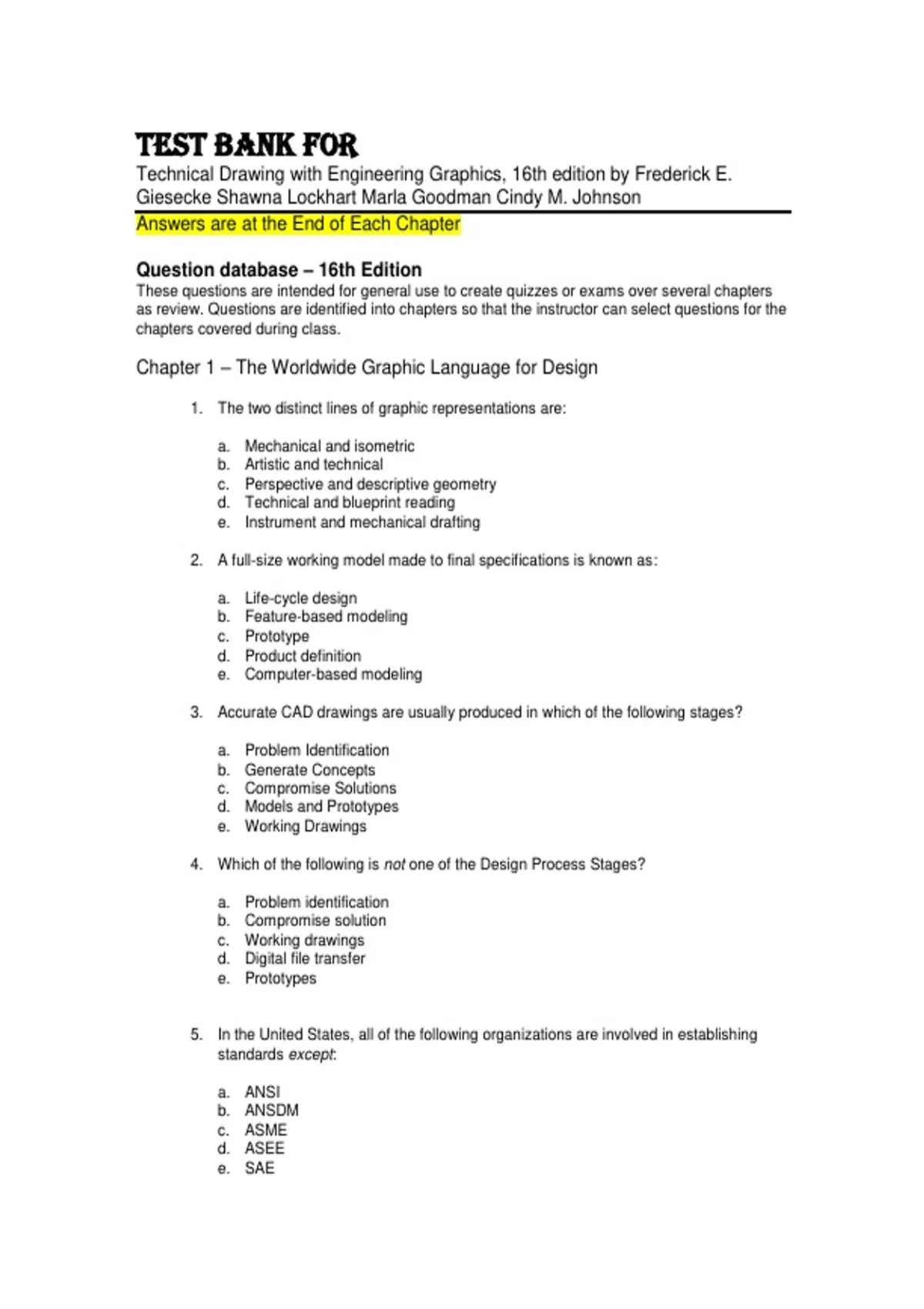

Test Bank for
Technical Drawing with Engineering Graphics, 16th edition by Frederick E.
Giesecke Shawna Lockhart Marla Goodman Cindy M. Johnson
Answers are at the End of Each Chapter
Question database – 16th Edition
These questions are intended for general use to create quizzes or exams over several chapters
as review. Questions are identified into chapters so that the instructor can select questions for the
chapters covered during class.
Chapter 1 – The Worldwide Graphic Language for Design
1. The two distinct lines of graphic representations are:
a. Mechanical and isometric
b. Artistic and technical
c. Perspective and descriptive geometry
d. Technical and blueprint reading
e. Instrument and mechanical drafting
2. A full-size working model made to final specifications is known as:
a. Life-cycle design
b. Feature-based modeling
c. Prototype
d. Product definition
e. Computer-based modeling
3. Accurate CAD drawings are usually produced in which of the following stages?
a. Problem Identification
b. Generate Concepts
c. Compromise Solutions
d. Models and Prototypes
e. Working Drawings
4. Which of the following is not one of the Design Process Stages?
a. Problem identification
b. Compromise solution
c. Working drawings
d. Digital file transfer
e. Prototypes
5. In the United States, all of the following organizations are involved in establishing
standards except:
a. ANSI
b. ANSDM
c. ASME
d. ASEE
e. SAE
, 6. (True or False) DFSS is a tool for decision making that helps companies focus
on an approach to create highly toleranced products for precision equipment.
7. (True or False) Concurrent engineering is a systematic approach that integrates
the design and manufacture of products with the goal of optimizing all elements
involved in the life cycle of the product.
8. (True or False) The purpose of technical drawings is for visualization,
communication, or documentation.
9. (True or False) The Live Cycle Design includes all aspects of a product except
disposal and recycling.
Chapter 1 Answers
1. b
2. c
3. d
4. d
5. b
6. False
7. True
8. True
9. False
,Chapter 2 – Layouts and Lettering
1. The standard C size sheet measures:
a. 8 ½ x 11
b. 11 x 17
c. 12 x 18
d. 17 x 22
e. 24 x 32
2. The two main types of projection are:
a. Orthographic and isometric
b. Cabinet and third angle projection
c. First-angle and axonometric projection
d. Parallel and perspective projection
e. Cavalier and three-point perspective projection
3. When referring to a drawing layout and wanting to focus attention to a particular part
of the drawing, which of the following may be a helpful reference?
a. Zones
b. DAI number
c. Scale
d. Drawing Title
e. Revision block
4. Which scale has 11 scales and expresses measurements in feet and inches?
a. Architect’s scale
b. Engineer’s scale
c. Metric scale
d. Mechanical engineer’s scale
e. Mapping scale
5. A scale measures a distance of 23.2’. Which scale was most likely used to make the
measurement?
a. Architect’s scale
b. Engineer’s scale
c. Metric scale
d. Mechanical engineer’s scale
e. Mapping scale
6. A line described as thin line having increments measuring 1 ½‖ and two short
dashes, then repeated, best identifies a:
a. Centerline
b. Hidden line
c. Dimension line
d. Extension line
e. Phantom line
, 7. A line described as a thick line with dashes approximately ¼‖ long, having arrows
perpendicular to the line best identifies a:
a. Short break
b. Visible line
c. Cutting plane line
d. Chain lines
e. Phantom line
8. A scale described has having 6 scales and is a scale frequently used in stress
diagrams is the:
a. Decimal inch scale
b. Architectural scale
c. Mechanical engineer’s scale
d. Engineer’s scale
e. Metric scale
9. Of the following listed grades, which has little usefulness in mechanical drawing?
a. 4H
b. 2H
c. H
d. HB
e. 3B
10. Which of the following is a preferred metric scale?
a. 1:62500
b. 1/8"=1'-0"
c. 1" = 100’
d. 1:20
e. ¼"=1'
11. Which of the following types of lead would be best used for construction lines.
a. 4H
b. 2H
c. H
d. HB
e. 3B
12. A measurement of 3¼ inches is closest to:
a. 75 mm
b. 78.55 mm
c. 81.5 mm
d. 82.55 mm
e. 84.5 mm
13. The primary metric unit used in engineering drawings is the ________________.
14. Which triangle shaped scale has inches divided into 10ths? ________________
Technical Drawing with Engineering Graphics, 16th edition by Frederick E.
Giesecke Shawna Lockhart Marla Goodman Cindy M. Johnson
Answers are at the End of Each Chapter
Question database – 16th Edition
These questions are intended for general use to create quizzes or exams over several chapters
as review. Questions are identified into chapters so that the instructor can select questions for the
chapters covered during class.
Chapter 1 – The Worldwide Graphic Language for Design
1. The two distinct lines of graphic representations are:
a. Mechanical and isometric
b. Artistic and technical
c. Perspective and descriptive geometry
d. Technical and blueprint reading
e. Instrument and mechanical drafting
2. A full-size working model made to final specifications is known as:
a. Life-cycle design
b. Feature-based modeling
c. Prototype
d. Product definition
e. Computer-based modeling
3. Accurate CAD drawings are usually produced in which of the following stages?
a. Problem Identification
b. Generate Concepts
c. Compromise Solutions
d. Models and Prototypes
e. Working Drawings
4. Which of the following is not one of the Design Process Stages?
a. Problem identification
b. Compromise solution
c. Working drawings
d. Digital file transfer
e. Prototypes
5. In the United States, all of the following organizations are involved in establishing
standards except:
a. ANSI
b. ANSDM
c. ASME
d. ASEE
e. SAE
, 6. (True or False) DFSS is a tool for decision making that helps companies focus
on an approach to create highly toleranced products for precision equipment.
7. (True or False) Concurrent engineering is a systematic approach that integrates
the design and manufacture of products with the goal of optimizing all elements
involved in the life cycle of the product.
8. (True or False) The purpose of technical drawings is for visualization,
communication, or documentation.
9. (True or False) The Live Cycle Design includes all aspects of a product except
disposal and recycling.
Chapter 1 Answers
1. b
2. c
3. d
4. d
5. b
6. False
7. True
8. True
9. False
,Chapter 2 – Layouts and Lettering
1. The standard C size sheet measures:
a. 8 ½ x 11
b. 11 x 17
c. 12 x 18
d. 17 x 22
e. 24 x 32
2. The two main types of projection are:
a. Orthographic and isometric
b. Cabinet and third angle projection
c. First-angle and axonometric projection
d. Parallel and perspective projection
e. Cavalier and three-point perspective projection
3. When referring to a drawing layout and wanting to focus attention to a particular part
of the drawing, which of the following may be a helpful reference?
a. Zones
b. DAI number
c. Scale
d. Drawing Title
e. Revision block
4. Which scale has 11 scales and expresses measurements in feet and inches?
a. Architect’s scale
b. Engineer’s scale
c. Metric scale
d. Mechanical engineer’s scale
e. Mapping scale
5. A scale measures a distance of 23.2’. Which scale was most likely used to make the
measurement?
a. Architect’s scale
b. Engineer’s scale
c. Metric scale
d. Mechanical engineer’s scale
e. Mapping scale
6. A line described as thin line having increments measuring 1 ½‖ and two short
dashes, then repeated, best identifies a:
a. Centerline
b. Hidden line
c. Dimension line
d. Extension line
e. Phantom line
, 7. A line described as a thick line with dashes approximately ¼‖ long, having arrows
perpendicular to the line best identifies a:
a. Short break
b. Visible line
c. Cutting plane line
d. Chain lines
e. Phantom line
8. A scale described has having 6 scales and is a scale frequently used in stress
diagrams is the:
a. Decimal inch scale
b. Architectural scale
c. Mechanical engineer’s scale
d. Engineer’s scale
e. Metric scale
9. Of the following listed grades, which has little usefulness in mechanical drawing?
a. 4H
b. 2H
c. H
d. HB
e. 3B
10. Which of the following is a preferred metric scale?
a. 1:62500
b. 1/8"=1'-0"
c. 1" = 100’
d. 1:20
e. ¼"=1'
11. Which of the following types of lead would be best used for construction lines.
a. 4H
b. 2H
c. H
d. HB
e. 3B
12. A measurement of 3¼ inches is closest to:
a. 75 mm
b. 78.55 mm
c. 81.5 mm
d. 82.55 mm
e. 84.5 mm
13. The primary metric unit used in engineering drawings is the ________________.
14. Which triangle shaped scale has inches divided into 10ths? ________________
