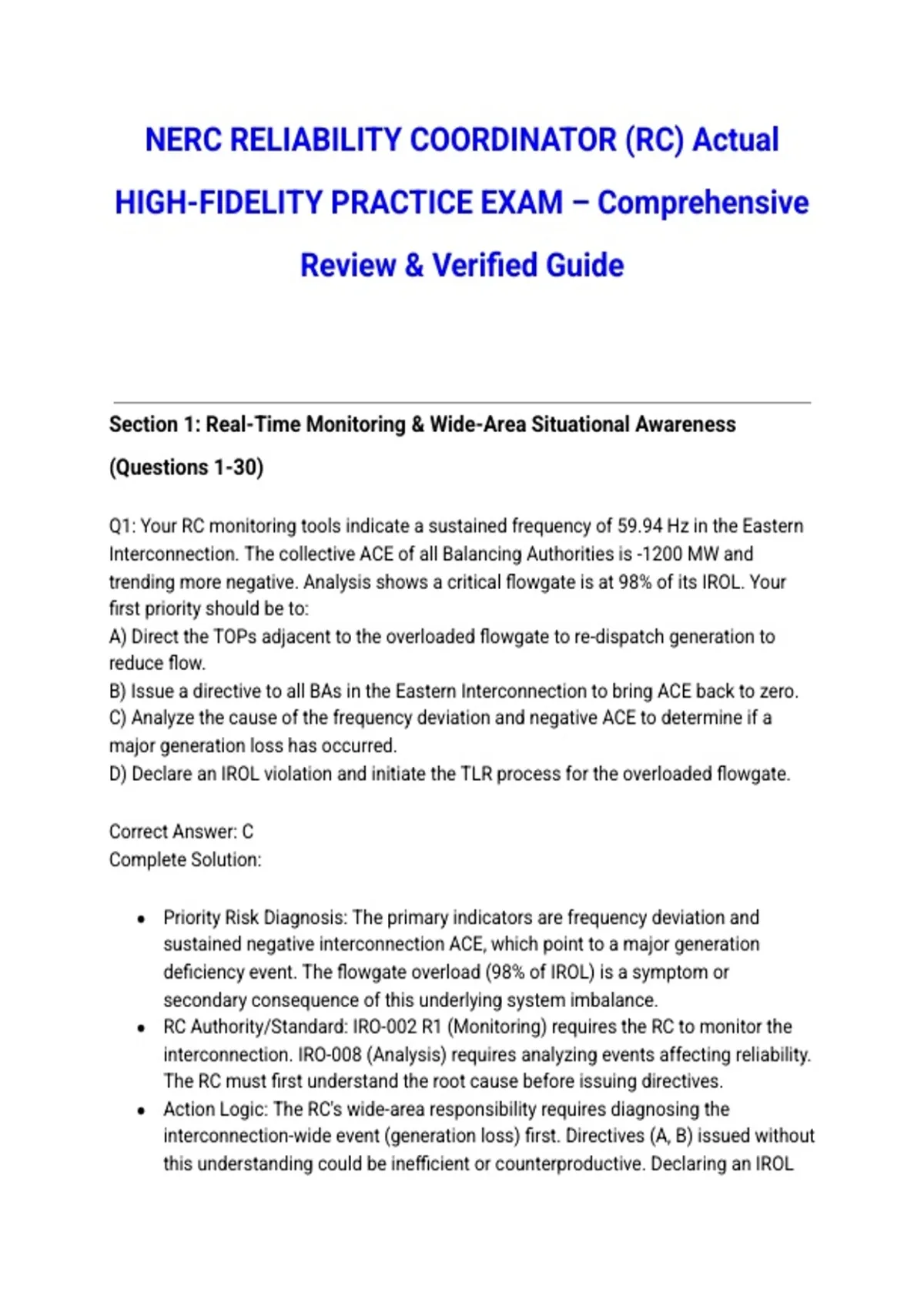

NERC RELIABILITY COORDINATOR (RC) Actual
HIGH-FIDELITY PRACTICE EXAM – Comprehensive
Review & Verified Guide
Section 1: Real-Time Monitoring & Wide-Area Situational Awareness
(Questions 1-30)
Q1: Your RC monitoring tools indicate a sustained frequency of 59.94 Hz in the Eastern
Interconnection. The collective ACE of all Balancing Authorities is -1200 MW and
trending more negative. Analysis shows a critical flowgate is at 98% of its IROL. Your
first priority should be to:
A) Direct the TOPs adjacent to the overloaded flowgate to re-dispatch generation to
reduce flow.
B) Issue a directive to all BAs in the Eastern Interconnection to bring ACE back to zero.
C) Analyze the cause of the frequency deviation and negative ACE to determine if a
major generation loss has occurred.
D) Declare an IROL violation and initiate the TLR process for the overloaded flowgate.
Correct Answer: C
Complete Solution:
● Priority Risk Diagnosis: The primary indicators are frequency deviation and
sustained negative interconnection ACE, which point to a major generation
deficiency event. The flowgate overload (98% of IROL) is a symptom or
secondary consequence of this underlying system imbalance.
● RC Authority/Standard: IRO-002 R1 (Monitoring) requires the RC to monitor the
interconnection. IRO-008 (Analysis) requires analyzing events affecting reliability.
The RC must first understand the root cause before issuing directives.
● Action Logic: The RC's wide-area responsibility requires diagnosing the
interconnection-wide event (generation loss) first. Directives (A, B) issued without
this understanding could be inefficient or counterproductive. Declaring an IROL
, violation (D) is premature when the flowgate is not yet in violation and the
overload is likely due to the unsettled system state.
● Distractor Debrief:
○ A) Treats Symptom, Not Cause. Re-dispatching for a flowgate may be
needed, but without understanding the generation loss, you may worsen
the frequency/ACE problem.
○ B) Ineffective Broad Directive. Ordering all BAs to adjust ACE does not
identify or correct the source of the imbalance and may not be feasible if
the loss is within a single BA's area.
○ D) Procedurally Incorrect. An IROL violation is declared at 100% or greater.
Initiating TLR is a specific process for transmission overloads, not the first
response to a generation-loss event.
Q2: Your state estimator shows declining voltages (0.92 pu and falling) across a 345 kV
corridor. Reactive reserves in the region are below 50% of maximum. A major generator
providing VAR support is approaching its maximum reactive limit. The next contingency
analysis indicates loss of the largest generator would result in voltages below 0.85 pu.
Your immediate assessment should prioritize:
A) Increasing the interchange schedule to import more power into the
voltage-constrained area
B) Directing the local TOP to switch in shunt capacitors and potentially block
interchanges into the area
C) Issuing a TLR to curtail non-firm transmission service
D) Requesting the BA to increase generation dispatch to raise the area ACE
Correct Answer: B
Complete Solution:
● Priority Risk Diagnosis: The scenario describes incipient voltage collapse or
voltage instability. Low voltage + exhausted reactive reserves + post-contingent
voltage violation = imminent instability risk.
● RC Authority/Standard: IRO-002 R2 requires the RC to monitor IROLs and SOLs.
Voltage limits are SOLs/IROLs. The RC has authority under IRO-008 to direct
actions to prevent voltage violations.
● Action Logic: Voltage collapse is prevented by increasing reactive supply
(capacitors, synchronous condensers) and reducing reactive demand (blocking
additional loads or imports that stress the system). Increasing MW imports (A)
, worsens voltage drop (line loading consumes VARs). Increasing generation (D)
without VAR support may not help voltage.
● Distractor Debrief:
○ A) Worsens Instability. Increasing MW flow into a voltage-constrained area
increases reactive losses (I²X), further depressing voltage.
○ C) Too Slow/Indirect. TLR manages thermal or flow limits, not immediate
voltage emergencies. Capacitor switching is immediate.
○ D) Inadequate Response. Real power dispatch doesn't address reactive
power deficiency causing voltage decline.
Q3: Your wide-area monitoring system (WAMS) indicates oscillatory behavior with
growing magnitude (0.3 Hz) between northern and southern regions of your RC area.
Frequencies are diverging between regions. Post-contingent analysis shows a 500 kV
line trip would result in angular separation exceeding 90 degrees. The system is
currently stable but trending toward instability. You should:
A) Monitor the situation and wait for the oscillations to dampen naturally
B) Immediately direct all generators to maximum output to strengthen the grid
C) Initiate emergency procedures including potential controlled separation or generation
redispatch to break the power transfer
D) Declare an EEA Level 3 and begin rotating blackouts
Correct Answer: C
Complete Solution:
● Priority Risk Diagnosis: Transient or Small-Signal Instability growing oscillations
indicate negative damping. The 90-degree separation prediction indicates the
system is approaching transient stability limits.
● RC Authority/Standard: IRO-002 R1 (monitor for instability). IRO-008 requires
analysis and action to prevent instability. The RC may direct emergency actions
to prevent uncontrolled separation.
● Action Logic: Growing oscillations require immediate intervention: breaking the
transfer interface (reducing power flow across the boundary), applying braking
resistors if available, or controlled separation as last resort. Waiting (A) risks
uncontrolled cascading separation. Max generation (B) could worsen angular
separation if out of phase.
● Distractor Debrief:
○ A) Dangerous Passivity. Growing oscillations indicate instability; natural
damping is insufficient.
, ○ B) Counterproductive. Increasing generation without regard to phase angle
or location can worsen the angular separation.
○ D) Premature. EEA Level 3 is for capacity shortages, not stability issues.
Load shedding might be used but not via EEA procedure.
Q4: Frequency is declining through 59.85 Hz following a major generation loss. Your
UFLS (Under-Frequency Load Shedding) scheme has automatically shed Stage 1 (59.3
Hz) and Stage 2 (59.0 Hz) blocks. Frequency arrests at 59.4 Hz but is not recovering
despite all available spinning reserve being deployed. ACE is negative 800 MW. You
should:
A) Declare that the emergency is over since frequency arrested above UFLS Stage 3
setpoint
B) Immediately direct the BA to implement additional manual load shedding to restore
frequency to 60 Hz
C) Monitor for 10 minutes to see if frequency recovers naturally
D) Initiate TLR Level 5 to curtail firm transmission
Correct Answer: B
Complete Solution:
● Priority Risk Diagnosis: Frequency Stagnation after UFLS activation indicates
generation deficiency exceeds reserve capacity. The system is in a precarious
equilibrium; any additional loss will trigger further UFLS or collapse.
● RC Authority/Standard: IRO-002 R2 and BAL-002 require maintaining frequency.
EOP-006 addresses emergency operations. The RC has authority to direct
additional load shedding beyond automatic schemes if reserves are exhausted.
● Action Logic: UFLS is the last automatic defense. If frequency hangs below
normal after all reserves are used, manual load shedding is required to restore
frequency to 60 Hz and release contingency reserve. Waiting risks further decay.
● Distractor Debrief:
○ A) False Security. Arresting below 59.5 Hz with no recovery margin is not a
stable state.
○ C) Unacceptable Delay. 10 minutes of low frequency risks equipment
damage and further generation tripping (voltage regulator action, etc.).
○ D) Irrelevant. TLR manages transmission loading, not generation/load
imbalance affecting frequency.
