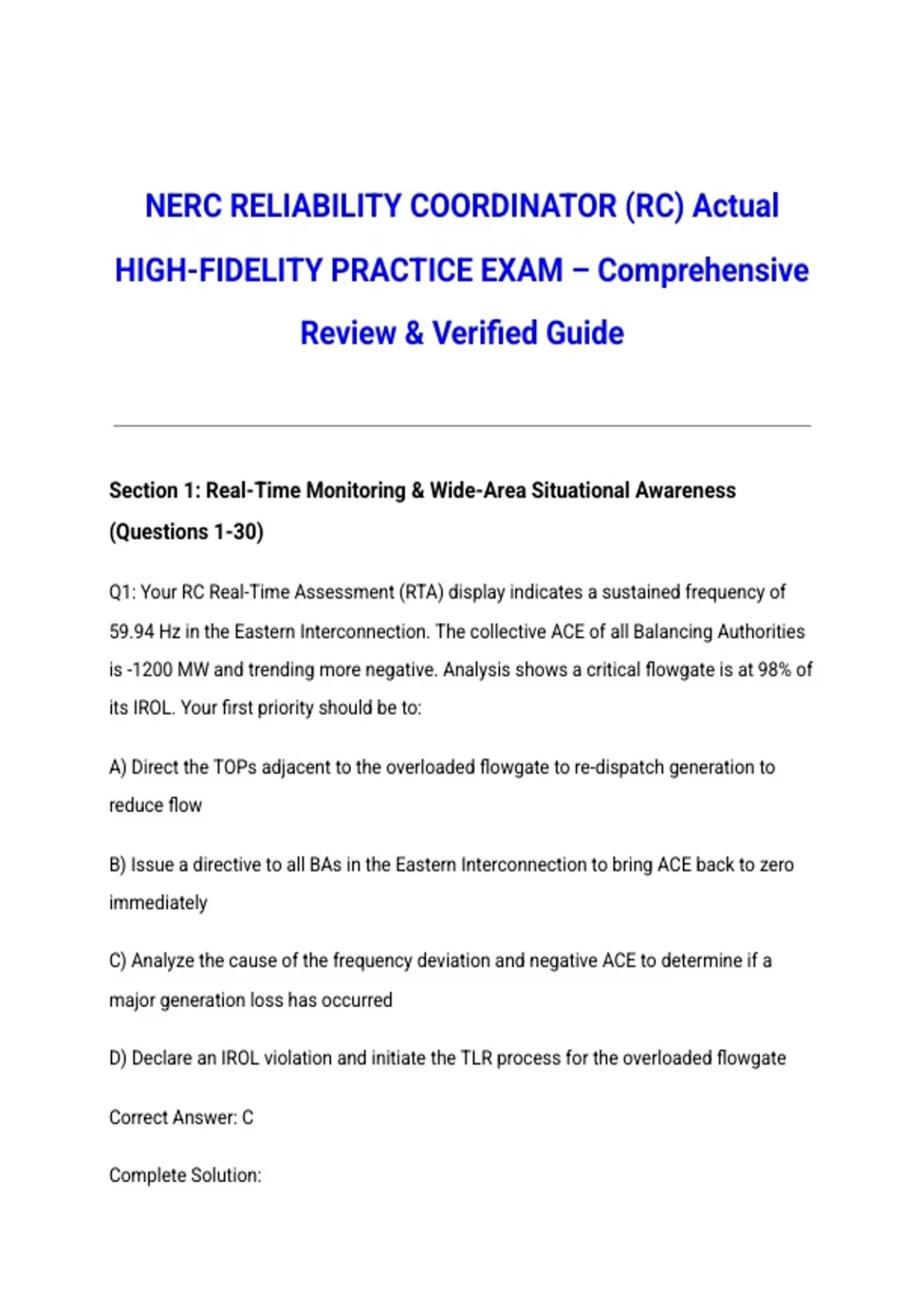

NERC RELIABILITY COORDINATOR (RC) Actual
HIGH-FIDELITY PRACTICE EXAM – Comprehensive
Review & Verified Guide
Section 1: Real-Time Monitoring & Wide-Area Situational Awareness
(Questions 1-30)
Q1: Your RC Real-Time Assessment (RTA) display indicates a sustained frequency of
59.94 Hz in the Eastern Interconnection. The collective ACE of all Balancing Authorities
is -1200 MW and trending more negative. Analysis shows a critical flowgate is at 98% of
its IROL. Your first priority should be to:
A) Direct the TOPs adjacent to the overloaded flowgate to re-dispatch generation to
reduce flow
B) Issue a directive to all BAs in the Eastern Interconnection to bring ACE back to zero
immediately
C) Analyze the cause of the frequency deviation and negative ACE to determine if a
major generation loss has occurred
D) Declare an IROL violation and initiate the TLR process for the overloaded flowgate
Correct Answer: C
Complete Solution:
, ● Diagnose the Priority Reliability Risk: The primary indicators are frequency
deviation (59.94 Hz) and sustained negative interconnection ACE (-1200 MW),
which point to a major generation deficiency event. The flowgate loading (98% of
IROL) is a symptom or secondary consequence of this underlying system
imbalance, not the root cause.
● Cite the RC Authority/Standard: IRO-002-2 R1 requires the RC to monitor the Bulk
Electric System (BES). IRO-008-2 R1 requires the RC to analyze system events
affecting reliability. The RC must first understand the root cause (generation loss
location and magnitude) before issuing targeted directives.
● Execute the Action Logic: The RC's wide-area responsibility requires diagnosing
the interconnection-wide event first. Directives issued without understanding the
generation loss location (A, B) could be inefficient or counterproductive (e.g.,
re-dispatching the wrong area). Declaring an IROL violation (D) is premature
when the flowgate is not yet at 100% or greater, and the overload is likely a
symptom of the unsettled frequency/ACE condition.
● Debrief Each Distractor:
○ A) Treats Symptom, Not Cause. Re-dispatching for a flowgate may be
needed later, but without understanding the generation loss, the RC may
worsen the frequency/ACE problem or issue ineffective orders.
○ B) Ineffective Broad Directive. Ordering all BAs indiscriminately to adjust
ACE fails to identify the specific source of the imbalance and violates the
principle of targeted, efficient RC coordination.
○ D) Procedurally Incorrect. An IROL violation is declared at 100% or greater.
Initiating TLR is a specific transmission relief process, not the first
response to a suspected generation-loss event.
Q2: Your wide-area monitoring system shows the Western Interconnection experiencing
a 0.08 Hz/min rising frequency rate. ACE is collectively +850 MW. A major tie-line
between two RC areas shows a sudden 400 MW increase in flow toward your RC area.
Simultaneously, three voltage plots in the receiving area show declining trends (0.95 pu
and falling). Your immediate concern is:
A) Impending transmission overload on the tie-line requiring TLR initiation
B) Potential voltage collapse in the receiving area due to reactive power deficiency
,C) Generation excess in the Western Interconnection requiring immediate generation
rejection
D) Cascading separation of the Eastern and Western Interconnections
Correct Answer: B
Complete Solution:
● Diagnose the Priority Reliability Risk: The combination of heavy importing (400
MW inflow) with declining voltage profiles (0.95 pu and falling) indicates a
reactive power deficiency in the receiving area. The rising frequency (+850 MW
ACE) suggests generation excess elsewhere, but the immediate threat is local
voltage instability/collapse in the affected area.
● Cite the RC Authority/Standard: IRO-002-2 R1 requires monitoring of voltage
levels and equipment loading. IRO-008-2 requires analysis of conditions that
could lead to instability, including voltage collapse.
● Execute the Action Logic: Voltage collapse can occur within seconds to minutes
and is not self-correcting. While the frequency deviation (C) and tie-line loading
(A) are concerns, the voltage decline combined with heavy power import
indicates the receiving area cannot support the reactive power demand. The RC
must immediately assess the need for voltage support (capacitor switching,
reactive dispatch) or load shedding to prevent collapse.
● Debrief Each Distractor:
○ A) Secondary Priority. While the tie-line is heavily loaded, the voltage
decline indicates the receiving system is already in distress; managing
voltage takes precedence over managing the transmission loading.
○ C) Misdiagnosed Location. The generation excess exists somewhere in
the interconnection, but the voltage decline indicates the receiving area
(sink) is the problem location, not the generation source.
○ D) Implausible Scenario. There is no indication of a system separation
between Eastern and Western Interconnections; this is an internal Western
Interconnection stability issue.
Q3: As RC, you observe a simultaneous trip of two 500 kV lines forming a double-circuit
tower configuration. Pre-contingency flow on each circuit was 1200 MW.
, Post-contingency, parallel paths show loading at 95% of SOL. Voltage in the area
dropped from 1.02 pu to 0.98 pu. No IROLs exist on the parallel paths. Your next action
should be:
A) Declare an IROL violation and issue emergency operational orders
B) Direct the local TOP to initiate immediate load shedding
C) Initiate TLR Level 3 to redispatch generation and relieve the parallel paths
D) Monitor the parallel paths for potential cascading overloads and coordinate with the
TOP for system adjustments
Correct Answer: D
Complete Solution:
● Diagnose the Priority Reliability Risk: The contingency resulted in
post-contingency loading at 95% of SOL (not IROL) with voltage at 0.98 pu (within
acceptable emergency limits). This represents a secure but constrained system
state requiring monitoring and potential adjustment, not an emergency.
● Cite the RC Authority/Standard: IRO-002-2 requires monitoring of SOLs and
IROLs. IRO-008-2 requires analysis of system conditions. SOL violations require
coordination, not mandatory emergency directives (unless they become IROLs).
● Execute the Action Logic: The system is operating within limits (95% SOL, 0.98 pu
voltage). The RC's role is to ensure the TOP addresses the SOL loading through
normal operational procedures while monitoring for additional contingencies that
could create IROL violations. TLR (C) is inappropriate for SOL violations, and
emergency orders (A, B) are excessive for current conditions.
● Debrief Each Distractor:
○ A) Standard Misapplication. No IROL exists; declaring a violation is
factually incorrect and procedurally improper.
○ B) Excessive Response. Load shedding is reserved for imminent collapse,
voltage below 0.90 pu, or IROL violations with no other alternatives; 0.98
pu and 95% SOL do not meet this threshold.
○ C) Procedural Error. TLR is initiated for IROL exceedances or specific
market flow management per IRO-010, not for SOL management.
