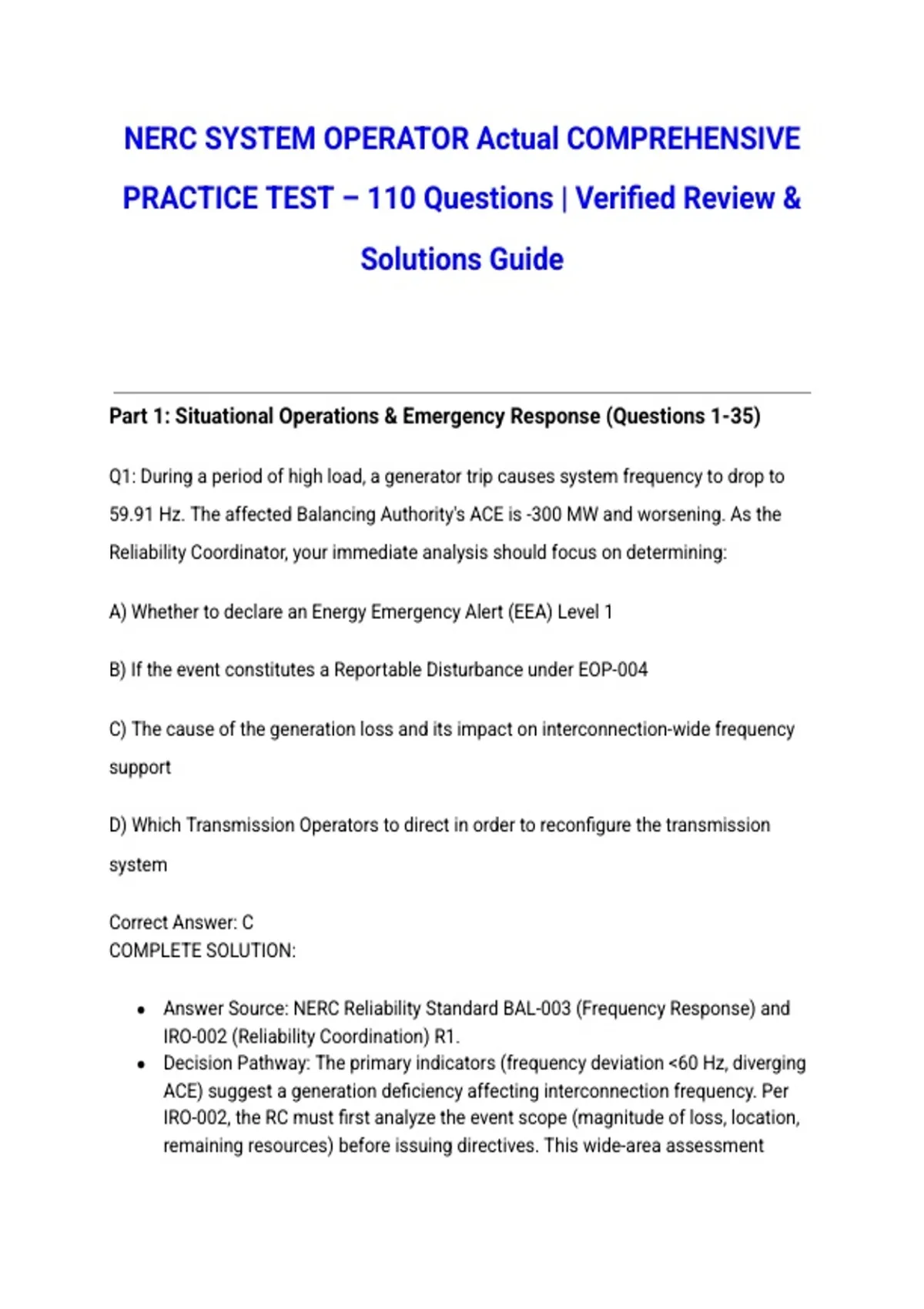

NERC SYSTEM OPERATOR Actual COMPREHENSIVE
PRACTICE TEST – 110 Questions | Verified Review &
Solutions Guide
Part 1: Situational Operations & Emergency Response (Questions 1-35)
Q1: During a period of high load, a generator trip causes system frequency to drop to
59.91 Hz. The affected Balancing Authority's ACE is -300 MW and worsening. As the
Reliability Coordinator, your immediate analysis should focus on determining:
A) Whether to declare an Energy Emergency Alert (EEA) Level 1
B) If the event constitutes a Reportable Disturbance under EOP-004
C) The cause of the generation loss and its impact on interconnection-wide frequency
support
D) Which Transmission Operators to direct in order to reconfigure the transmission
system
Correct Answer: C
COMPLETE SOLUTION:
● Answer Source: NERC Reliability Standard BAL-003 (Frequency Response) and
IRO-002 (Reliability Coordination) R1.
● Decision Pathway: The primary indicators (frequency deviation <60 Hz, diverging
ACE) suggest a generation deficiency affecting interconnection frequency. Per
IRO-002, the RC must first analyze the event scope (magnitude of loss, location,
remaining resources) before issuing directives. This wide-area assessment
, determines whether the event requires interconnection-wide coordination or
localized response.
● Distractor Analysis:
○ A) Premature: EEA Level 1 is declared for capacity shortages (prospective
reserve deficiencies), not immediate post-contingency frequency
deviations.
○ B) Secondary: While EOP-004 reporting is required, it is not the immediate
operational priority during an active frequency excursion.
○ D) Action Before Analysis: Issuing transmission reconfiguration directives
without understanding the generation-loss cause could worsen the
imbalance or create additional contingencies.
Q2: A Transmission Operator reports a pre-contingent overload of 108% on a 230 kV line
(SOL = 100%, IROL not applicable). Real-time contingency analysis indicates the next
credible contingency (N-1) would push the line to 125%. Current system conditions are
stable. Frequency is 60.02 Hz. The RC should direct:
A) Immediate load shedding to relieve the overload
B) Return to compliance within 30 minutes using generation re-dispatch or transmission
reconfiguration
C) Continue operating since IROL is not exceeded
D) Declare a Transmission Loading Relief (TLR) Level 5
Correct Answer: B
COMPLETE SOLUTION:
● Answer Source: IRO-002 R2 (Reliability Coordination) and TOP-001 R6.
● Decision Pathway: While SOL violations (not IROLs) don't require the 30-minute
hard limit, the N-1 analysis shows the system is not secure for the next
contingency. The RC must ensure the SOL is returned to within limits (100%)
before the next contingency occurs. Generation re-dispatch is the preferred
method to relieve line loading.
● Distractor Analysis:
, ○ A) Excessive: Load shedding is reserved for IROL violations or capacity
emergencies, not SOL violations with time to correct.
○ C) Negligent: Operating knowingly vulnerable to the next contingency
violates the "preventive security" principle.
○ D) Procedurally Wrong: TLR addresses transmission loading constraints
for scheduled transactions; this is a real-time operational limit violation
requiring direct operational action, not market curtailment.
Q3: System frequency stabilizes at 59.88 Hz following a major generation loss. Primary
frequency response has arrested the decline, but frequency is not recovering toward 60
Hz. ACE remains negative across multiple BAs. Available spinning reserve is exhausted.
The RC should:
A) Declare EEA Level 3 and implement rotating blackouts immediately
B) Request BAs to exhaust all non-spinning supplemental reserve within 10 minutes
C) Wait for secondary frequency response (AGC) to restore frequency
D) Direct immediate manual load shedding to restore frequency to 60 Hz
Correct Answer: D
COMPLETE SOLUTION:
● Answer Source: BAL-003-1.1 (Frequency Response and Bias) and EOP-006
(Disturbance Response).
● Decision Pathway: Persistent frequency deviation (>0.1 Hz) with exhausted
spinning reserve indicates generation deficiency exceeds automatic response
capability. Per EOP-006, when automatic reserves are insufficient and frequency
hangs below standards, manual load shedding (or emergency generation
dispatch) is required to restore the interconnection to sustainable operating
conditions.
● Distractor Analysis:
○ A) Confused Standards: EEA Level 3 is for capacity deficiencies/reserve
exhaustion, but the immediate action is load relief, not just the declaration.
, ○ B) Too Slow: Non-spinning reserve takes >10 minutes; frequency cannot
remain at 59.88 Hz for that duration without risking UFLS operation or
equipment damage.
○ C) Inadequate: AGC cannot restore frequency without available regulating
reserve; the system is in emergency status requiring operator intervention.
Q4: Your Real-Time Assessment (RTA) indicates a post-contingent IROL violation on
Flowgate X (forecasted 102% of limit) would result from loss of a 500 kV line. The line is
currently in service and carrying 85% of normal rating. Voltage profiles are normal. The
most appropriate RC action is:
A) Declare the IROL violation immediately
B) Direct the TOP to remove the 500 kV line from service to prevent the contingency
C) Implement pre-contingent mitigation (generation re-dispatch) to ensure the
post-contingent state remains within limits
D) Rely on Remedial Action Schemes (RAS) to operate if the contingency occurs
Correct Answer: C
COMPLETE SOLUTION:
● Answer Source: IRO-008-2 (Real-time Transmission Analysis) and IRO-002 R2.
● Decision Pathway: The IROL violation is prospective (contingency analysis), not
actual. The RC must implement "preventive security"—taking action before the
contingency occurs to ensure that if it happens, the system remains within limits.
This is the "N-1-0" to "N-1-1" security concept.
● Distractor Analysis:
○ A) Incorrect Status: IROL violations are declared on actual
flows/conditions, not forecasted post-contingent states.
○ B) Counterproductive: Removing the line creates the contingency you are
trying to prevent, potentially while the system is unprepared.
○ D) Risky: Relying on RAS (last-line defense) when preventive action is
available violates the hierarchy of controls; RAS failure would result in
actual violation.
