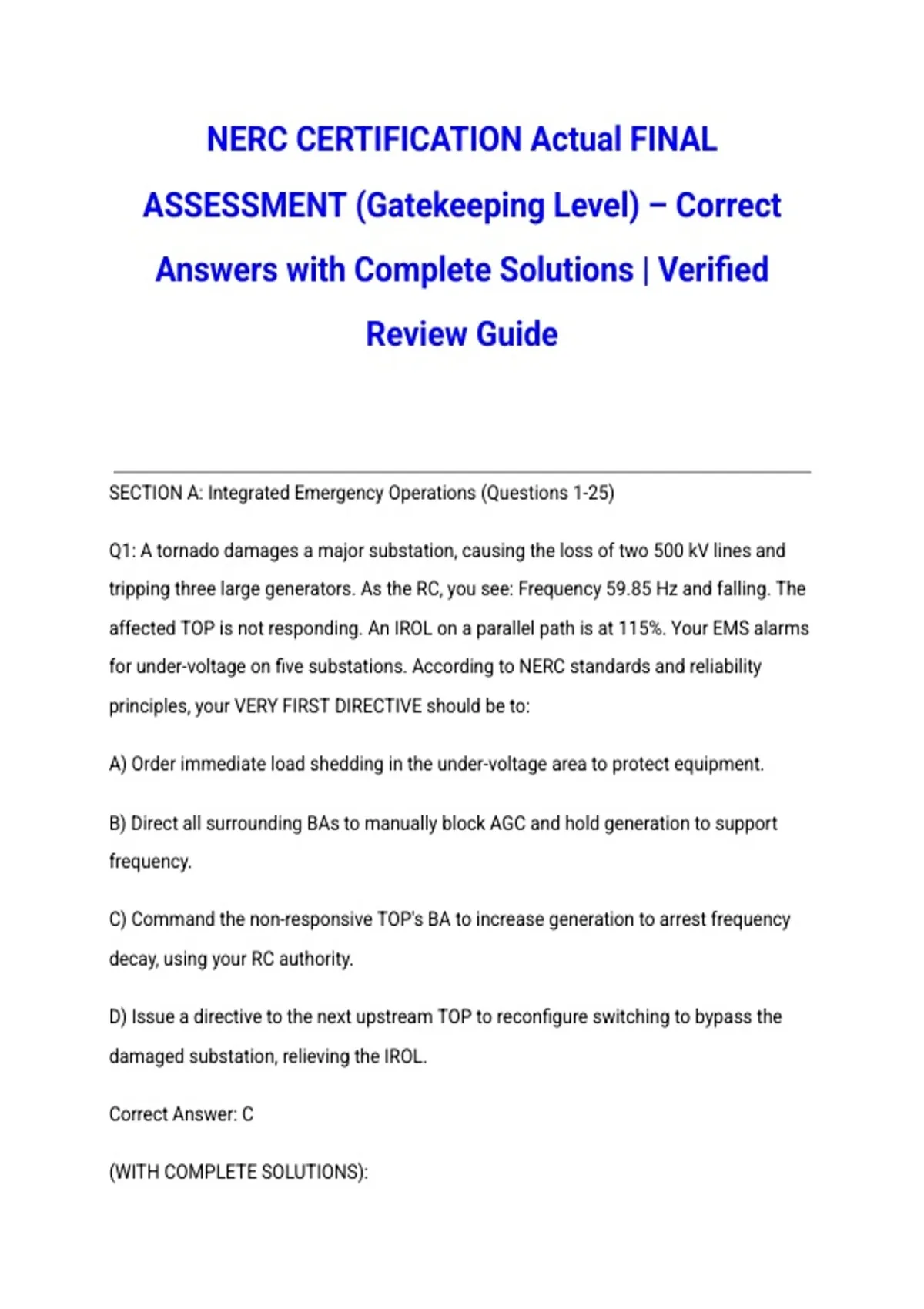

NERC CERTIFICATION Actual FINAL
ASSESSMENT (Gatekeeping Level) – Correct
Answers with Complete Solutions | Verified
Review Guide
SECTION A: Integrated Emergency Operations (Questions 1-25)
Q1: A tornado damages a major substation, causing the loss of two 500 kV lines and
tripping three large generators. As the RC, you see: Frequency 59.85 Hz and falling. The
affected TOP is not responding. An IROL on a parallel path is at 115%. Your EMS alarms
for under-voltage on five substations. According to NERC standards and reliability
principles, your VERY FIRST DIRECTIVE should be to:
A) Order immediate load shedding in the under-voltage area to protect equipment.
B) Direct all surrounding BAs to manually block AGC and hold generation to support
frequency.
C) Command the non-responsive TOP's BA to increase generation to arrest frequency
decay, using your RC authority.
D) Issue a directive to the next upstream TOP to reconfigure switching to bypass the
damaged substation, relieving the IROL.
Correct Answer: C
(WITH COMPLETE SOLUTIONS):
, ● Scenario Deconstruction: The paramount, immediate threat is frequency collapse
(59.85 Hz and falling). This is an interconnection-wide stability emergency. The
IROL violation and voltage issues are secondary symptoms caused by the loss of
infrastructure and generation. The TOP's unresponsiveness escalates the crisis.
● Standards Hierarchy Application: BAL-003 (Frequency Response) is the primary
standard for frequency events. During an emergency, the RC's authority under
IRO-002 (Reliability Coordination - Monitoring) and IRO-008 (Reliability
Coordination - Analysis) to issue directives to any entity is paramount to preserve
reliability.
● Decision Logic Reconstruction:
○ Priority 1: Arrest frequency decay. This requires immediate additional
generation.
○ Action: The most direct, controllable action is to order the BA whose
resources are electrically closest to the generation loss to increase output.
The RC has this authority, especially with the TOP non-responsive.
○ Why Not Others: Load shedding (A) worsens frequency. Blocking AGC (B)
removes automatic response, making the problem worse. Reconfiguring
transmission (D) is a complex, time-consuming action that does not
address the core energy deficit causing the frequency drop.
● Distractor Forensic Analysis:
○ A) Treats Symptom, Ignores Root Cause. Load shedding addresses
voltage but exacerbates the generation deficiency, accelerating frequency
drop.
○ B) Violates BAL-003 Principles. Manually blocking AGC during a frequency
event is contraindicated; AGC is needed to help restore frequency.
○ D) Mis-prioritizes. Transmission reconfiguration is critical but is a Step 2
or 3 action after stabilizing frequency. It cannot be executed fast enough
to address the millisecond-to-minute frequency crisis.
Q2: During a severe winter storm, you are the RC monitoring a region where:
● Temperatures dropped 40°F in 6 hours (unforecasted)
● Gas pipeline compressors are failing due to cold, reducing fuel supply to 2,400
MW of gas-fired generation
● Wind generation is frozen and producing 150 MW instead of forecasted 3,000
MW
● Frequency is 59.93 Hz and declining slowly
● Three BAs are showing Area Control Error (ACE) trending negative
simultaneously
,Your EMS shows available spinning reserve is 800 MW, but the Disturbance Control
Reserve (DCR) requirement for the largest contingency (n-1) is 1,200 MW. The next
largest generator is 600 MW. Under BAL-002 and emergency operations protocols, your
immediate action must be:
A) Declare a resource emergency and order voltage reductions only in the affected BAs
B) Invoke Contingency Reserve sharing immediately and direct restoration of DCR to
1,200 MW
C) Direct all BAs to go to manual control, freezing ACE at current values to prevent
further degradation
D) Order public appeals for conservation and implement 5% voltage reductions across
the interconnection
Correct Answer: B
(WITH COMPLETE SOLUTIONS):
● Scenario Deconstruction: This is a reserves crisis compounded by multiple
correlated failures (cold weather affecting gas and wind simultaneously).
Frequency at 59.93 Hz indicates insufficient generation to match load. The DCR
deficit (400 MW shortfall) means the system is vulnerable to a single
contingency causing load loss. Multiple negative ACEs indicate BAs are already
drawing on reserves unsustainably.
● Standards Hierarchy Application: BAL-002-3 R2 requires adequate Disturbance
Control Reserve to cover the most severe single contingency. When reserves are
depleted, EOP-011 procedures for reserve restoration apply. The RC's authority
under IRO-001 allows directing immediate reserve restoration.
● Decision Logic Reconstruction:
○ Assess Vulnerability: Current reserve shortfall (800 MW available vs 1,200
MW required) violates BAL-002.
○ Immediate Need: Restore DCR to compliant levels before another
contingency occurs.
, ○ Mechanism: Contingency Reserve sharing is the approved mechanism to
pool reserves across BA boundaries during shortages.
○ Why B: This addresses the root cause (reserve inadequacy) using
established protocols.
● Distractor Forensic Analysis:
○ A) Insufficient and Misdirected. Voltage reductions provide modest relief
(typically 1-2% load reduction) but do not address the BAL-002 violation.
"Only in affected BAs" ignores the interconnection-wide nature of the
reserve shortfall.
○ C) Counterproductive. Freezing ACE prevents BAs from correcting
frequency deviations. Manual control during declining frequency removes
automatic response mechanisms.
○ D) Delayed and Excessive Scope. Public appeals take hours to manifest.
Interconnection-wide voltage reduction without discrimination violates the
principle of proportionate response and could destabilize unaffected
areas.
Q3: A cyber attack has compromised the ICCP links between your RC control center and
three neighboring TOPs. Simultaneously, a severe thunderstorm causes a 345 kV line to
trip, creating an SOL violation on a parallel line. You have voice communication via
backup phone lines. The affected TOP claims they cannot relieve the SOL violation
without transferring load to the compromised communication circuits. Under EOP-008
and COM-001, the legally defensible action is to:
A) Authorize the SOL relief using the compromised circuits, documenting the cyber
emergency exception
B) Direct the TOP to maintain the SOL violation while manually verifying switching
operations via phone
C) Order immediate manual load shedding to relieve the SOL rather than risk
cyber-compromised operations
D) Direct the TOP to utilize the compromised ICCP with enhanced monitoring, as SOL
violations take precedence over cyber protocols
