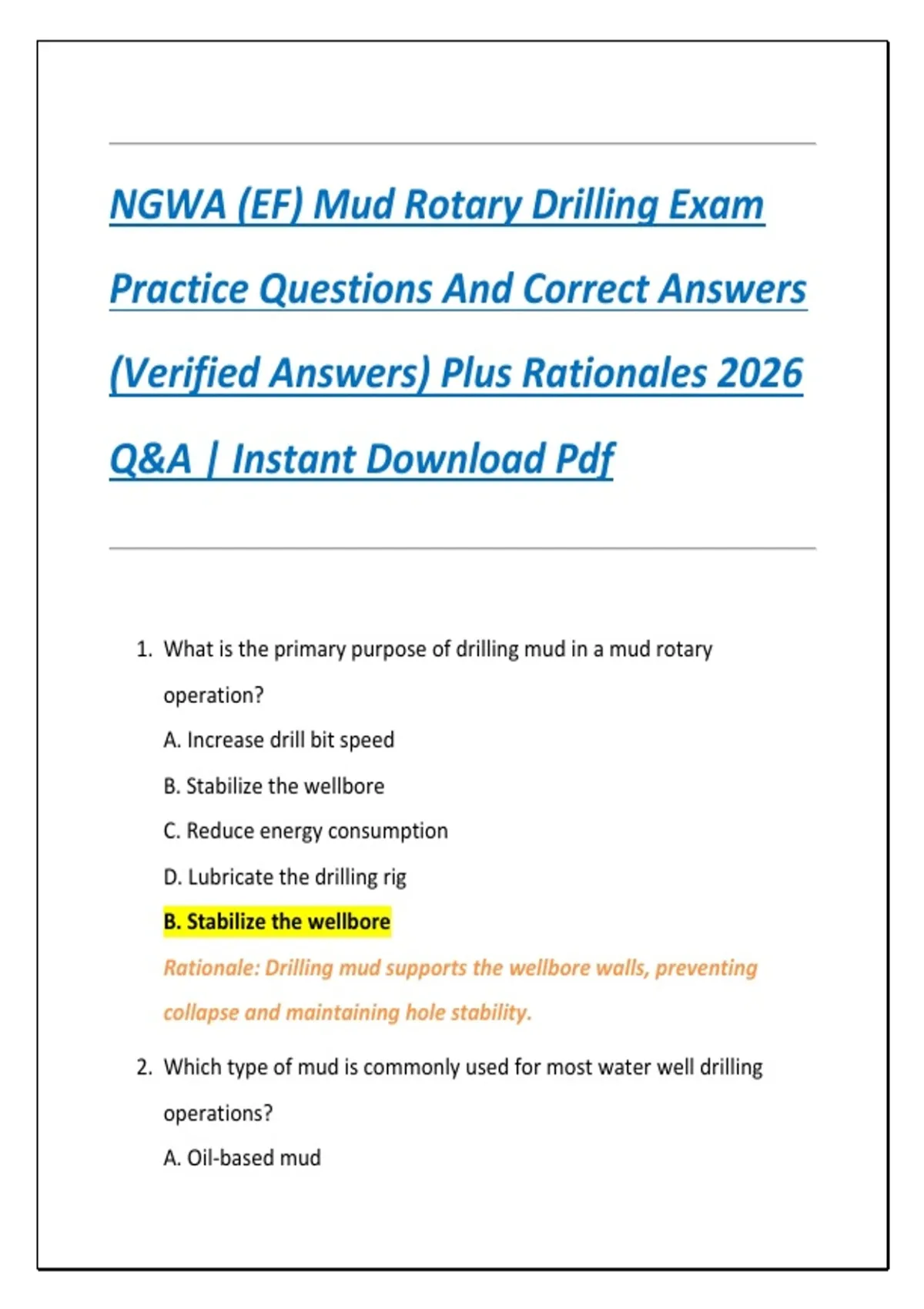

NGWA (EF) Mud Rotary Drilling Exam
Practice Questions And Correct Answers
(Verified Answers) Plus Rationales 2026
Q&A | Instant Download Pdf
1. What is the primary purpose of drilling mud in a mud rotary
operation?
A. Increase drill bit speed
B. Stabilize the wellbore
C. Reduce energy consumption
D. Lubricate the drilling rig
B. Stabilize the wellbore
Rationale: Drilling mud supports the wellbore walls, preventing
collapse and maintaining hole stability.
2. Which type of mud is commonly used for most water well drilling
operations?
A. Oil-based mud
, B. Air drilling
C. Water-based bentonite mud
D. Synthetic polymer mud
C. Water-based bentonite mud
Rationale: Bentonite mud is widely used because it provides good
hole cleaning, wellbore support, and is cost-effective.
3. What property of drilling mud prevents fluid loss into the formation?
A. Viscosity
B. Filtrate control
C. Density
D. pH
B. Filtrate control
Rationale: Filtrate control additives reduce the amount of mud
filtrate lost into the formation, protecting the formation and
improving drilling efficiency.
4. Excessive mud weight can cause which of the following?
A. Hole collapse
B. Formation fracturing
C. Bit wear
D. Loss of circulation
B. Formation fracturing
Rationale: Mud that is too heavy can fracture weak formations,
resulting in lost circulation.
,5. Which type of drill bit is most commonly used in soft to medium
formations?
A. Diamond bit
B. Tri-cone roller bit
C. Drag bit
D. PDC bit
C. Drag bit
Rationale: Drag bits are effective in softer formations due to their
scraping action.
6. What is the purpose of adding barite to drilling mud?
A. Lubrication
B. Increase mud density
C. Reduce viscosity
D. Kill bacteria
B. Increase mud density
Rationale: Barite is a weighting agent used to increase the density of
drilling mud, which helps control formation pressures.
7. When should a mud engineer test mud properties?
A. Before drilling only
B. After drilling only
C. Continuously throughout drilling
D. Only at the end of drilling
C. Continuously throughout drilling
, Rationale: Continuous testing ensures mud properties remain within
specifications to maintain wellbore stability and optimize drilling.
8. Which mud property is measured by a Marsh funnel?
A. Density
B. Viscosity
C. pH
D. Sand content
B. Viscosity
Rationale: Marsh funnel tests provide a quick measurement of mud
viscosity and flow characteristics.
9. What is the main function of a shale shaker in a mud rotary rig?
A. Increase mud density
B. Remove cuttings from drilling fluid
C. Mix chemicals into mud
D. Maintain drill pipe rotation
B. Remove cuttings from drilling fluid
Rationale: The shale shaker separates rock cuttings from the drilling
fluid to keep mud clean and reusable.
10. What is the purpose of weighting materials in drilling mud?
A. Increase penetration rate
B. Control formation pressure
C. Reduce bit wear
D. Lubricate drill pipe
