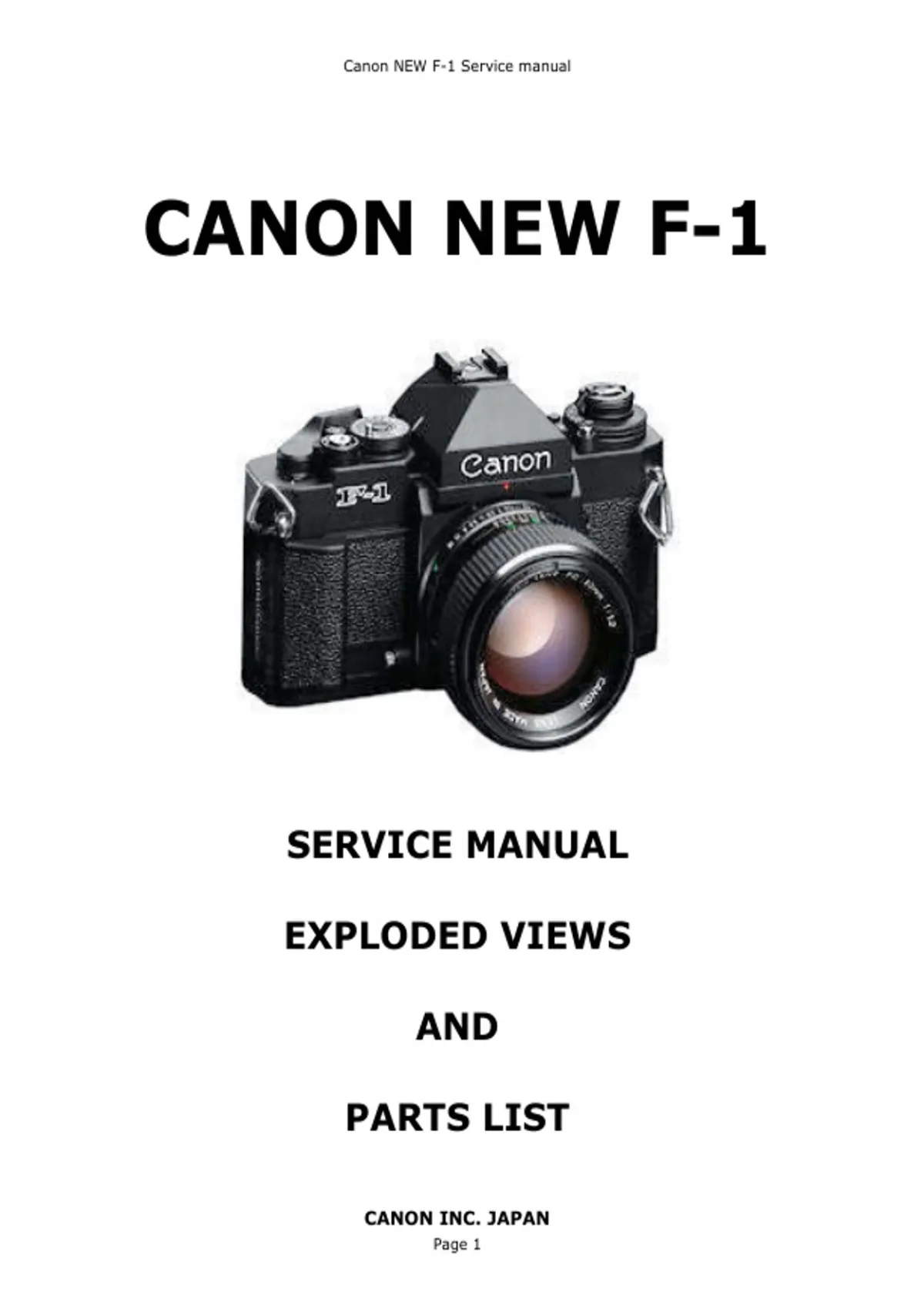

Canon NEW F-1 Service manual
CANON NEW F-1
SERVICE MANUAL
EXPLODED VIEWS
AND
PARTS LIST
CANON INC. JAPAN
Page 1
, Canon NEW F-1 Service manual
Contents
1. SWITCH POSITION AND NOMENCLATURE ............................................................................................... 4
2. COVERS ................................................................................................................................................................ 6
3. FRONT PANEL UNIT ATTACHMENT AND REMOVAL .......................................................................... 10
4. FRONT BODY .................................................................................................................................................... 12
5. UPPER BODY (WINDING SIDE)..................................................................................................................... 16
6. TUNGSTEN CABLE ADJUSTMENT .............................................................................................................. 19
7. SPOOL ................................................................................................................................................................. 20
8. SPROCKET ......................................................................................................................................................... 22
9. CHECKS AND ADJUSTMENTS ...................................................................................................................... 23
10. UPPER BODY (REWIND SIDE)................................................................................................................... 31
11. LOWER BODY (I) .......................................................................................................................................... 34
12. LOWER BODY LUBRICATION.................................................................................................................. 38
13. LOWER BODY (II) ........................................................................................................................................ 39
14. ELECTRICAL ADJUSTMENTS .................................................................................................................. 42
15. FRONT PANEL UNIT ASSEMBLY AND DISASSEMBLY...................................................................... 50
16. EYE LEVEL FINDER .................................................................................................................................... 61
17. MOISTURE RESISTANT TREATMENT ................................................................................................... 66
18. WATER RESISTANT TREATMENT.......................................................................................................... 68
19. SHUTTER SPEED VARIATIONS................................................................................................................ 70
20. SERVICE TOOLS LIST................................................................................................................................. 71
21. TROUBLESHOOTING CHARTS ................................................................................................................ 74
22. PARTS LISTS.................................................................................................................................................. 89
Page 2
, Canon NEW F-1 Service manual
Introduction
The NEW F-1 is the base of a completely new Integrated Functional System. It is based on
the original F-1 but utilizing many advances in electronics, precision machining and precision
optics made since the original F-1 was developed ten years ago.
The following considerations should be kept in mind when repairing the New F-1:
1. To maintain complete interchangeability between the camera body and the system
accessories, repair personnel must understand the interfaces (mechanical
and electronic) between the body and accessories. They must also be familiar with
repair standards, checking, adjustment and tools maintenance procedures.
2. Preventive maintenance (lubrication, adjustment and parts replacement) are
necessary to insure the reliability of the NEW F-1.
Special Repair Instructions
1. Many of the electrical contacts in the camera are molded into plastic insulators.
When making solder connections, the soldering time should be kept as short as
possible.
2. 3% silver solder should be used to solder the IC's.
3. Many bearing balls are used in the winding mechanism. Be careful during assembly
and disassembly to insure that no balls get lost in surrounding mechanisms.
4. When the rewind crank is not installed, if the rewind shaft is pushed down past a
certain point it becomes impossible to open the back cover without removing
certain parts that normally need not be removed. This results in lost time.
5. Be sure that the elastic connectors used to connect the flexible and rigid circuit
boards are kept clean and free of contamination.
6. The water and moisture proofing complicates many repair procedures. Take care
that they are correctly performed
7. If the tungsten cable is kinked or frayed, repair is difficult and time-consuming. It is
much more cost efficient to be careful to not damage the cable than to repair or
replace it.
8. The correct adjustment of the AV AE shutter speed indicator output resistor (RM
TV2) and the TV AE aperture determination resistor (RAE) are basic to maintaining
system interchangeability.
Page 3
, Canon NEW F-1 Service manual
1. Switch position and nomenclature
Name Operation
SW1 Metering Switch ON: Metering activated
SW2 Release Switch ON: Starts Release sequence
SW4 Count Switch OFF: Shutter exposure timing starts
SW5 Winding Complete Switch OFF: Winding complete
SW6 Stop-down (S.D.) Switch ON: Stopped-down (ganged with SWll1)
SW7 Self Timer Switch ON: Self timer activated
SW8 Battery Check Switch ON: Battery Check
SWll Lens A-M Switch. ON: Lens set to "a" mark
SW1l' Stop-down switch OFF: Lens stopped down
SW12 Bulb switch OFF: "Bulb" shutter speed
SW14 Timer Switch ON: Timer Activated
SW15 Lamp Switch ON: Viewfinder illumination on
SW16 X Sync Switch ON: 1st curtain open; OFF: Winding complete
SW16' Safety Switch ON: Mirror up; OFF: Mirror down
SW17 Film End Switch ON: No film on take-up spool
SW18 2nd Curtain Switch OFF: When 2nd curtain starts
Page 4
