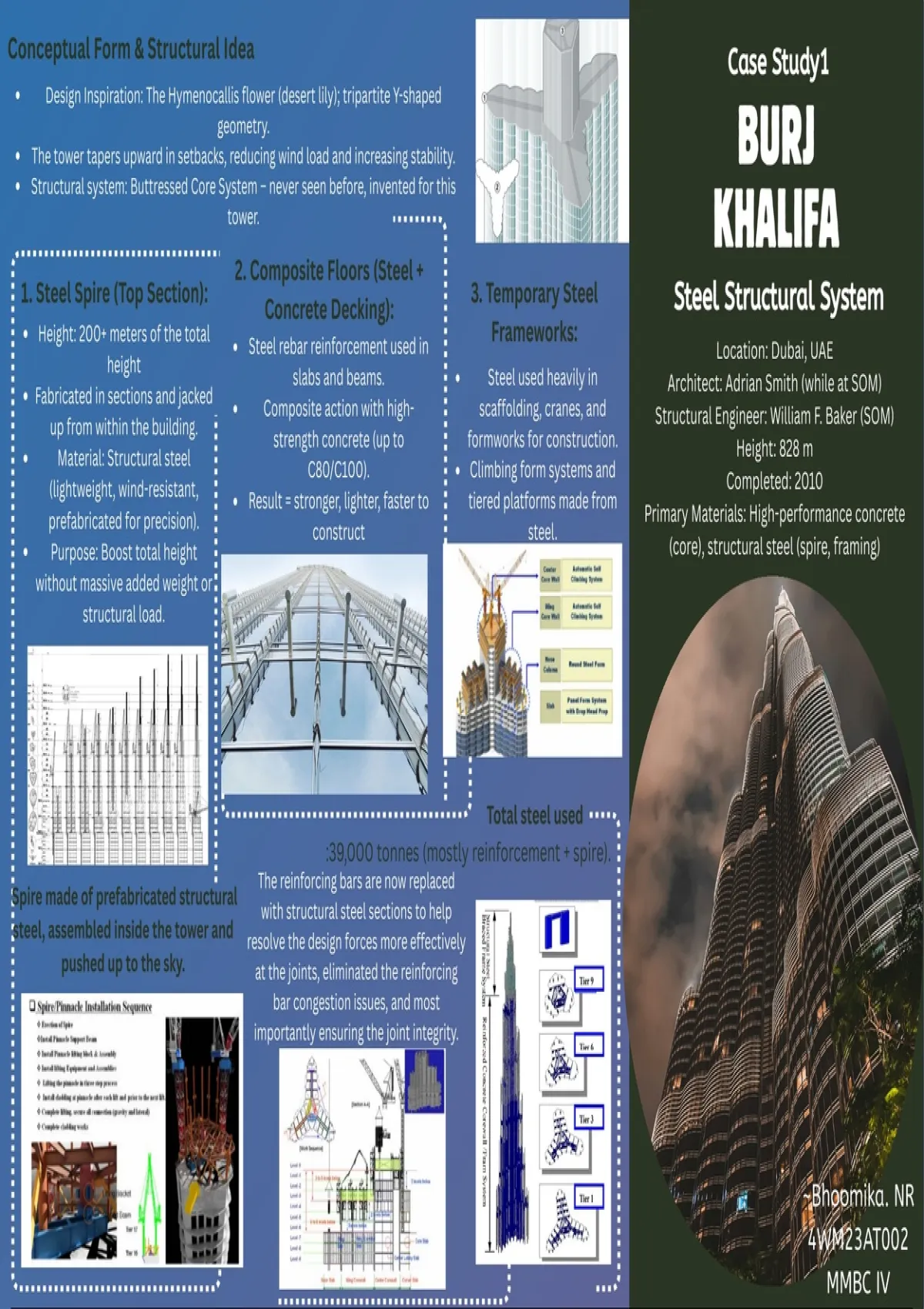

Conceptual Form & Structural Idea
Case Study1
Design Inspiration: The Hymenocallis flower (desert lily); tripartite Y-shaped
geometry.
The tower tapers upward in setbacks, reducing wind load and increasing stability. BURJ
KHALIFA
Structural system: Buttressed Core System – never seen before, invented for this
tower.
2. Composite Floors (Steel +
1. Steel Spire (Top Section): 3. Temporary Steel Steel Structural System
Concrete Decking):
Height: 200+ meters of the total
Steel rebar reinforcement used in
Frameworks:
Location: Dubai, UAE
height
slabs and beams. Steel used heavily in Architect: Adrian Smith (while at SOM)
Fabricated in sections and jacked
Composite action with high- scaffolding, cranes, and Structural Engineer: William F. Baker (SOM)
up from within the building.
strength concrete (up to formworks for construction. Height: 828 m
Material: Structural steel
C80/C100). Climbing form systems and
(lightweight, wind-resistant, Completed: 2010
Result = stronger, lighter, faster to tiered platforms made from
prefabricated for precision). Primary Materials: High-performance concrete
construct steel.
Purpose: Boost total height (core), structural steel (spire, framing)
without massive added weight or
structural load.
Total steel used
:39,000 tonnes (mostly reinforcement + spire).
The reinforcing bars are now replaced
Spire made of prefabricated structural
with structural steel sections to help
steel, assembled inside the tower and resolve the design forces more effectively
pushed up to the sky. at the joints, eliminated the reinforcing
bar congestion issues, and most
importantly ensuring the joint integrity.
~Bhoomika. NR
4WM23AT002
MMBC IV
