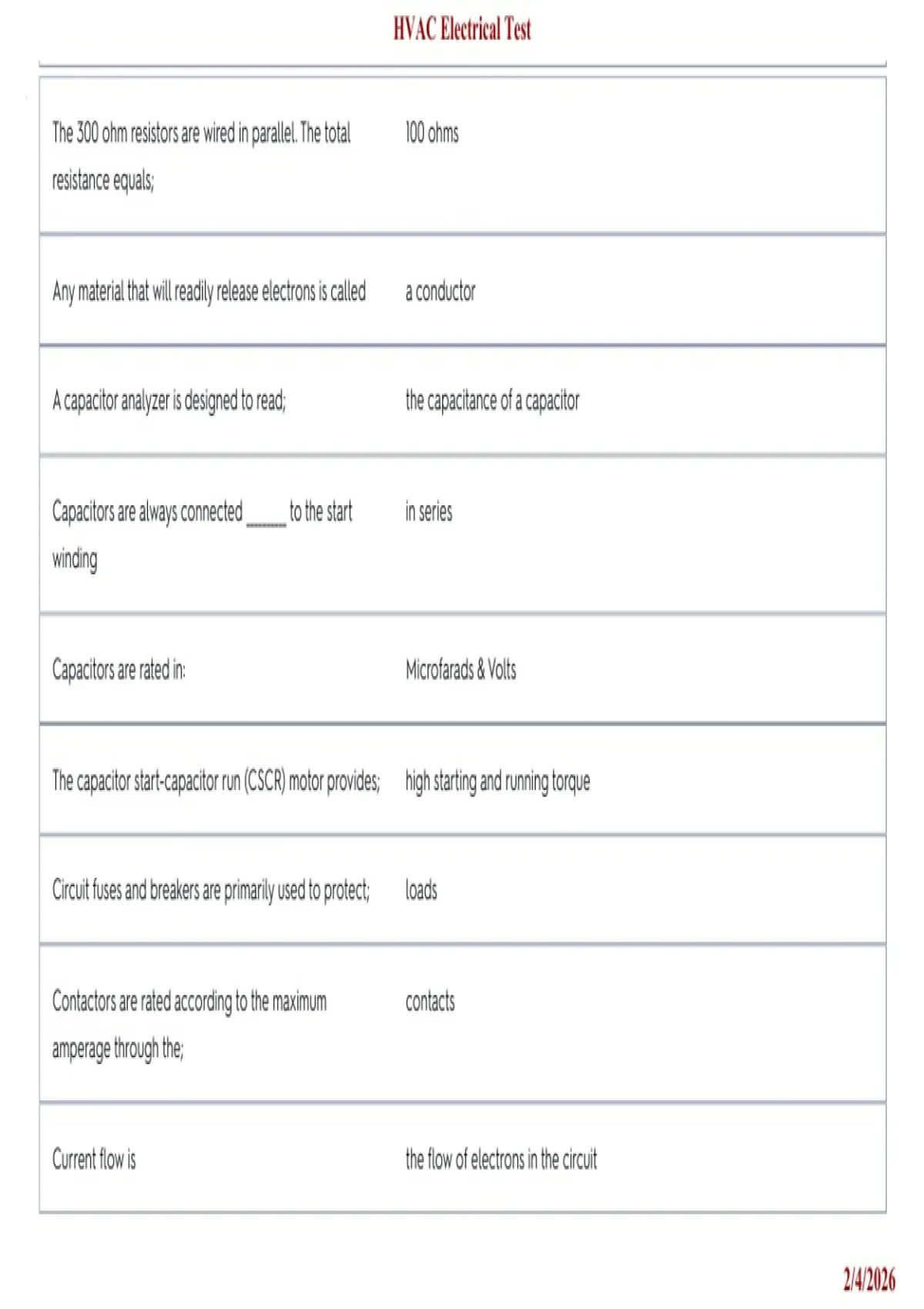

HVAC Electrical Test
The 300 ohm resistors are wired in parallel. The total 100 ohms
resistance equals;
Any material that will readily release electrons is called a conductor
A capacitor analyzer is designed to read; the capacitance of a capacitor
Capacitors are always connected __________ to the start in series
winding
Capacitors are rated in: Microfarads & Volts
The capacitor start-capacitor run (CSCR) motor provides; high starting and running torque
Circuit fuses and breakers are primarily used to protect; loads
Contactors are rated according to the maximum contacts
amperage through the;
Current flow is the flow of electrons in the circuit
2/4/2026
, HVAC Electrical Test
A device with over load protection used to control a line starter
motor is a;
A diode is used to; Control the direction of electron flow.
Direction of rotation of a single phase induction motor is the direction of current flow through the start winding.
determined by;
The __________ drawing illustrates where the components pictoral
are located in small appliances.
The electric meter on a house measures the _______ passing wattage
through it.
An electron has a negative charge
An electronically commutated motor (ECM) is Designed provide proper air flow under various conditions.
to
Excessive can be caused by; short circuit
