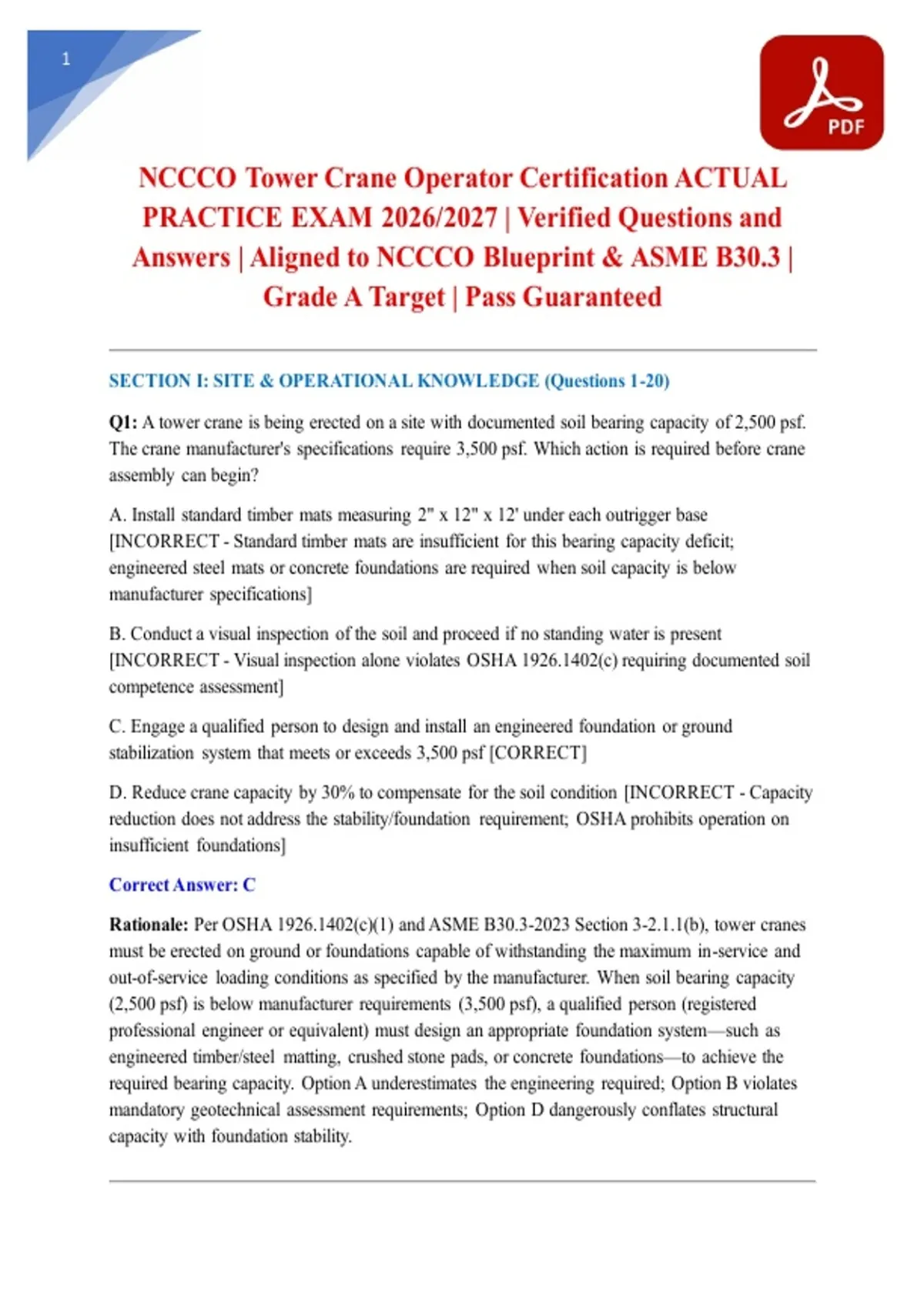

NCCCO Tower Crane Operator Certification ACTUAL
PRACTICE EXAM 2026/2027 | Verified Questions and
Answers | Aligned to NCCCO Blueprint & ASME B30.3 |
Grade A Target | Pass Guaranteed
SECTION I: SITE & OPERATIONAL KNOWLEDGE (Questions 1-20)
Q1: A tower crane is being erected on a site with documented soil bearing capacity of 2,500 psf.
The crane manufacturer's specifications require 3,500 psf. Which action is required before crane
assembly can begin?
A. Install standard timber mats measuring 2" x 12" x 12' under each outrigger base
[INCORRECT - Standard timber mats are insufficient for this bearing capacity deficit;
engineered steel mats or concrete foundations are required when soil capacity is below
manufacturer specifications]
B. Conduct a visual inspection of the soil and proceed if no standing water is present
[INCORRECT - Visual inspection alone violates OSHA 1926.1402(c) requiring documented soil
competence assessment]
C. Engage a qualified person to design and install an engineered foundation or ground
stabilization system that meets or exceeds 3,500 psf [CORRECT]
D. Reduce crane capacity by 30% to compensate for the soil condition [INCORRECT - Capacity
reduction does not address the stability/foundation requirement; OSHA prohibits operation on
insufficient foundations]
Correct Answer: C
Rationale: Per OSHA 1926.1402(c)(1) and ASME B30.3-2023 Section 3-2.1.1(b), tower cranes
must be erected on ground or foundations capable of withstanding the maximum in-service and
out-of-service loading conditions as specified by the manufacturer. When soil bearing capacity
(2,500 psf) is below manufacturer requirements (3,500 psf), a qualified person (registered
professional engineer or equivalent) must design an appropriate foundation system—such as
engineered timber/steel matting, crushed stone pads, or concrete foundations—to achieve the
required bearing capacity. Option A underestimates the engineering required; Option B violates
mandatory geotechnical assessment requirements; Option D dangerously conflates structural
capacity with foundation stability.
,2
Q2: During a multiple crane lift operation, two tower cranes are working with overlapping radii.
Crane A is lifting 8,000 lbs at 120 ft radius; Crane B is lifting 12,000 lbs at 100 ft radius.
According to standard practice and ASME B30.3, what is the minimum vertical clearance
required between the two loads?
A. 10 feet or one load length, whichever is greater [INCORRECT - This describes minimum
clearance from obstacles, not between multiple crane loads]
B. 20 feet to account for load swing and operator reaction time [INCORRECT - While
conservative, this exceeds the regulatory minimum and is not the specified standard]
C. A minimum vertical separation of 25 feet and engineered lift plan with dedicated
signalpersons for each crane [CORRECT]
D. No specific clearance required if both operators maintain visual contact [INCORRECT -
Visual contact alone is insufficient; physical separation standards are mandatory]
Correct Answer: C
Rationale: Per ASME B30.3-2023 Section 3-3.3.2 and OSHA 1926.1425(a), when multiple
tower cranes operate with overlapping working radii, the employer must develop a detailed lift
plan ensuring minimum 25-foot vertical separation between loads or boom tips, unless
engineering analysis demonstrates lesser clearance is safe. Each crane requires dedicated,
qualified signalpersons using standardized signals. This prevents collision during load swing,
boom deflection, or unexpected movement. The 25-foot standard provides margin for dynamic
effects including wind, load rotation, and operator response time.
Q3: Refer to Load Chart Figure A (Tower Crane Luffing Jib Configuration): The chart shows
rated capacities for various radii with the following data points: 40m radius = 12,000 kg; 50m
radius = 9,500 kg; 60m radius = 7,200 kg. The crane is configured with 2-part line, 25m jib, and
2,000 kg hook block. What is the net capacity at 50m radius?
A. 9,500 kg [INCORRECT - This is the gross rated capacity before deductions]
B. 7,500 kg [INCORRECT - This appears to deduct hook block but misses additional required
deductions]
C. 7,200 kg [INCORRECT - This uses the 60m radius capacity incorrectly]
D. 7,300 kg [CORRECT]
Correct Answer: D
Rationale: Per ASME B30.3-2023 Section 3-1.7.2 and manufacturer load chart protocols, net
capacity = gross rated capacity minus all applicable deductions. At 50m radius, gross capacity =
,3
9,500 kg. Deductions: Hook block (2,000 kg) + lifting devices/rigging (estimated 200 kg
minimum) = 2,200 kg. Net capacity = 9,500 - 2,200 = 7,300 kg. Note: If additional accessories
(jib, auxiliary hook) are mounted but not used, they must still be deducted per load chart notes.
Operators must never exceed net capacity, which must account for all weight below the boom tip
including hook blocks, balls, rigging, and load handling devices.
Q4: An operator is setting up a self-erecting tower crane on a completed concrete slab rated at
4,000 psf. The crane's outrigger pads are 4' x 4' each, and the maximum outrigger reaction is
180,000 lbs per corner. Which statement is correct?
A. The setup is acceptable; concrete capacity exceeds typical soil requirements [INCORRECT -
Pad area must be verified against actual loading, not just material strength]
B. The outrigger pressure is 11,250 psf, requiring load distribution measures [INCORRECT -
Calculation error: 180,000 ÷ 16 = 11,250 psf, which exceeds 4,000 psf concrete capacity]
C. The outrigger pressure is 11,250 psf, which exceeds the concrete rating; engineered steel mats
or spreading foundations are required [CORRECT]
D. The pressure is acceptable because the crane is self-erecting and lighter than hammerhead
models [INCORRECT - Self-erecting designation does not reduce outrigger reactions; load is
load]
Correct Answer: C
Rationale: Calculation: Outrigger pad area = 4 ft × 4 ft = 16 sq ft. Pressure = 180,000 lbs ÷ 16
sq ft = 11,250 psf. Per OSHA 1926.1402(c)(2) and ASME B30.3-2023 Section 3-2.1.1, the
supporting structure must withstand the greater of manufacturer-specified or actual calculated
loading. With 11,250 psf exceeding the concrete's 4,000 psf rating by 181%, immediate failure
would occur. Required: load-spreading steel mats (timber insufficient at this differential) or
foundation pads designed by a qualified person to distribute load to acceptable pressure.
Q5: Standard hand signals are being used for a blind lift. The signalperson gives the following
sequence: (1) arm extended, finger pointing up, hand moving in small horizontal circles; (2) both
fists in front of body with thumbs pointing outward; (3) arm extended, finger pointing down,
hand moving in small horizontal circles. What operation is being directed?
A. Raise load, stop, lower load [INCORRECT - Thumb signal indicates "hoist" not "stop"]
B. Hoist, extend boom, lower load [CORRECT]
C. Raise load, swing left, lower load [INCORRECT - No standard swing signal described]
, 4
D. Hoist, retract boom, lower load [INCORRECT - Thumbs outward indicates extend, not
retract]
Correct Answer: B
Rationale: Per ASME B30.3-2023 Appendix A (Standard Hand Signals) and OSHA 1926.1428:
Signal (1) "Load hoist"—arm extended, finger pointing up, hand moving in horizontal circles;
Signal (2) "Telescope/Extend boom"—both fists in front with thumbs pointing outward (extend)
or inward (retract); Signal (3) "Lower load"—arm extended, finger pointing down, hand moving
in horizontal circles. These three distinct signals demonstrate proper command sequence for
lifting load, extending boom to position, then lowering. Operators must know all 20+ standard
signals; signalperson qualification is mandatory per 1926.1428(c).
Q6: A tower crane is operating near power lines rated at 345 kV. The utility company has
confirmed the lines are de-energized and visibly grounded. What is the required clearance?
A. 10 feet horizontal and vertical clearance [INCORRECT - This applies to energized lines
≤50kV]
B. 20 feet horizontal and vertical clearance [INCORRECT - This applies to energized lines
>50kV but <350kV]
C. Minimum 10 feet from the demarcated "danger zone" perimeter, plus confirmation that lines
remain de-energized [INCORRECT - Clearance is measured from crane/components, not just
danger zone]
D. No minimum clearance required if lines are de-energized and grounded per OSHA
1926.1406(g), but operation must cease immediately if re-energization is possible [CORRECT]
Correct Answer: D
Rationale: Per OSHA 1926.1406(g) and ASME B30.3-2023 Section 3-3.4.3, when power lines
are de-energized and visibly grounded at the worksite, the minimum approach distance
requirements are eliminated. However, stringent protocols apply: utility owner/operator must
confirm de-energization; grounds must be visible to operator; work must stop immediately if re-
energization becomes possible; and employer must ensure no employee is exposed to hazard.
Options A/B describe energized line clearances (10 ft ≤50kV; 20 ft >50kV). Even with de-
energization, safe operation requires constant vigilance.
Q7: The site superintendent proposes using a tower crane to lift personnel in a personnel
platform ("man basket"). The crane has been certified and the platform meets ASME B30.23.
What additional requirement applies specifically to tower cranes?
