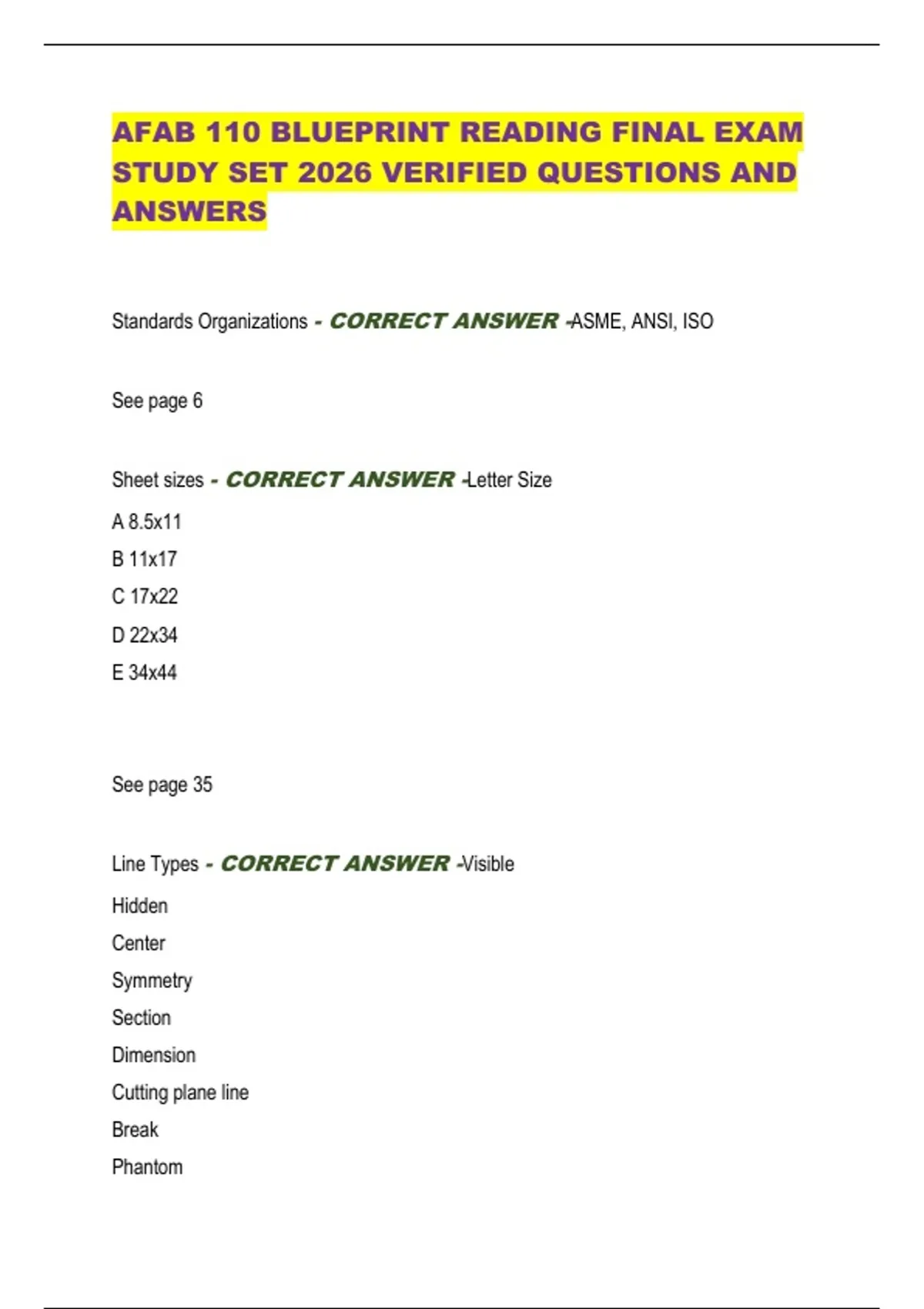

AFAB 110 BLUEPRINT READING FINAL EXAM
STUDY SET 2026 VERIFIED QUESTIONS AND
ANSWERS


Standards Organizations - CORRECT ANSWER -ASME, ANSI, ISO


See page 6


Sheet sizes - CORRECT ANSWER -Letter Size
A 8.5x11
B 11x17
C 17x22
D 22x34
E 34x44




See page 35


Line Types - CORRECT ANSWER -Visible
Hidden
Center
Symmetry
Section
Dimension
Cutting plane line
Break
Phantom

, Stitch
Chain




See page 14


https://swh-826d.kxcdn.com/wp-content/uploads/2011/05/Alphabet-of-Lines-diagram.jpg


Border zones - CORRECT ANSWER -Numbers and letters that correspond to a
zone on the drawing




See page 35, figure 3-4


Title Block - CORRECT ANSWER -Where the written information of the drawing
is kept e.g drawing title, name, scale...




See page 34 figure 3-1


Notes (Local and General) - CORRECT ANSWER -General notes apply to
whole drawing and are written in blank space around part.
Local notes are for specific parts or areas and typically have leader lines. A callout is a
local note.
