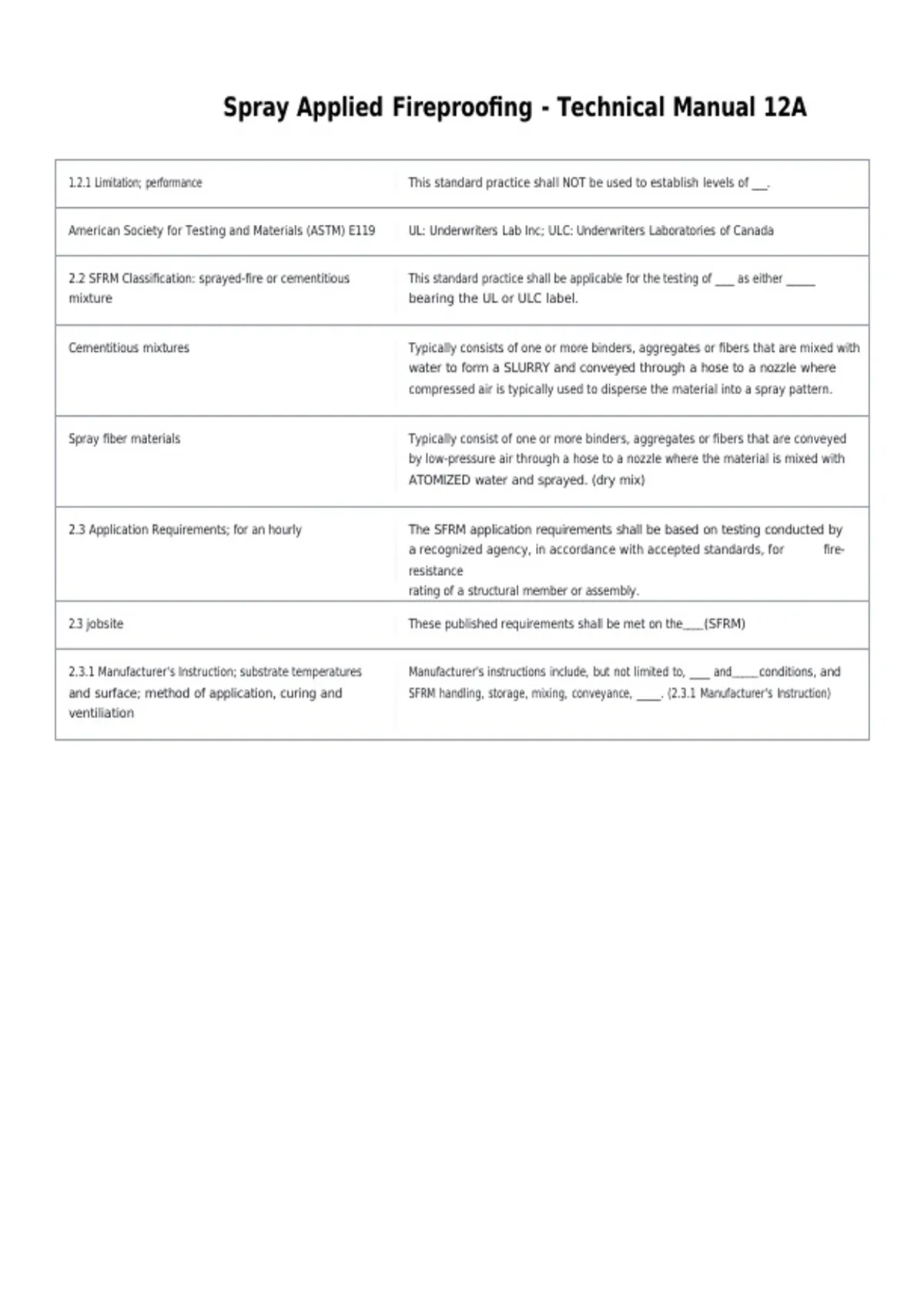

Spray Applied Fireproofing - Technical Manual 12A
1.2.1 Limitation; performance This standard practice shall NOT be used to establish levels of ___.
American Society for Testing and Materials (ASTM) E119 UL: Underwriters Lab Inc; ULC: Underwriters Laboratories of Canada
2.2 SFRM Classification: sprayed-fire or cementitious This standard practice shall be applicable for the testing of ____ as either ______
mixture bearing the UL or ULC label.
Cementitious mixtures Typically consists of one or more binders, aggregates or fibers that are mixed with
water to form a SLURRY and conveyed through a hose to a nozzle where
compressed air is typically used to disperse the material into a spray pattern.
Spray fiber materials Typically consist of one or more binders, aggregates or fibers that are conveyed
by low-pressure air through a hose to a nozzle where the material is mixed with
ATOMIZED water and sprayed. (dry mix)
2.3 Application Requirements; for an hourly The SFRM application requirements shall be based on testing conducted by
a recognized agency, in accordance with accepted standards, for fire-
resistance
rating of a structural member or assembly.
2.3 jobsite These published requirements shall be met on the____(SFRM)
2.3.1 Manufacturer's Instruction; substrate temperatures Manufacturer's instructions include, but not limited to, ____ and_____conditions, and
and surface; method of application, curing and SFRM handling, storage, mixing, conveyance, _____. (2.3.1 Manufacturer's Instruction)
ventiliation
, 2.4 Testing Requirements; building code SFRM shall be tested, as required by the applicable and/or regulatory agency,
when applied to structural members and assemblies including, but not limited
to, beams, joists, columns, metal decking, floor systems, wall assemblies, trusses,
roof assemblies and other related structural components. (2.4 Testing
Requirements)
3.1 Substrate Conditions/Inspection; PRIOR ____shall be inspected and deemed acceptable by the SFRM applicator and/or a
representative of the manufacture____to the application of the SFRM. (3.1 Substrate
Condition inspection)
3.2 Surface conditions; fire tested Substrates to receive SFRM shall be free of dirt, oil, grease, release agents, loose
scale or paint, primers, paints and encapsulants other than those and
classified
by a recognized testing agency. (3.2 Surface Conditions)
3.2.1 Primers, Paints and Encapsulants; design-criteria Unless specifically prohibited in the fire-resistance-rating____, SFRM shall be
permitted to be applied to primed, painted, or encapsulated wide flange steel
shapes....(3.2.1)
3.2.1.A does not exceed 12 in The beam flange width (3.2.1)
3.2.1.B does not exceed 16 in The column flange width (3.2.1)
3.2.1.C does not exceed 16 in The beam or column web depth does not exceed 16 in (3.2.1)
3.2.1.D ASTM E736; 80%; 50% Bond tests conducted in accordance with ___ indicate a minimum average bond
strength of ___ and a minimum individual bond strength of ___, when compared to
the bond strength of the SFRM as applied to clean uncoated ⅛ inch thick steel
plate. (3.2.1D)
Five bond (3.2.1D) The average and minimum bond stregth values shall be determined based on a
minimum of ___ tests conducted in accordance with ASTM E736 (3.2.1D)
3.2.1.1 Primer, Paint and Encapsulant Bond Tests; between Bond tests to qualify a primer, paint and encapsulant per item 3.2.1D shall be
these coatings; fire resistive material conducted only when the fire-resistive coating is applied to a primed, painted or
encapsulated surface for which acceptable bond-strength performance
______________________________________________________________________and
the ______ has NOT been measured. (3.2.1.1)
3.2.1.1 untreated substrates; five bond The treated and____substrates shall be coated with SFRM, cured and subjected to
___ tests each, in accordance with ASTM E736. (3.2.1.1)
If condition 3.2.1D is not met (bond tests) it shall be acceptable to provide a mechanical bond by wrapping the structural
member with expanded METAL LATH having a weight of not less than 1.7 lbs per
yd2.
If any of the conditions 3.2.1A-C are not met mechanical break shall be provided. (p. 6)
A mechanical break shall be provided by mechanically fastening one or more minimum 1.7 lbs per yd metal lath strips to
the flange or web either by weld, screw or powder-actuated fasteners, on
maximum 12 in centers, on each longitudinal edge of the strip, so that the
clear spans do not exceed the limits established (3.2.1A-C)
