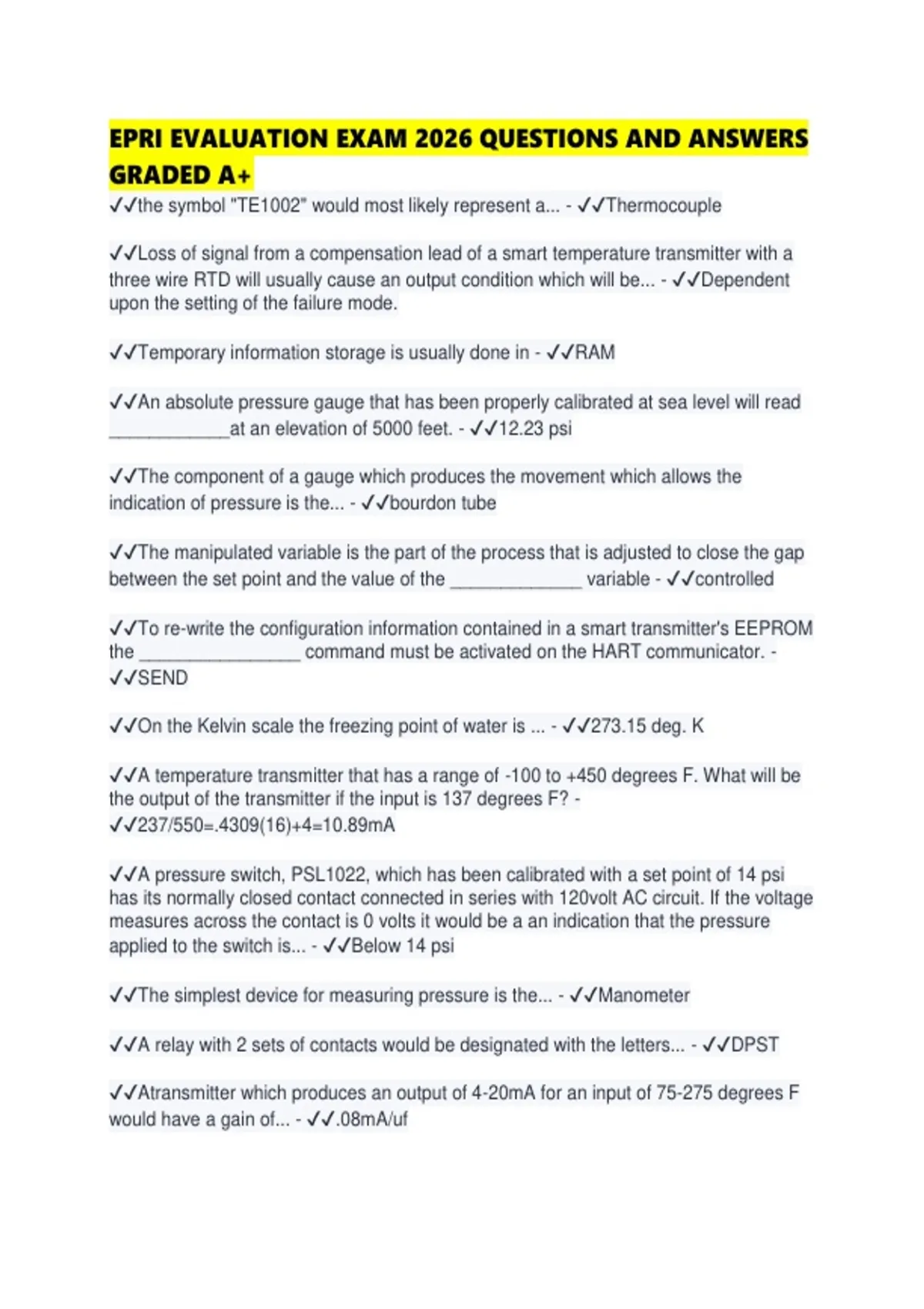

EPRI EVALUATION EXAM 2026 QUESTIONS AND ANSWERS
GRADED A+
✔✔the symbol "TE1002" would most likely represent a... - ✔✔Thermocouple
✔✔Loss of signal from a compensation lead of a smart temperature transmitter with a
three wire RTD will usually cause an output condition which will be... - ✔✔Dependent
upon the setting of the failure mode.
✔✔Temporary information storage is usually done in - ✔✔RAM
✔✔An absolute pressure gauge that has been properly calibrated at sea level will read
____________at an elevation of 5000 feet. - ✔✔12.23 psi
✔✔The component of a gauge which produces the movement which allows the
indication of pressure is the... - ✔✔bourdon tube
✔✔The manipulated variable is the part of the process that is adjusted to close the gap
between the set point and the value of the _____________ variable - ✔✔controlled
✔✔To re-write the configuration information contained in a smart transmitter's EEPROM
the ________________ command must be activated on the HART communicator. -
✔✔SEND
✔✔On the Kelvin scale the freezing point of water is ... - ✔✔273.15 deg. K
✔✔A temperature transmitter that has a range of -100 to +450 degrees F. What will be
the output of the transmitter if the input is 137 degrees F? -
✔✔237/550=.4309(16)+4=10.89mA
✔✔A pressure switch, PSL1022, which has been calibrated with a set point of 14 psi
has its normally closed contact connected in series with 120volt AC circuit. If the voltage
measures across the contact is 0 volts it would be a an indication that the pressure
applied to the switch is... - ✔✔Below 14 psi
✔✔The simplest device for measuring pressure is the... - ✔✔Manometer
✔✔A relay with 2 sets of contacts would be designated with the letters... - ✔✔DPST
✔✔Atransmitter which produces an output of 4-20mA for an input of 75-275 degrees F
would have a gain of... - ✔✔.08mA/uf
