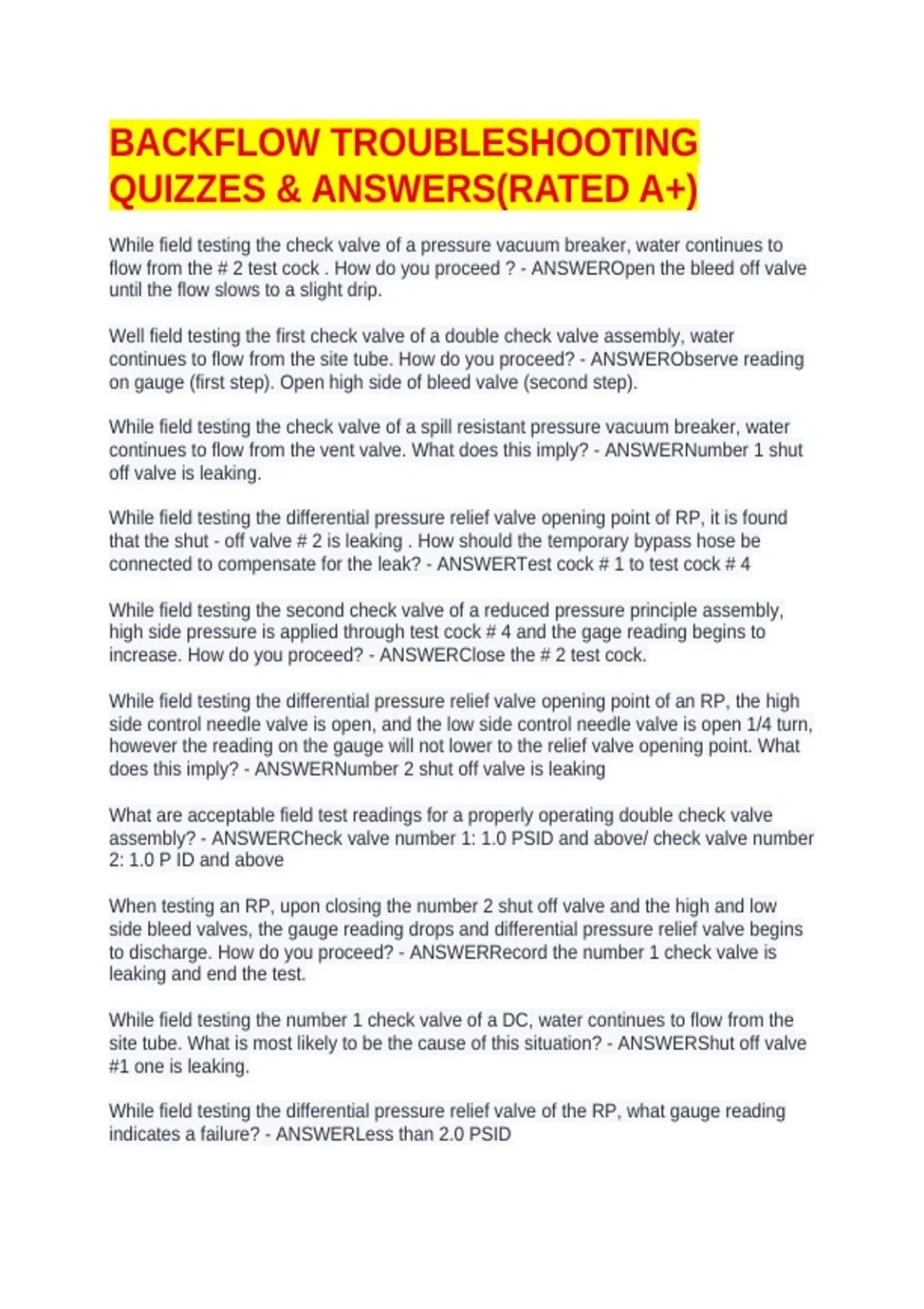

BACKFLOW TROUBLESHOOTING
QUIZZES & ANSWERS(RATED A+)
While field testing the check valve of a pressure vacuum breaker, water continues to
flow from the # 2 test cock . How do you proceed ? - ANSWEROpen the bleed off valve
until the flow slows to a slight drip.
Well field testing the first check valve of a double check valve assembly, water
continues to flow from the site tube. How do you proceed? - ANSWERObserve reading
on gauge (first step). Open high side of bleed valve (second step).
While field testing the check valve of a spill resistant pressure vacuum breaker, water
continues to flow from the vent valve. What does this imply? - ANSWERNumber 1 shut
off valve is leaking.
While field testing the differential pressure relief valve opening point of RP, it is found
that the shut - off valve # 2 is leaking . How should the temporary bypass hose be
connected to compensate for the leak? - ANSWERTest cock # 1 to test cock # 4
While field testing the second check valve of a reduced pressure principle assembly,
high side pressure is applied through test cock # 4 and the gage reading begins to
increase. How do you proceed? - ANSWERClose the # 2 test cock.
While field testing the differential pressure relief valve opening point of an RP, the high
side control needle valve is open, and the low side control needle valve is open 1/4 turn,
however the reading on the gauge will not lower to the relief valve opening point. What
does this imply? - ANSWERNumber 2 shut off valve is leaking
What are acceptable field test readings for a properly operating double check valve
assembly? - ANSWERCheck valve number 1: 1.0 PSID and above/ check valve number
2: 1.0 P ID and above
When testing an RP, upon closing the number 2 shut off valve and the high and low
side bleed valves, the gauge reading drops and differential pressure relief valve begins
to discharge. How do you proceed? - ANSWERRecord the number 1 check valve is
leaking and end the test.
While field testing the number 1 check valve of a DC, water continues to flow from the
site tube. What is most likely to be the cause of this situation? - ANSWERShut off valve
#1 one is leaking.
While field testing the differential pressure relief valve of the RP, what gauge reading
indicates a failure? - ANSWERLess than 2.0 PSID
