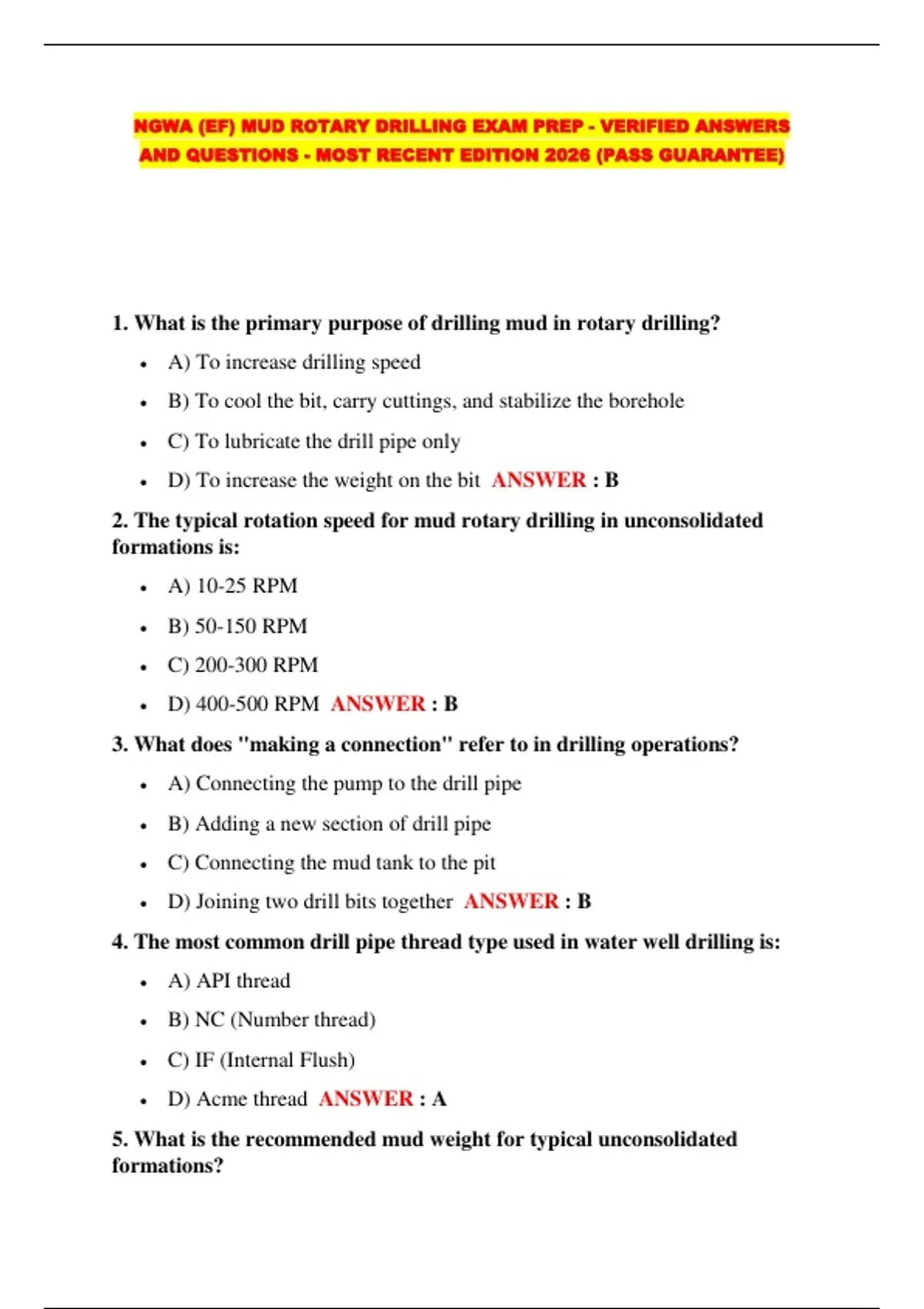

NGWA (EF) MUD ROTARY DRILLING EXAM PREP - VERIFIED ANSWERS
AND QUESTIONS - MOST RECENT EDITION 2026 (PASS GUARANTEE)
1. What is the primary purpose of drilling mud in rotary drilling?
• A) To increase drilling speed
• B) To cool the bit, carry cuttings, and stabilize the borehole
• C) To lubricate the drill pipe only
• D) To increase the weight on the bit ANSWER : B
2. The typical rotation speed for mud rotary drilling in unconsolidated
formations is:
• A) 10-25 RPM
• B) 50-150 RPM
• C) 200-300 RPM
• D) 400-500 RPM ANSWER : B
3. What does "making a connection" refer to in drilling operations?
• A) Connecting the pump to the drill pipe
• B) Adding a new section of drill pipe
• C) Connecting the mud tank to the pit
• D) Joining two drill bits together ANSWER : B
4. The most common drill pipe thread type used in water well drilling is:
• A) API thread
• B) NC (Number thread)
• C) IF (Internal Flush)
• D) Acme thread ANSWER : A
5. What is the recommended mud weight for typical unconsolidated
formations?
, • A) 6.5-7.5 lbs/gal
• B) 8.6-9.2 lbs/gal
• C) 10-12 lbs/gal
• D) 13-15 lbs/gal ANSWER : B
6. The term "kelly" refers to:
• A) A type of drill bit
• B) A square or hexagonal pipe that transmits rotation
• C) A mud pump component
• D) A drilling fluid additive ANSWER : B
7. What is the purpose of a swivel in a rotary drilling rig?
• A) To change drill bit direction
• B) To allow rotation while maintaining fluid circulation
• C) To measure drilling depth
• D) To control mud weight ANSWER : B
8. The minimum recommended annular velocity for effective cuttings
removal is:
• A) 50 feet per minute
• B) 100 feet per minute
• C) 150 feet per minute
• D) 200 feet per minute ANSWER : C
9. What does "penetration rate" measure?
• A) Depth drilled per hour
• B) Mud flow rate
• C) Rotation speed
• D) Bit pressure ANSWER : A
10. A tricone bit is best suited for drilling in:
• A) Soft clay only
• B) Hard rock formations
, • C) Various formation types
• D) Sand only ANSWER : C
11. The purpose of a drag bit is to:
• A) Scrape and shear soft formations
• B) Crush hard rock
• C) Mix drilling mud
• D) Measure depth ANSWER : A
12. What is "washout" in drilling terminology?
• A) Cleaning the drill rig
• B) Erosion of the borehole wall
• C) Pumping water through the system
• D) Removing old drilling mud ANSWER : B
13. The drilling fluid return should be monitored for:
• A) Color only
• B) Temperature only
• C) Volume, color, and cuttings content
• D) Smell only ANSWER : C
14. What is a "mouse hole" on a drilling rig?
• A) A small borehole for testing
• B) A hole in the rig floor for staging the next joint of pipe
• C) An erosion problem
• D) A mud pit compartment ANSWER : B
15. The primary function of bentonite in drilling mud is to:
• A) Increase mud weight
• B) Provide viscosity and form filter cake
• C) Reduce pH
• D) Increase drilling speed ANSWER : B
, 16. What is "lost circulation" in drilling?
• A) Pump failure
• B) Loss of drilling fluid into the formation
• C) Blocked return line
• D) Broken circulation hose ANSWER : B
17. The typical drill collar length used in water well drilling is:
• A) 5-10 feet
• B) 10-15 feet
• C) 20-30 feet
• D) 40-50 feet ANSWER : C
18. What does API stand for in drilling terminology?
• A) American Petroleum Institute
• B) Advanced Drilling Procedure Index
• C) Automatic Pump Indicator
• D) Applied Pressure Institute ANSWER : A
19. The purpose of stabilizers in a drill string is to:
• A) Increase mud weight
• B) Keep the hole straight and prevent doglegs
• C) Stabilize the mud pump
• D) Support the drilling platform ANSWER : B
20. What is "trip time" in drilling operations?
• A) Time to change shifts
• B) Time to pull out and run back in with drill string
• C) Time between connections
• D) Time to mix new mud ANSWER : B
21. The recommended practice when drilling through a water-bearing zone
is to:
• A) Increase circulation rate significantly
