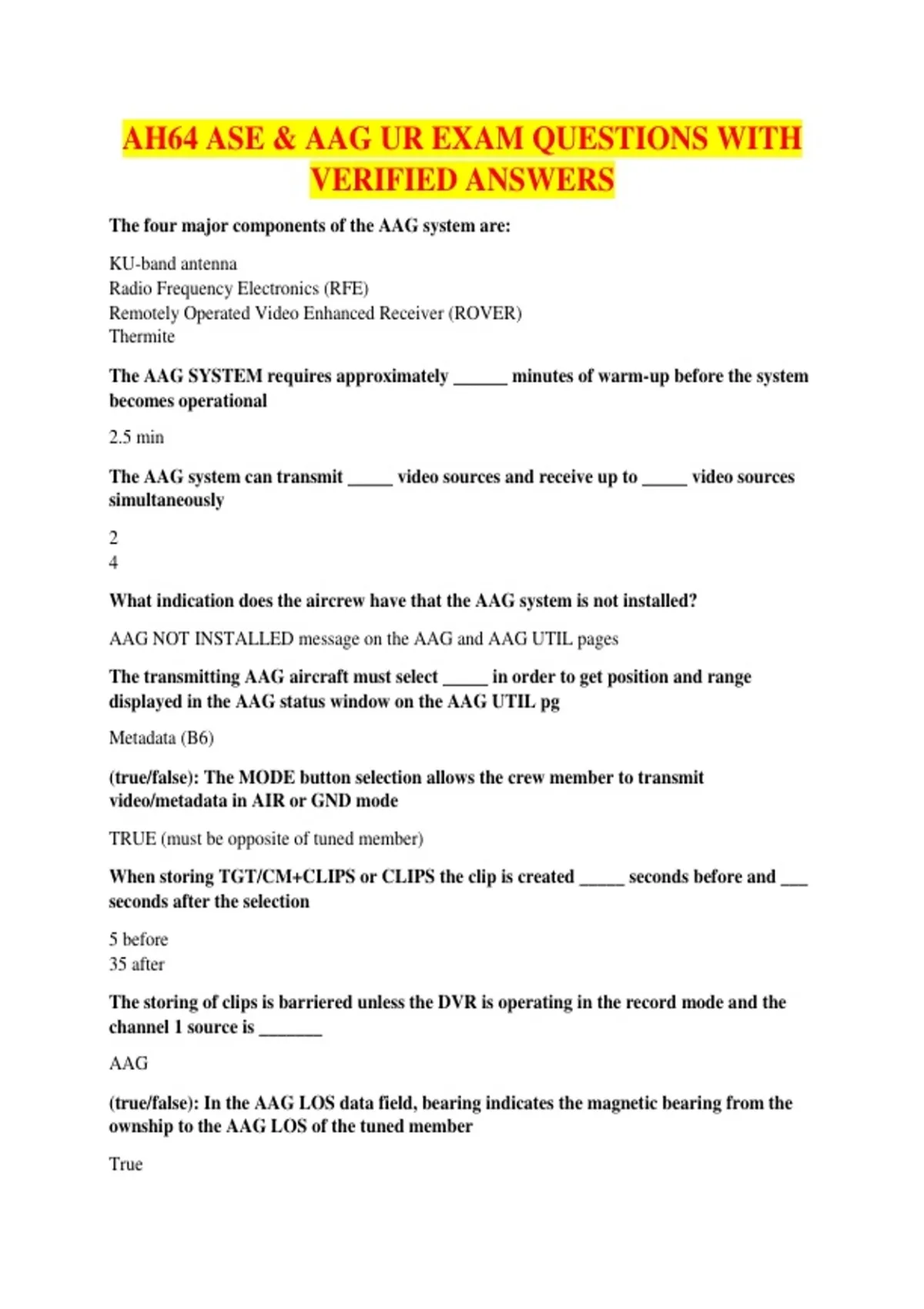

AH64 ASE & AAG UR EXAM QUESTIONS WITH
VERIFIED ANSWERS
The four major components of the AAG system are:
KU-band antenna
Radio Frequency Electronics (RFE)
Remotely Operated Video Enhanced Receiver (ROVER)
Thermite
The AAG SYSTEM requires approximately ______ minutes of warm-up before the system
becomes operational
2.5 min
The AAG system can transmit _____ video sources and receive up to _____ video sources
simultaneously
2
4
What indication does the aircrew have that the AAG system is not installed?
AAG NOT INSTALLED message on the AAG and AAG UTIL pages
The transmitting AAG aircraft must select _____ in order to get position and range
displayed in the AAG status window on the AAG UTIL pg
Metadata (B6)
(true/false): The MODE button selection allows the crew member to transmit
video/metadata in AIR or GND mode
TRUE (must be opposite of tuned member)
When storing TGT/CM+CLIPS or CLIPS the clip is created _____ seconds before and ___
seconds after the selection
5 before
35 after
The storing of clips is barriered unless the DVR is operating in the record mode and the
channel 1 source is _______
AAG
(true/false): In the AAG LOS data field, bearing indicates the magnetic bearing from the
ownship to the AAG LOS of the tuned member
True
, To PAN to the AAG tuned member, select POINT and enter _____ in the keyboard
AAG
(true/false) When he TADS is slaved to the AAG acquisition source the TADS is viewing
the tuned member's LOS
True
(true/false): The waveform chosen by the crew to receive data must match the waveform of
the transmitting aircraft
True
What level of control is only available with Upper Receiver?
Level 2
What are the main components of the UR system?
Omni-directional antenna
Thermite
UR ROVER
Which bands does the Omni-directional antenna receive?
L, C, S, and Ku bands
How long does the thermite take to power up?
2 min
Will the TDU display UR video?
No
The aircrew accesses the UR page through FAB ______
FCR
UR preset conditions are established via the _____ program
AMPS
The UR processor powers up in _____ minutes
2 min
Where is the RWR digital processor located in the aircraft?
Left aft avionics bay
What component provides radar, laser, and missile threat audio tones to the CM?
CIU
