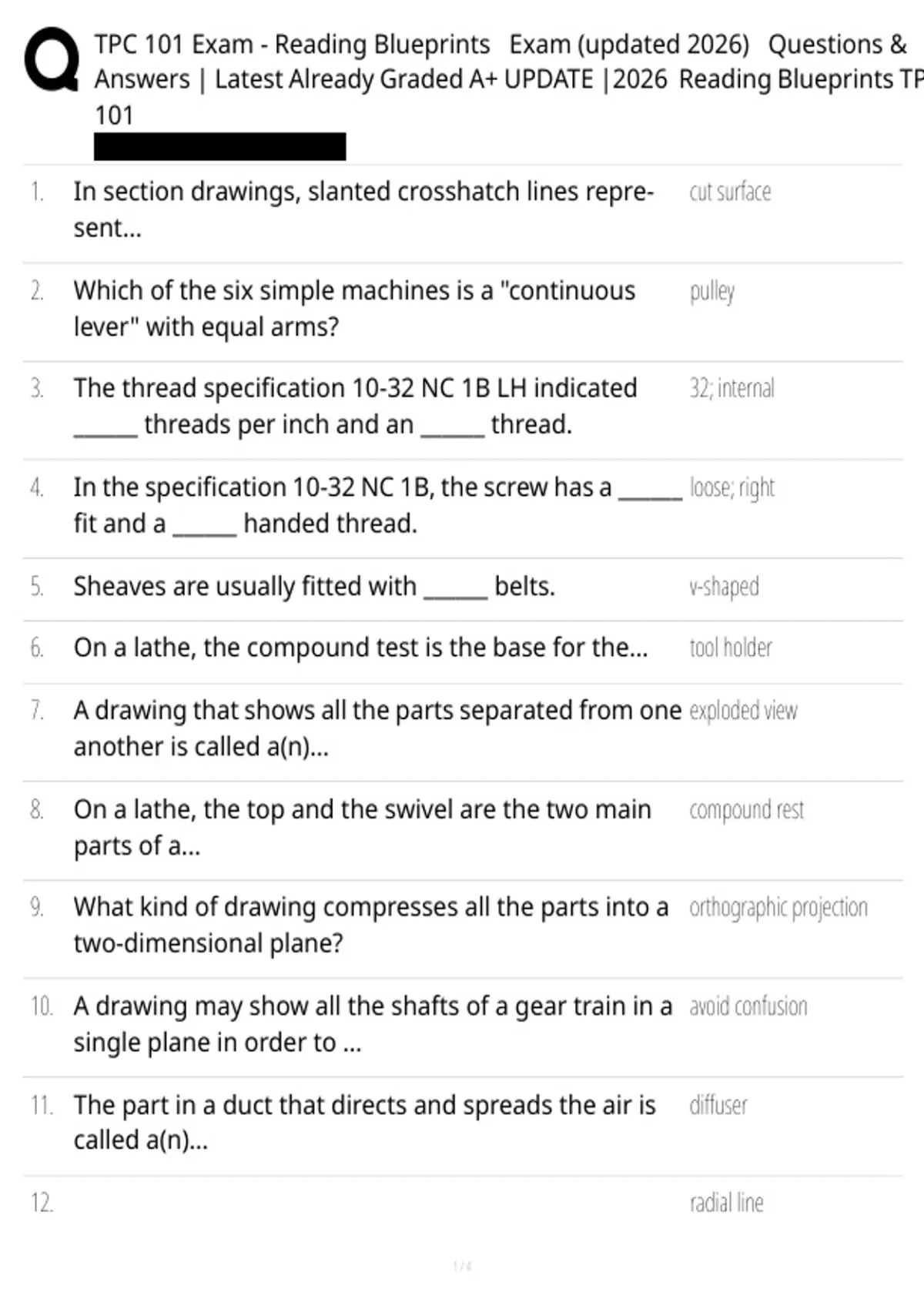

TPC 101 Exam - Reading Blueprints Exam (updated 2026) Questions &
Answers | Latest Already Graded A+ UPDATE |2026 Reading Blueprints TP
101
1. In section drawings, slanted crosshatch lines repre- cut surface
sent...
2. Which of the six simple machines is a "continuous pulley
lever" with equal arms?
3. The thread specification 10-32 NC 1B LH indicated 32; internal
______ threads per inch and an ______ thread.
4. In the specification 10-32 NC 1B, the screw has a ______ loose; right
fit and a ______ handed thread.
5. Sheaves are usually fitted with ______ belts. v-shaped
6. On a lathe, the compound test is the base for the... tool holder
7. A drawing that shows all the parts separated from one exploded view
another is called a(n)...
8. On a lathe, the top and the swivel are the two main compound rest
parts of a...
9. What kind of drawing compresses all the parts into a orthographic projection
two-dimensional plane?
10. A drawing may show all the shafts of a gear train in a avoid confusion
single plane in order to ...
11. The part in a duct that directs and spreads the air is diffuser
called a(n)...
12. radial line
1/4
