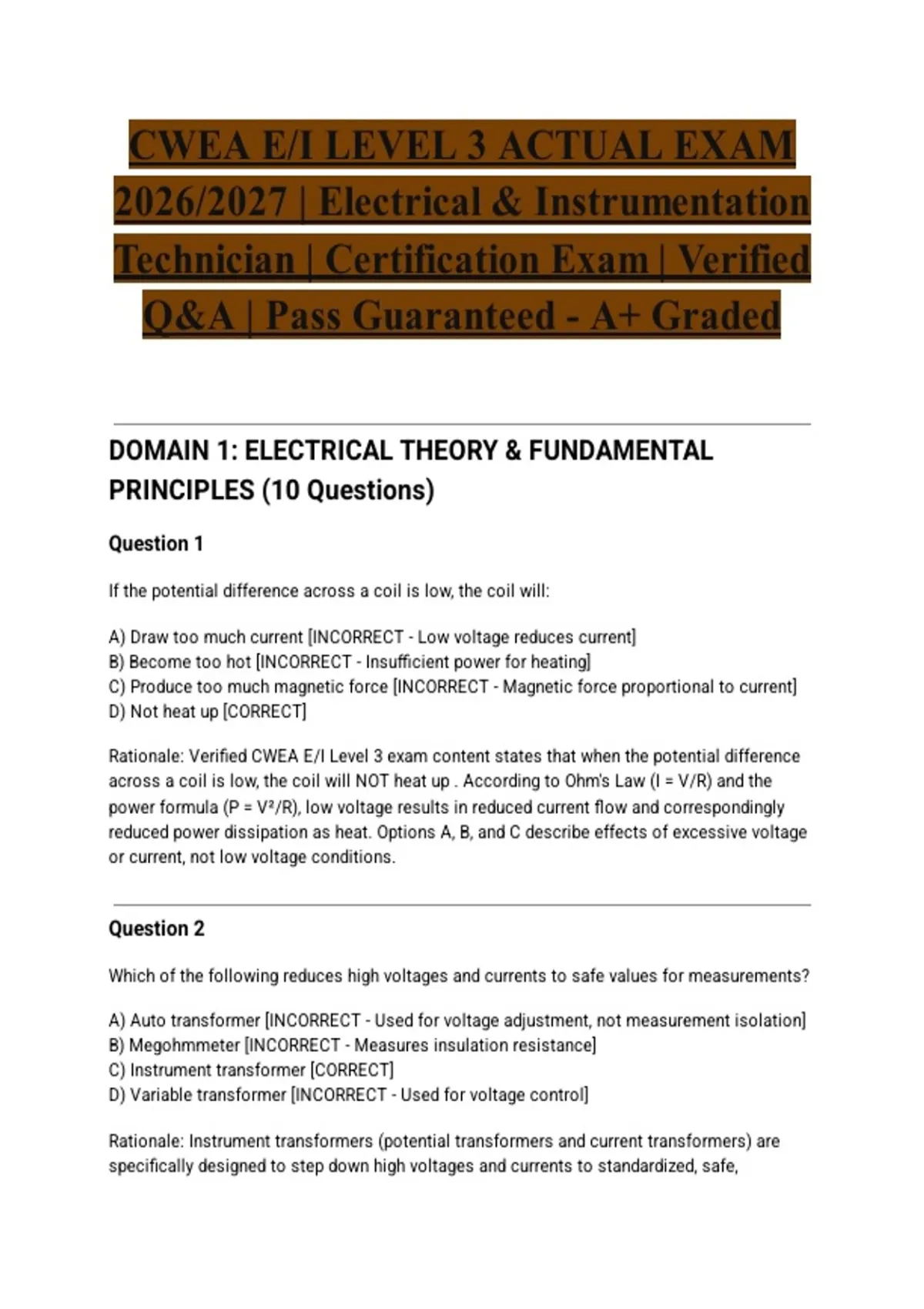

CWEA E/I LEVEL 3 ACTUAL EXAM
2026/2027 | Electrical & Instrumentation
Technician | Certification Exam | Verified
Q&A | Pass Guaranteed - A+ Graded
DOMAIN 1: ELECTRICAL THEORY & FUNDAMENTAL
PRINCIPLES (10 Questions)
Question 1
If the potential difference across a coil is low, the coil will:
A) Draw too much current [INCORRECT - Low voltage reduces current]
B) Become too hot [INCORRECT - Insufficient power for heating]
C) Produce too much magnetic force [INCORRECT - Magnetic force proportional to current]
D) Not heat up [CORRECT]
Rationale: Verified CWEA E/I Level 3 exam content states that when the potential difference
across a coil is low, the coil will NOT heat up . According to Ohm's Law (I = V/R) and the
power formula (P = V²/R), low voltage results in reduced current flow and correspondingly
reduced power dissipation as heat. Options A, B, and C describe effects of excessive voltage
or current, not low voltage conditions.
Question 2
Which of the following reduces high voltages and currents to safe values for measurements?
A) Auto transformer [INCORRECT - Used for voltage adjustment, not measurement isolation]
B) Megohmmeter [INCORRECT - Measures insulation resistance]
C) Instrument transformer [CORRECT]
D) Variable transformer [INCORRECT - Used for voltage control]
Rationale: Instrument transformers (potential transformers and current transformers) are
specifically designed to step down high voltages and currents to standardized, safe,
,measurable levels for meters, protective relays, and instruments . They provide electrical
isolation and accurate proportional outputs for measurement and control systems.
Question 3
An ammeter must be connected:
A) In parallel with the load [INCORRECT - Would create short circuit]
B) In series with the load [CORRECT]
C) Across the power source [INCORRECT - Would measure voltage]
D) To ground only [INCORRECT - Would not measure load current]
Rationale: Ammeter connection: must be connected in series with load . Current
measurement requires the meter to carry the same current as the circuit element being
measured. Series connection ensures all current flows through the meter. Parallel connection
would create a dangerous short circuit and incorrect measurement.
Question 4
Shielding of the meter leads protects the analog meter from:
A) Voltage spikes [INCORRECT - Surge protection different function]
B) Stray magnetic fields [CORRECT]
C) Temperature variations [INCORRECT - Thermal compensation different]
D) Mechanical vibration [INCORRECT - Physical protection different]
Rationale: Shielding protection: protects analog meter from stray magnetic fields . Shielded
leads prevent electromagnetic interference from inducing unwanted currents in measurement
circuits, which is critical for accurate analog meter readings in industrial environments with
high electromagnetic noise.
Question 5
What is the primary advantage of LCD over LED displays?
A) Higher brightness [INCORRECT - LEDs typically brighter]
B) Lower power consumption [CORRECT]
C) Wider viewing angle [INCORRECT - Depends on specific technology]
D) Faster response time [INCORRECT - LEDs typically faster]
, Rationale: LCD advantage over LED: lower power consumption . Liquid Crystal Displays use
passive light modulation (blocking/unblocking backlight) rather than active light emission,
resulting in significantly lower power requirements—critical for battery-powered and
energy-efficient instrumentation.
Question 6
To display a bar graph or waveform on an LCD screen requires:
A) Simple resistor network [INCORRECT - Insufficient for complex graphics]
B) Microprocessor circuitry [CORRECT]
C) Capacitor bank only [INCORRECT - No processing capability]
D) Transformer coupling [INCORRECT - Signal transformation, not processing]
Rationale: Bar graph/waveform display on LCD screen: requires microprocessor circuitry .
Complex graphical displays require digital processing to generate pixel data, refresh timing,
and waveform calculations—functions performed by microprocessor-based controllers.
Question 7
When a capacitor is removed from a circuit, it:
A) Immediately loses all charge [INCORRECT - Capacitors store charge]
B) Retains its charge [CORRECT]
C) Converts charge to heat [INCORRECT - No conversion mechanism]
D) Dissipates charge through air instantly [INCORRECT - Requires discharge path]
Rationale: Capacitor behavior when removed from circuit: retains its charge . Capacitors
store energy in an electric field and maintain their charge state when disconnected. This
property makes discharge safety procedures essential when servicing capacitor-containing
equipment.
Question 8
True or False: 240-volt systems require smaller circuit breakers than 480-volt systems for the
same power load.
Answer: FALSE [CORRECT]
Rationale: 240-volt vs. 480-volt systems: 240V systems do NOT require smaller circuit
breakers . For the same power load, 480V systems actually use smaller breakers because
2026/2027 | Electrical & Instrumentation
Technician | Certification Exam | Verified
Q&A | Pass Guaranteed - A+ Graded
DOMAIN 1: ELECTRICAL THEORY & FUNDAMENTAL
PRINCIPLES (10 Questions)
Question 1
If the potential difference across a coil is low, the coil will:
A) Draw too much current [INCORRECT - Low voltage reduces current]
B) Become too hot [INCORRECT - Insufficient power for heating]
C) Produce too much magnetic force [INCORRECT - Magnetic force proportional to current]
D) Not heat up [CORRECT]
Rationale: Verified CWEA E/I Level 3 exam content states that when the potential difference
across a coil is low, the coil will NOT heat up . According to Ohm's Law (I = V/R) and the
power formula (P = V²/R), low voltage results in reduced current flow and correspondingly
reduced power dissipation as heat. Options A, B, and C describe effects of excessive voltage
or current, not low voltage conditions.
Question 2
Which of the following reduces high voltages and currents to safe values for measurements?
A) Auto transformer [INCORRECT - Used for voltage adjustment, not measurement isolation]
B) Megohmmeter [INCORRECT - Measures insulation resistance]
C) Instrument transformer [CORRECT]
D) Variable transformer [INCORRECT - Used for voltage control]
Rationale: Instrument transformers (potential transformers and current transformers) are
specifically designed to step down high voltages and currents to standardized, safe,
,measurable levels for meters, protective relays, and instruments . They provide electrical
isolation and accurate proportional outputs for measurement and control systems.
Question 3
An ammeter must be connected:
A) In parallel with the load [INCORRECT - Would create short circuit]
B) In series with the load [CORRECT]
C) Across the power source [INCORRECT - Would measure voltage]
D) To ground only [INCORRECT - Would not measure load current]
Rationale: Ammeter connection: must be connected in series with load . Current
measurement requires the meter to carry the same current as the circuit element being
measured. Series connection ensures all current flows through the meter. Parallel connection
would create a dangerous short circuit and incorrect measurement.
Question 4
Shielding of the meter leads protects the analog meter from:
A) Voltage spikes [INCORRECT - Surge protection different function]
B) Stray magnetic fields [CORRECT]
C) Temperature variations [INCORRECT - Thermal compensation different]
D) Mechanical vibration [INCORRECT - Physical protection different]
Rationale: Shielding protection: protects analog meter from stray magnetic fields . Shielded
leads prevent electromagnetic interference from inducing unwanted currents in measurement
circuits, which is critical for accurate analog meter readings in industrial environments with
high electromagnetic noise.
Question 5
What is the primary advantage of LCD over LED displays?
A) Higher brightness [INCORRECT - LEDs typically brighter]
B) Lower power consumption [CORRECT]
C) Wider viewing angle [INCORRECT - Depends on specific technology]
D) Faster response time [INCORRECT - LEDs typically faster]
, Rationale: LCD advantage over LED: lower power consumption . Liquid Crystal Displays use
passive light modulation (blocking/unblocking backlight) rather than active light emission,
resulting in significantly lower power requirements—critical for battery-powered and
energy-efficient instrumentation.
Question 6
To display a bar graph or waveform on an LCD screen requires:
A) Simple resistor network [INCORRECT - Insufficient for complex graphics]
B) Microprocessor circuitry [CORRECT]
C) Capacitor bank only [INCORRECT - No processing capability]
D) Transformer coupling [INCORRECT - Signal transformation, not processing]
Rationale: Bar graph/waveform display on LCD screen: requires microprocessor circuitry .
Complex graphical displays require digital processing to generate pixel data, refresh timing,
and waveform calculations—functions performed by microprocessor-based controllers.
Question 7
When a capacitor is removed from a circuit, it:
A) Immediately loses all charge [INCORRECT - Capacitors store charge]
B) Retains its charge [CORRECT]
C) Converts charge to heat [INCORRECT - No conversion mechanism]
D) Dissipates charge through air instantly [INCORRECT - Requires discharge path]
Rationale: Capacitor behavior when removed from circuit: retains its charge . Capacitors
store energy in an electric field and maintain their charge state when disconnected. This
property makes discharge safety procedures essential when servicing capacitor-containing
equipment.
Question 8
True or False: 240-volt systems require smaller circuit breakers than 480-volt systems for the
same power load.
Answer: FALSE [CORRECT]
Rationale: 240-volt vs. 480-volt systems: 240V systems do NOT require smaller circuit
breakers . For the same power load, 480V systems actually use smaller breakers because
