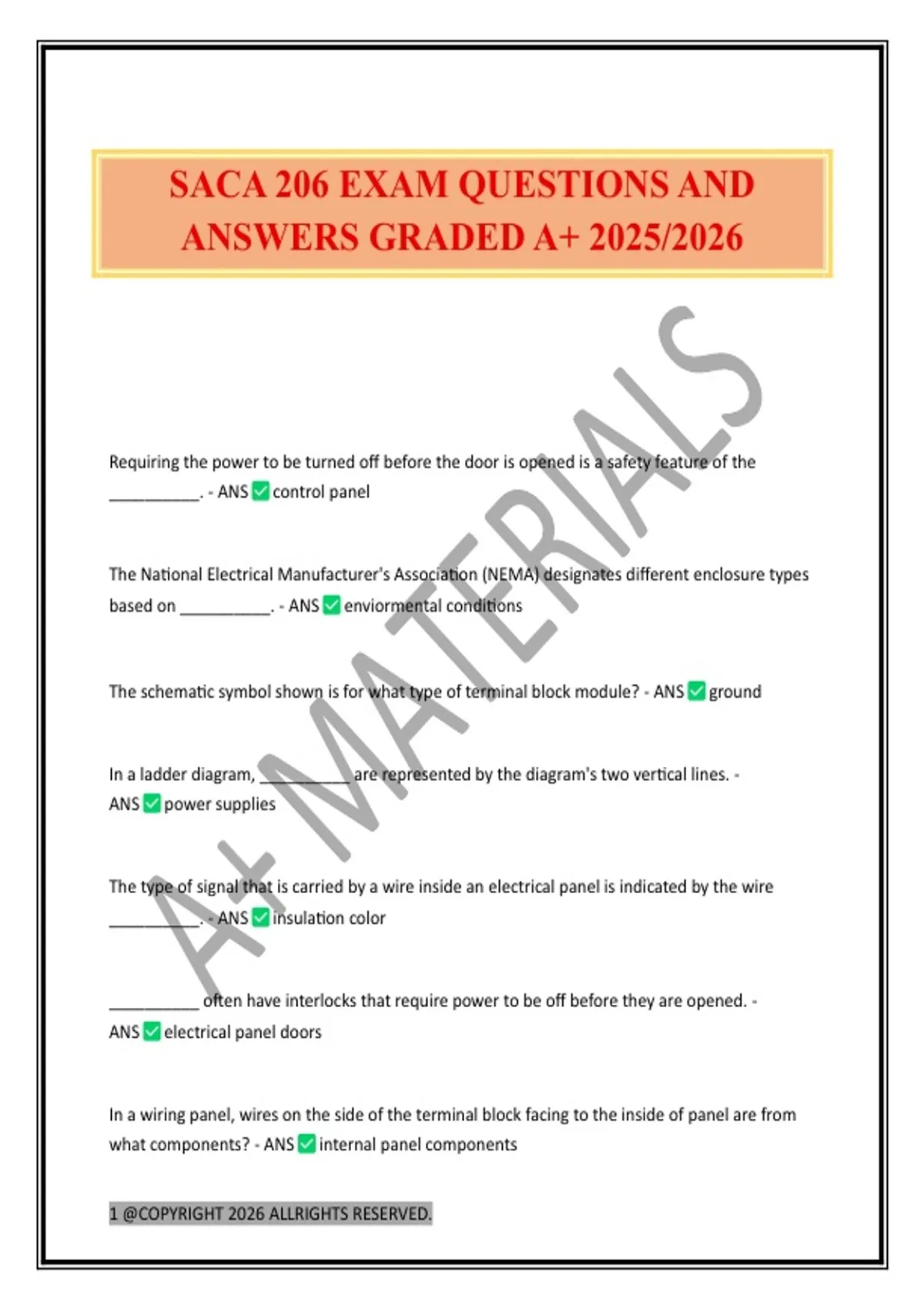

SACA 206 EXAM QUESTIONS AND
ANSWERS GRADED A+ 2025/2026
Requiring the power to be turned off before the door is opened is a safety feature of the
__________. - ANS control panel
The National Electrical Manufacturer's Association (NEMA) designates different enclosure types
based on __________. - ANS enviormental conditions
The schematic symbol shown is for what type of terminal block module? - ANS ground
In a ladder diagram, __________ are represented by the diagram's two vertical lines. -
ANS power supplies
The type of signal that is carried by a wire inside an electrical panel is indicated by the wire
__________. - ANS insulation color
__________ often have interlocks that require power to be off before they are opened. -
ANS electrical panel doors
In a wiring panel, wires on the side of the terminal block facing to the inside of panel are from
what components? - ANS internal panel components
1 @COPYRIGHT 2026 ALLRIGHTS RESERVED.
, Ladder diagrams with multiple pages use __________ and notes to indicate the previous and
next pages. - ANS arrows
Junction blocks should always be used for wires exiting or entering a control panel or
__________. - ANS terminal box
Terminal blocks are installed inside electrical panels in a certain pattern according to the wiring
__________. - ANS function
It is good practice to limit the number of connections per terminal block to __________ wires. -
ANS two or less
The four primary components of a ladder diagram are power supply, input devices, output
devices, and __________. - ANS conductors
The function of a(n) __________ is to show how components in an electrical system are
connected and sometimes where they are located. - ANS electrical print
Wire numbers attached to wires in an electrical panel should match the wire numbers shown on
the __________. - ANS electircal print
A ladder diagram separates input devices to the __________ side and output devices to the
__________ side. - ANS left, right
What does a wiring diagram show? - ANS Physical wiring connections
