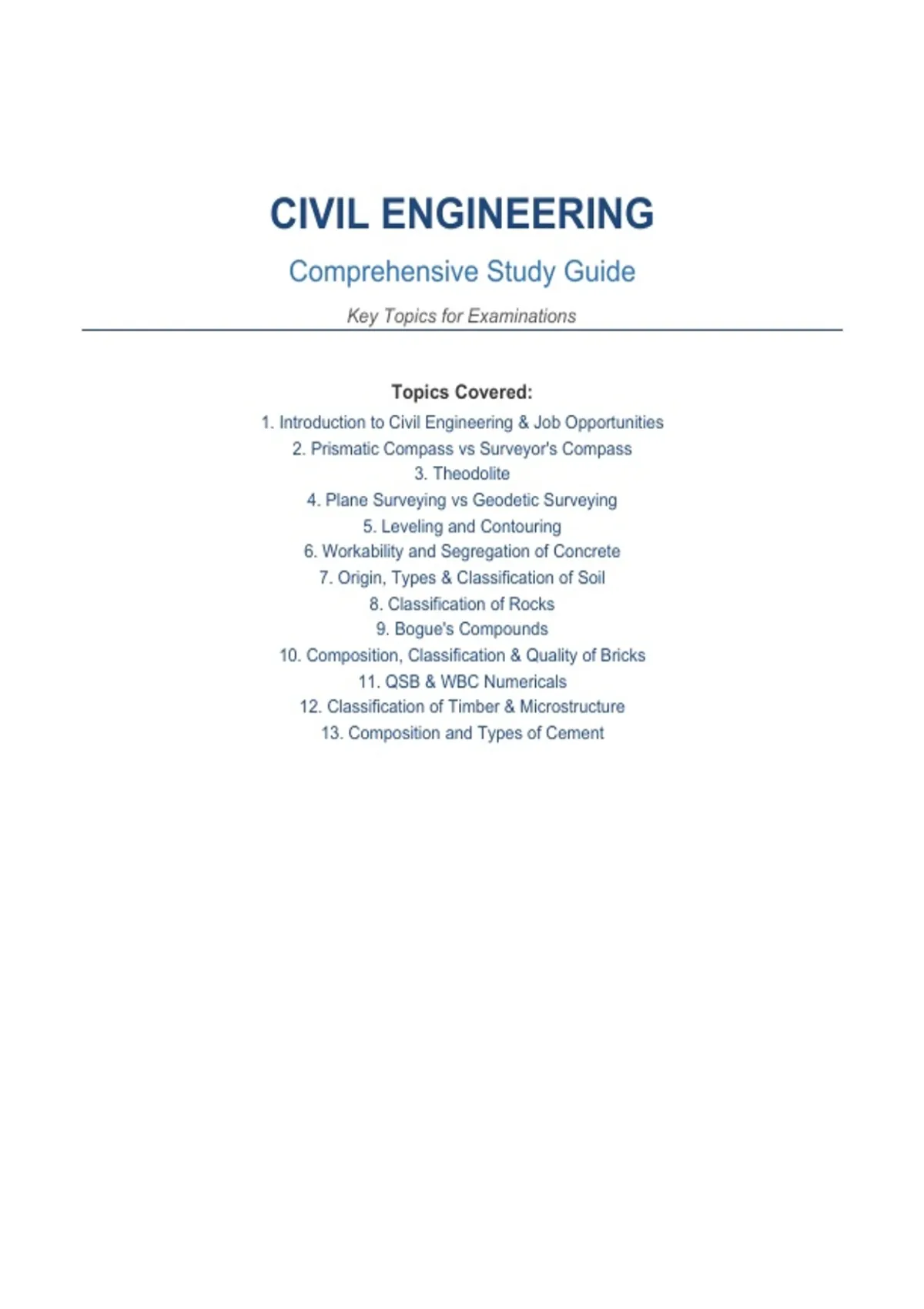

CIVIL ENGINEERING
Comprehensive Study Guide
Key Topics for Examinations
Topics Covered:
1. Introduction to Civil Engineering & Job Opportunities
2. Prismatic Compass vs Surveyor's Compass
3. Theodolite
4. Plane Surveying vs Geodetic Surveying
5. Leveling and Contouring
6. Workability and Segregation of Concrete
7. Origin, Types & Classification of Soil
8. Classification of Rocks
9. Bogue's Compounds
10. Composition, Classification & Quality of Bricks
11. QSB & WBC Numericals
12. Classification of Timber & Microstructure
13. Composition and Types of Cement
,1. Introduction to Civil Engineering & Job Opportunities
What is Civil Engineering?
Civil Engineering is one of the oldest and broadest engineering disciplines. It deals with the design,
construction, and maintenance of the physical and naturally built environment, including structures such
as roads, bridges, canals, dams, airports, sewage systems, pipelines, and railways.
Civil Engineering is broadly classified into the following sub-disciplines:
• Structural Engineering – Design of load-bearing structures (bridges, buildings, dams)
• Geotechnical Engineering – Study of soil and rock for foundations
• Transportation Engineering – Design of roads, railways, airports, harbors
• Environmental Engineering – Water treatment, pollution control, waste management
• Construction Engineering – Planning, execution, and management of construction
• Water Resources Engineering – Irrigation, flood control, hydrology
• Surveying – Measurement and mapping of land
Job Opportunities in Civil Engineering
Civil Engineers are in high demand in both public and private sectors. Major job roles include:
Job Role Sector Key Responsibilities
Site Engineer Private / Government Supervise construction,
quality control
Structural Engineer Private Design bridges, buildings,
dams
Transportation Engineer Government (NHAI, PWD) Road design, traffic planning
Water Resources Engineer Government (CWC, Dam design, irrigation
Irrigation Dept) planning
Urban Planner Municipal Corporations City layout, zoning,
infrastructure
Construction Manager Private Contractors Project management, cost
estimation
Environmental Engineer Government / NGOs Pollution control,
sustainability
Surveyor / GIS Expert Public / Private Land mapping, GPS surveys
Geotechnical Engineer Private Soil testing, foundation
design
Professor / Researcher Universities / R&D Teaching, research,
innovation
Top recruiting organizations include NHAI, PWD, CPWD, Railways, ONGC, L&T, Gammon India, and
various state government departments. Civil Engineering graduates can also appear for competitive
exams like GATE, ESE (IES), SSC-JE, and state PSC exams.
, 2. Prismatic Compass vs Surveyor's Compass
Both instruments are used in surveying to measure the direction of a survey line with respect to
magnetic north. However, they differ significantly in design and application.
Feature Prismatic Compass Surveyor's Compass
Graduated Ring Moves with the needle; Fixed to the box; graduated 0°–
graduated 0°–360° in clockwise 90° in each quadrant (NE, NW,
direction SE, SW)
Reading Method Read through a prism directly; Read directly by looking at the
can read while sighting top of the needle; must stop to
read
Bearing System Whole Circle Bearing (WCB) – Quadrantal Bearing (QB) – N/S
0° to 360° 0° to 90° E/W
Tripod Required? Not essential; can be hand-held Essential; must be mounted on
tripod
Accuracy Less precise (suitable for More precise (suitable for
reconnaissance surveys) detailed surveys)
Magnetic Needle Broad, damped needle; Long, thin needle; more
suspended on pivot sensitive
Sighting Vane Object vane + prism for Object vane and eye vane;
simultaneous sighting and reading and sighting done
reading separately
Effect of Errors Less affected by personal errors More affected; requires careful
while reading reading
Applications Preliminary surveys, forest Plane table surveys, detailed
surveys, rough mapping cadastral surveys
