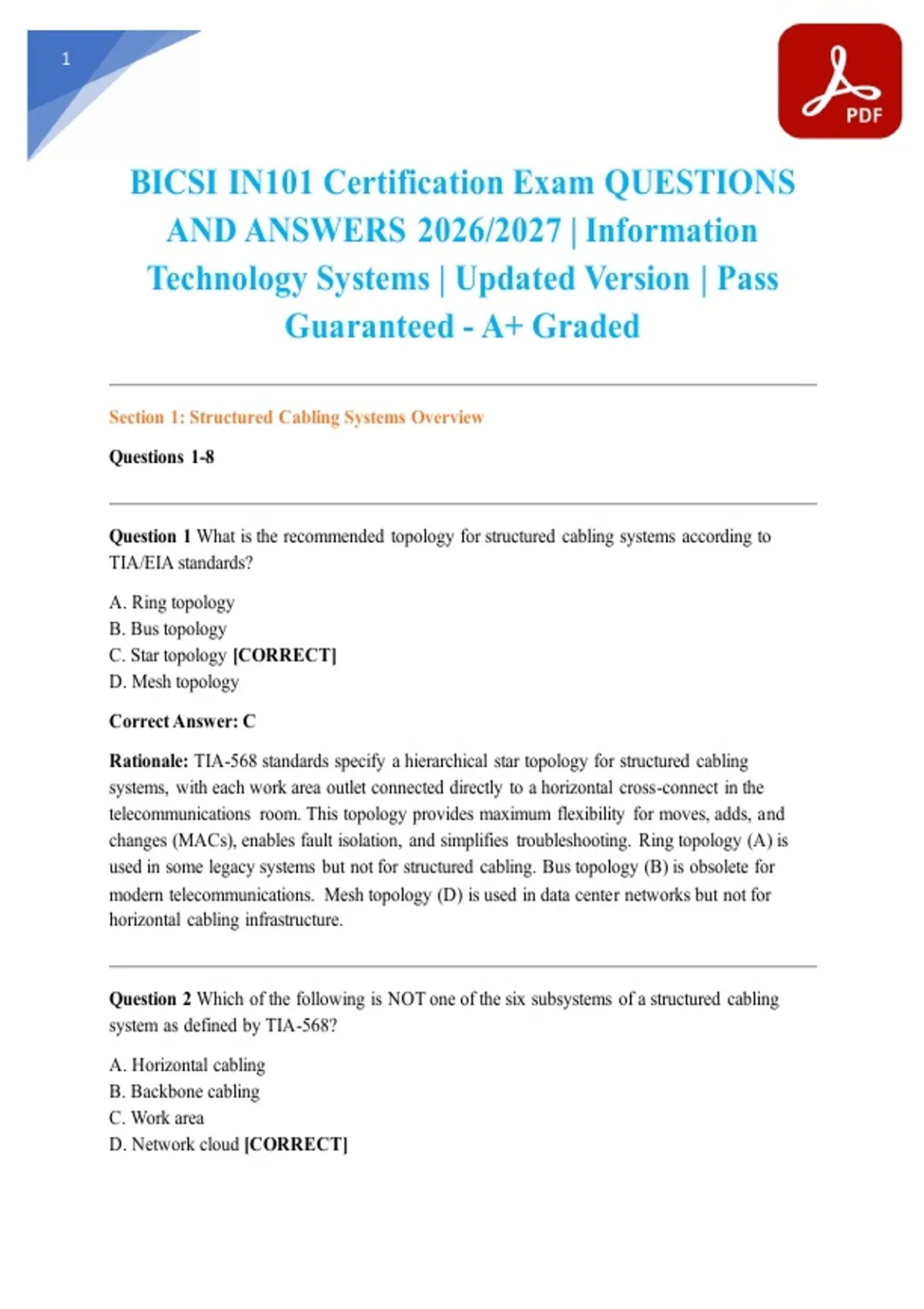

1
BICSI IN101 Certification Exam QUESTIONS
AND ANSWERS 2026/2027 | Information
Technology Systems | Updated Version | Pass
Guaranteed - A+ Graded
Section 1: Structured Cabling Systems Overview
Questions 1-8
Question 1 What is the recommended topology for structured cabling systems according to
TIA/EIA standards?
A. Ring topology
B. Bus topology
C. Star topology [CORRECT]
D. Mesh topology
Correct Answer: C
Rationale: TIA-568 standards specify a hierarchical star topology for structured cabling
systems, with each work area outlet connected directly to a horizontal cross-connect in the
telecommunications room. This topology provides maximum flexibility for moves, adds, and
changes (MACs), enables fault isolation, and simplifies troubleshooting. Ring topology (A) is
used in some legacy systems but not for structured cabling. Bus topology (B) is obsolete for
modern telecommunications. Mesh topology (D) is used in data center networks but not for
horizontal cabling infrastructure.
Question 2 Which of the following is NOT one of the six subsystems of a structured cabling
system as defined by TIA-568?
A. Horizontal cabling
B. Backbone cabling
C. Work area
D. Network cloud [CORRECT]
,2
Correct Answer: D
Rationale: TIA-568 defines six subsystems: Entrance Facility (EF), Equipment Room (ER),
Telecommunications Room (TR), Backbone Cabling (vertical cabling), Horizontal Cabling, and
Work Area. "Network cloud" (D) refers to external service provider networks and is not a
structured cabling subsystem. All other options (A, B, C) are officially defined subsystems
critical to the hierarchical star topology.
Question 3 The maximum horizontal cable distance from the telecommunications room (TR) to
the work area outlet is:
A. 100 meters (328 feet) total channel length only
B. 90 meters (295 feet) for permanent link, plus 10 meters (33 feet) for patch cords
[CORRECT]
C. 100 meters for backbone only
D. 50 meters for copper, 100 meters for fiber
Correct Answer: B
Rationale: TIA-568-D specifies a maximum horizontal distance of 90 meters for the permanent
link (solid conductor horizontal cable) plus up to 10 meters total for patch cords and equipment
cables at both ends, for a total channel length of 100 meters. This applies to copper cabling
(Cat5e and above). Option A is incomplete because it doesn't specify the permanent link/channel
distinction. Option C confuses backbone with horizontal. Option D is incorrect as the 100-meter
limit applies to both copper and multimode fiber horizontal cabling.
Question 4 According to TIA-606, what is the primary purpose of cable administration and
labeling standards?
A. To ensure cables meet electrical specifications
B. To provide unique identification for all infrastructure components throughout their lifecycle
[CORRECT]
C. To determine cable routing paths
D. To specify cable performance testing requirements
Correct Answer: B
Rationale: TIA-606 is the Administration Standard for Telecommunications Infrastructure. Its
primary purpose is to establish labeling and record-keeping requirements that provide unique
identification for cables, pathways, spaces, and hardware throughout their lifecycle. This enables
efficient moves, adds, changes, troubleshooting, and asset management. Option A refers to TIA-
,3
568 performance specs. Option C relates to TIA-569 pathways. Option D concerns testing
standards, not administration.
Question 5 In a hierarchical star topology, what is the maximum number of hierarchical levels
allowed between any two pieces of equipment?
A. Two levels
B. Three levels [CORRECT]
C. Four levels
D. Unlimited levels
Correct Answer: B
Rationale: TIA-568 specifies a maximum of three hierarchical levels in the cabling architecture:
Campus Distributor (CD), Building Distributor (BD), and Floor Distributor (FD). This limits the
path between any two pieces of equipment to three links (CD-BD, BD-FD, FD-TO), ensuring
predictable transmission performance and simplifying troubleshooting. Fewer levels (A) may be
used in small installations, but more than three (C, D) would violate standards and potentially
degrade signal quality.
Question 6 Which of the following best describes the function of a consolidation point (CP)?
A. A location where backbone cabling terminates
B. An intermediate connection point between the telecommunications room and work area
outlets [CORRECT]
C. The main grounding point for the building
D. A fiber optic splice enclosure only
Correct Answer: B
Rationale: A consolidation point (CP) is an optional intermediate interconnection point located
in the horizontal cabling between the telecommunications room and work area outlets. It allows
flexibility in open office environments for rearranging furniture without pulling new cable from
the TR. It is not a backbone termination point (A), not a grounding point (C), and can be used
with copper or fiber (D is too narrow). The CP must be located at least 15 meters from the TR to
avoid crosstalk issues.
Question 7 What is the primary advantage of using a modular patching system in the
telecommunications room?
, 4
A. Reduced cable cost
B. Flexibility for moves, adds, and changes (MACs) [CORRECT]
C. Improved cable shielding
D. Elimination of testing requirements
Correct Answer: B
Rationale: Modular patching systems (patch panels and switches) provide maximum flexibility
for MACs by allowing logical connections to be changed via patch cords without disturbing the
permanent horizontal cabling infrastructure. This reduces downtime and labor costs for
reconfigurations. Option A is incorrect as patching adds cost. Option C is unrelated to patching.
Option D is false—testing is still required regardless of patching.
Question 8 Quality assurance in structured cabling projects includes all EXCEPT:
A. Verification of materials against specifications
B. Testing and certification of installed cabling
C. Documentation of installation practices
D. Selection of the lowest bid contractor without qualification review [CORRECT]
Correct Answer: D
Rationale: Quality assurance involves verifying materials (A), testing/certification (B), and
documentation (C). Selecting contractors based solely on lowest bid without reviewing
qualifications, experience, and certifications (D) violates quality assurance principles and often
leads to installation failures. BICSI and TIA standards emphasize contractor qualification and
quality over cost alone.
Section 2: Cabling Media (Copper and Fiber)
Questions 9-20
Question 9 Category 6A (Augmented Category 6) cabling is rated for frequencies up to:
A. 100 MHz
B. 250 MHz
C. 500 MHz [CORRECT]
D. 1000 MHz
Correct Answer: C
