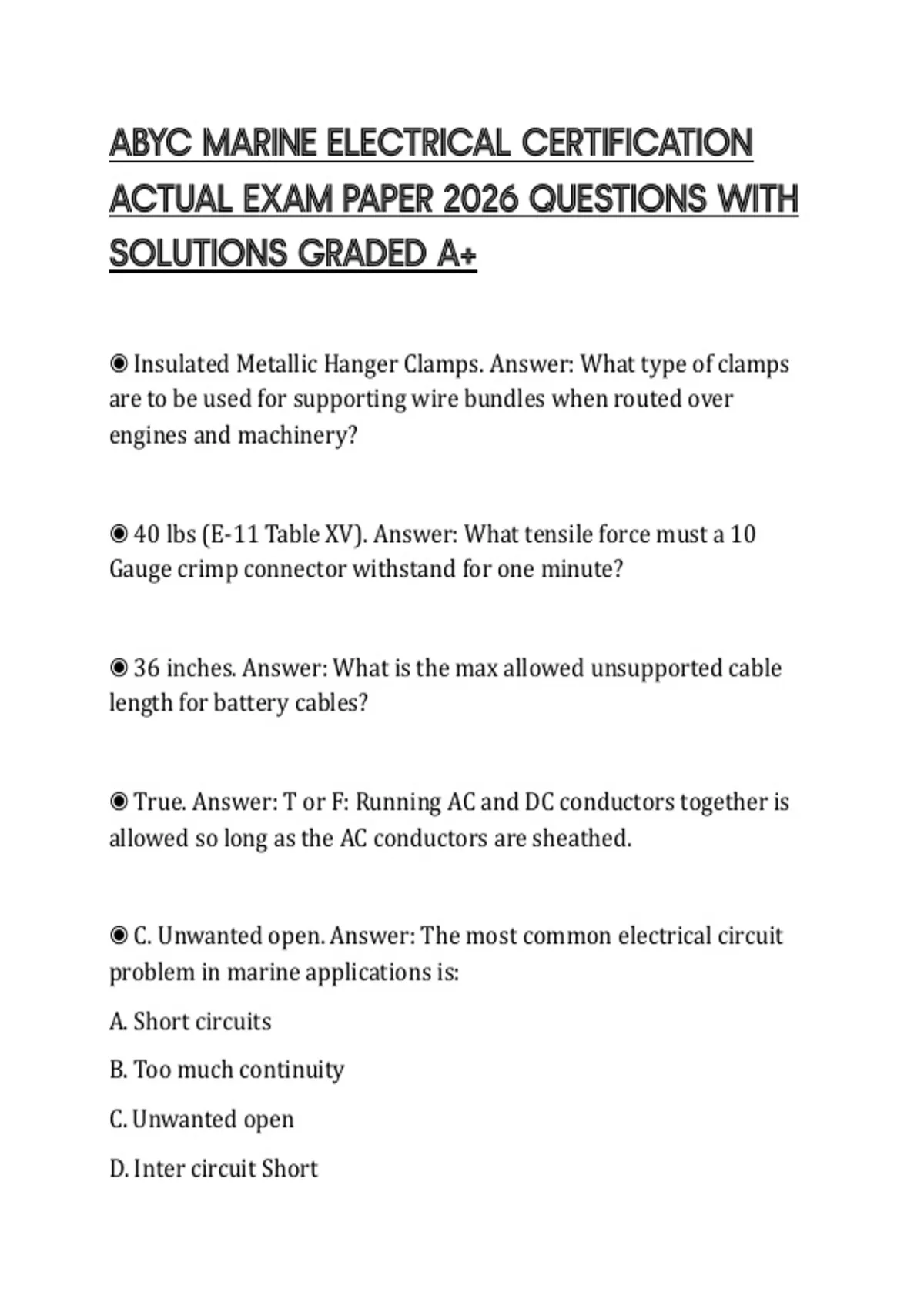

ABYC MARINE ELECTRICAL CERTIFICATION
ACTUAL EXAM PAPER 2026 QUESTIONS WITH
SOLUTIONS GRADED A+
◉ Insulated Metallic Hanger Clamps. Answer: What type of clamps
are to be used for supporting wire bundles when routed over
engines and machinery?
◉ 40 lbs (E-11 Table XV). Answer: What tensile force must a 10
Gauge crimp connector withstand for one minute?
◉ 36 inches. Answer: What is the max allowed unsupported cable
length for battery cables?
◉ True. Answer: T or F: Running AC and DC conductors together is
allowed so long as the AC conductors are sheathed.
◉ C. Unwanted open. Answer: The most common electrical circuit
problem in marine applications is:
A. Short circuits
B. Too much continuity
C. Unwanted open
D. Inter circuit Short
,◉ D. Heat. Answer: The primary by-product of excessive electrical
resistance is:
A. Increased Amperage
B. Increased Voltage
C. Reduced Ambient Temperature
D. Heat
◉ 1 HP = 746 Watts. Answer: One HP = how many watts?
◉ D. TDR (time-domain reflectometer). Answer: What is the
preferred tool for tracing shorted and open circuits?
A. Ohm meter
B. Amp clamp
C. Volt meter
D. TDR (time-domain reflectometer)
◉ 0 AWG. Answer: A technician is installing a cable run from the
batteries to the main DC panel board on a boat as part of a refit. The
boat has a 12-volt system and the distance form the panel to the
batteries is 15 ft. The maximum current draw from the panel is
calculated at 90 amps. What guage cable should be used
(minimum)?
,◉ Yellow. Answer: DC grounded conductors on new boats that are
also equipped with AC systems should use what color insulated
wire?
◉ 16 AWG. Answer: What is the smallest guage wire allowed for
unsheathed wire runs through the boat?
◉ False. Start batteries have a greater number of thinner plates
within each cell.. Answer: T or F: Compared to deep cycle (house)
batteries, cranking batteries will have thicker lead plates to facilitate
the higher, short-duration current draws.
◉ Cranking. Answer: Which type of battery generally recharges
faster? Deep cycle or cranking?
◉ Wire brush and backing soda.. Answer: What tool and common
household staple are used to clean battery terminals?
◉ Most of the sulfuric acid has been absorbed into the lead plates,
leaving mostly water in the electrolyte.. Answer: Why might a fully-
discharged wet-cell type battery freeze?
◉ 1 inch, 90 lbs or 2x the battery weight, for 1 minute in each
direction.. Answer: Batteries must be secured to prevent movement
of more than ______ inches in any direction when a pulling force of
, _____ or _____, whichever is less, is applied through the center of
gravity of the battery for how long?
◉ True. Answer: T or F: it is ok to install batteries directly below an
uninterrupted fuel line?
◉ Must be protected with dielectric insulating material. Answer:
What provision must be in place on any fuel line located within 12
inches of a battery terminals?
◉ 80 F, 25 Amps, 10.5 Volts. Answer: Define: Battery reserve
capacity = the number of minutes that a new, fully charged battery at
______ degrees F can be continuously discharged at ______ amps while
maintaining _____ volts (for a 12 v battery)
◉ 90 minutes. Answer: According to ABYC, what is the minimum
battery reserve capacity?
◉ 32 degrees F, 30 seconds, 7.2V. Answer: Define: Marine Cranking
Amps = the discharge load, in amperes, that a new, fully-charged
battery at _____ degrees F can deliver for ______ seconds while
maintaining a voltage of _____ volts (for a 12 v battery).
◉ 0 degrees F, 30 seconds, 7.2V. Answer: Define: Cold Cranking
Amps = the discharge load, in amperes, that a new, fully-charged
