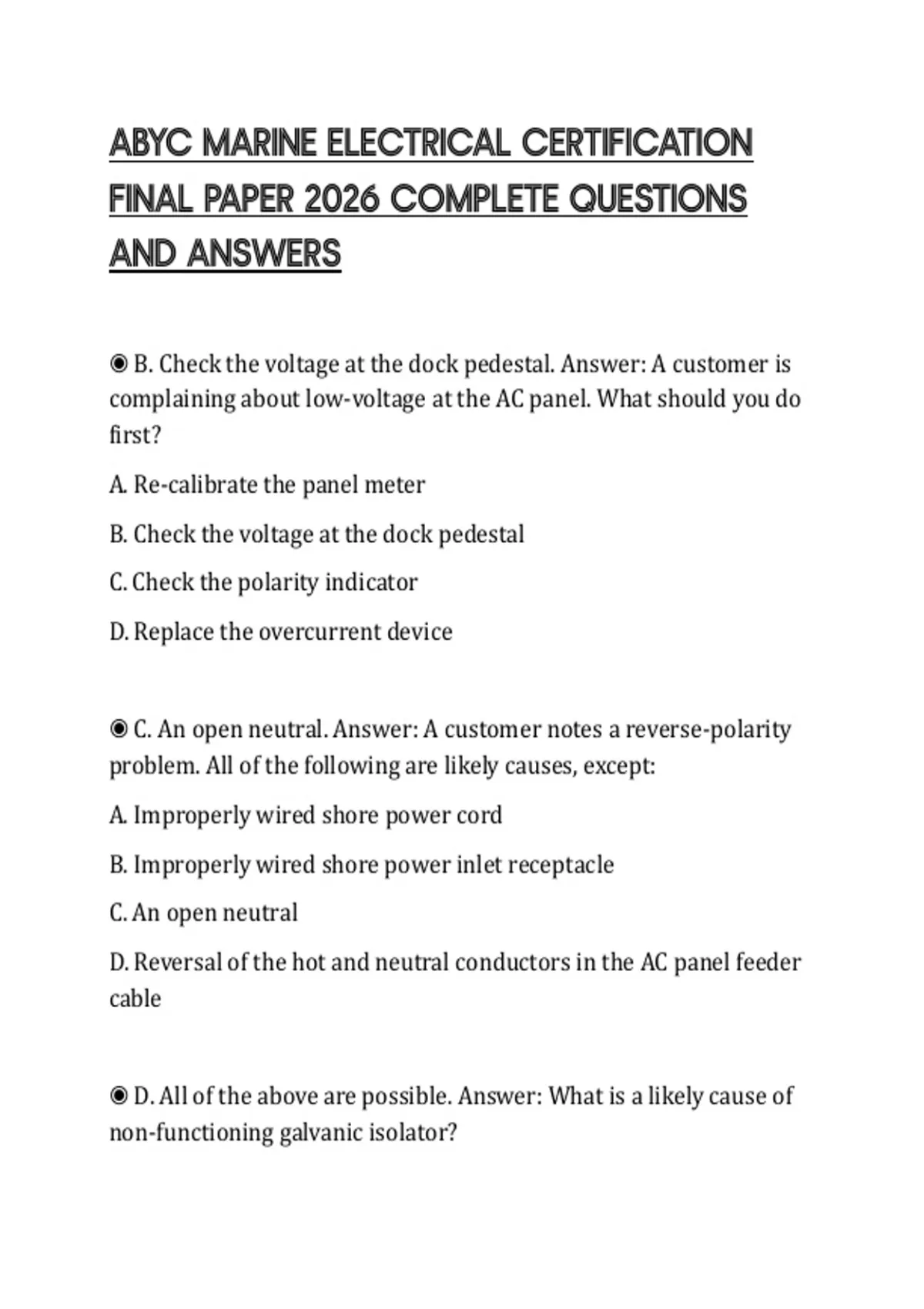

ABYC MARINE ELECTRICAL CERTIFICATION
FINAL PAPER 2026 COMPLETE QUESTIONS
AND ANSWERS
◉ B. Check the voltage at the dock pedestal. Answer: A customer is
complaining about low-voltage at the AC panel. What should you do
first?
A. Re-calibrate the panel meter
B. Check the voltage at the dock pedestal
C. Check the polarity indicator
D. Replace the overcurrent device
◉ C. An open neutral. Answer: A customer notes a reverse-polarity
problem. All of the following are likely causes, except:
A. Improperly wired shore power cord
B. Improperly wired shore power inlet receptacle
C. An open neutral
D. Reversal of the hot and neutral conductors in the AC panel feeder
cable
◉ D. All of the above are possible. Answer: What is a likely cause of
non-functioning galvanic isolator?
,A. a shorted isolator diode
B. Improper current rating of the isolator diode
C. An on-board neutral-to-ground connection
D. All of the above are possible
◉ D. Burned out 120V appliance. Answer: An "open Neutral"
conductor in a 240V/120V shore power system will most likely
show up as:
A. Nuisance tripping of the AC main breaker
B. Nuisance tripping of an appliance branch circuit breaker
C. A loud humming noise emitted from the TV
D. Burned out 120V appliance
◉ True (provided the generator's self-limiting current, AKA
"overload current", does not exceed 120% of it's rated current
output). Answer: T or F: Generators that are "self-limiting" do not
require overcurrent protection if the conductors used are of
sufficient ampacity and sized for maximum current available.
◉ Mega ohm meter (AKA "merger"), 1 M Ohm. Answer: What tool is
used to test the insulation integrity of a generator windings and
what is the generally accepted Mimimal measurement?
,◉ C. Excessive voltage drop across the remote starter switch.
Answer: A customer complains that her generator will start from the
local control panel at the generator, but not from the remote control
panel at the helm. Which of the foillowing is the most probably
cause?
A. Bad generator starter solenoid
B. Low voltage at the starter battery
C. Excessive voltage drop across the remote starter switch
D. Loose battery cable clamp at the starter battery
◉ B. Faulty exciter winding / diode rectifier circuit. Answer: On a
brushless generator, a possible cause for low AC voltage output
under load could be:
A. High engine RPM
B. Faulty exciter winding / diode rectifier circuit
C. Faulty output circuit breaker
D. Excessively high DC voltage supply
◉ A. Tech A. Answer: Tech A says the ABYC has pull-test requirement
for wiring connecting the generator to onboard circuits. Tech B says
pull-test requirements are dictated by the generator manufacture.
Which one is correct?
A. Tech A
B. Tech B
, C. Both Techs
D. Neither Tech
◉ True. Answer: T or F: metal AC panel boards must be grounded.
◉ True. Answer: T or F: Boats that have an inverter installed must
have a warning label noting such at the main electrical panel
◉ The sub-panel breaker's trip point shall be no greater than 100%
of the total current draw for the entire sub-panel.. Answer: What
must be true of a sub-panel input circuit breaker's rating such that
the main breaker may be sized up to 150% of the sub-panel feeder
conductor's ampacity?
◉ 75 C (167 F) (E-11.14.1.1.3). Answer: What is the minimum
insulation temperature rating for conductors routed inside an
engine room?
◉ 50 VDC (E-11.14.1.2.1). Answer: What is the minimum voltage
rating for all DC conductors?
◉ 24 inches (E-11.14.1.3.7.1). Answer: When multiple DC
conductors are bundled together for a distance of greater than ____
inches, the allowable ampacity of each conductor must be derated
based on the table found within standard E-11
