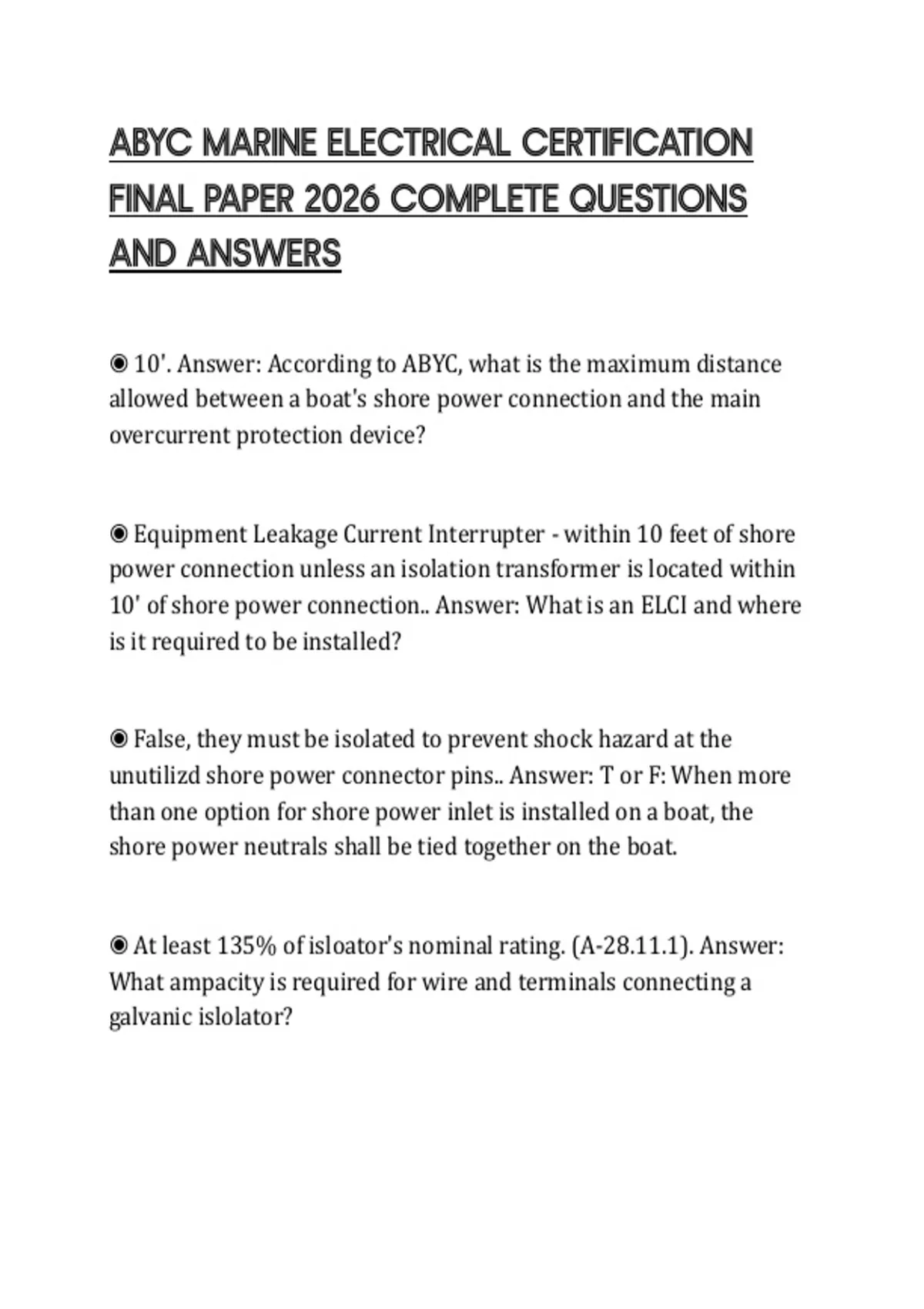

ABYC MARINE ELECTRICAL CERTIFICATION
FINAL PAPER 2026 COMPLETE QUESTIONS
AND ANSWERS
◉ 10'. Answer: According to ABYC, what is the maximum distance
allowed between a boat's shore power connection and the main
overcurrent protection device?
◉ Equipment Leakage Current Interrupter - within 10 feet of shore
power connection unless an isolation transformer is located within
10' of shore power connection.. Answer: What is an ELCI and where
is it required to be installed?
◉ False, they must be isolated to prevent shock hazard at the
unutilizd shore power connector pins.. Answer: T or F: When more
than one option for shore power inlet is installed on a boat, the
shore power neutrals shall be tied together on the boat.
◉ At least 135% of isloator's nominal rating. (A-28.11.1). Answer:
What ampacity is required for wire and terminals connecting a
galvanic islolator?
,◉ Ampacity < 20 Amps, voltage drop across terminals < 50 mV @ 20
A flow, no separation with a one-minute pull of 6 lb force.. Answer:
What is the general rule for use of friction connectors?
◉ > 25 degrees above ambient. Answer: When measuring
temperature to determine potential electrical issues involving
excessive connector resistance, what is the threshold for concern?
◉ B. Not be grounded on the boat. Answer: According to the ABYC,
the shore-power grounded conductor should:
A. Be connected to the AC neutral
B. Not be grounded on the boat
C. Be connected to the engine common positive terminal or its bus
D. Be tied to the battery isolator
◉ A. Polarity check of shore cord. Answer: If a customer complains
about receiving shocks from her boat when shore power is active,
the technican should first test:
A. Polarity check of shore cord
B. Polarity check of the battery system
C. Current Leakage Test
D. Converter voltage check
,◉ B. Check the voltage at the dock pedestal. Answer: A customer is
complaining about low-voltage at the AC panel. What should you do
first?
A. Re-calibrate the panel meter
B. Check the voltage at the dock pedestal
C. Check the polarity indicator
D. Replace the overcurrent device
◉ C. An open neutral. Answer: A customer notes a reverse-polarity
problem. All of the following are likely causes, except:
A. Improperly wired shore power cord
B. Improperly wired shore power inlet receptacle
C. An open neutral
D. Reversal of the hot and neutral conductors in the AC panel feeder
cable
◉ D. All of the above are possible. Answer: What is a likely cause of
non-functioning galvanic isolator?
A. a shorted isolator diode
B. Improper current rating of the isolator diode
C. An on-board neutral-to-ground connection
D. All of the above are possible
, ◉ D. Burned out 120V appliance. Answer: An "open Neutral"
conductor in a 240V/120V shore power system will most likely
show up as:
A. Nuisance tripping of the AC main breaker
B. Nuisance tripping of an appliance branch circuit breaker
C. A loud humming noise emitted from the TV
D. Burned out 120V appliance
◉ True (provided the generator's self-limiting current, AKA
"overload current", does not exceed 120% of it's rated current
output). Answer: T or F: Generators that are "self-limiting" do not
require overcurrent protection if the conductors used are of
sufficient ampacity and sized for maximum current available.
◉ Mega ohm meter (AKA "merger"), 1 M Ohm. Answer: What tool is
used to test the insulation integrity of a generator windings and
what is the generally accepted Mimimal measurement?
◉ C. Excessive voltage drop across the remote starter switch.
Answer: A customer complains that her generator will start from the
local control panel at the generator, but not from the remote control
panel at the helm. Which of the foillowing is the most probably
cause?
A. Bad generator starter solenoid
B. Low voltage at the starter battery
