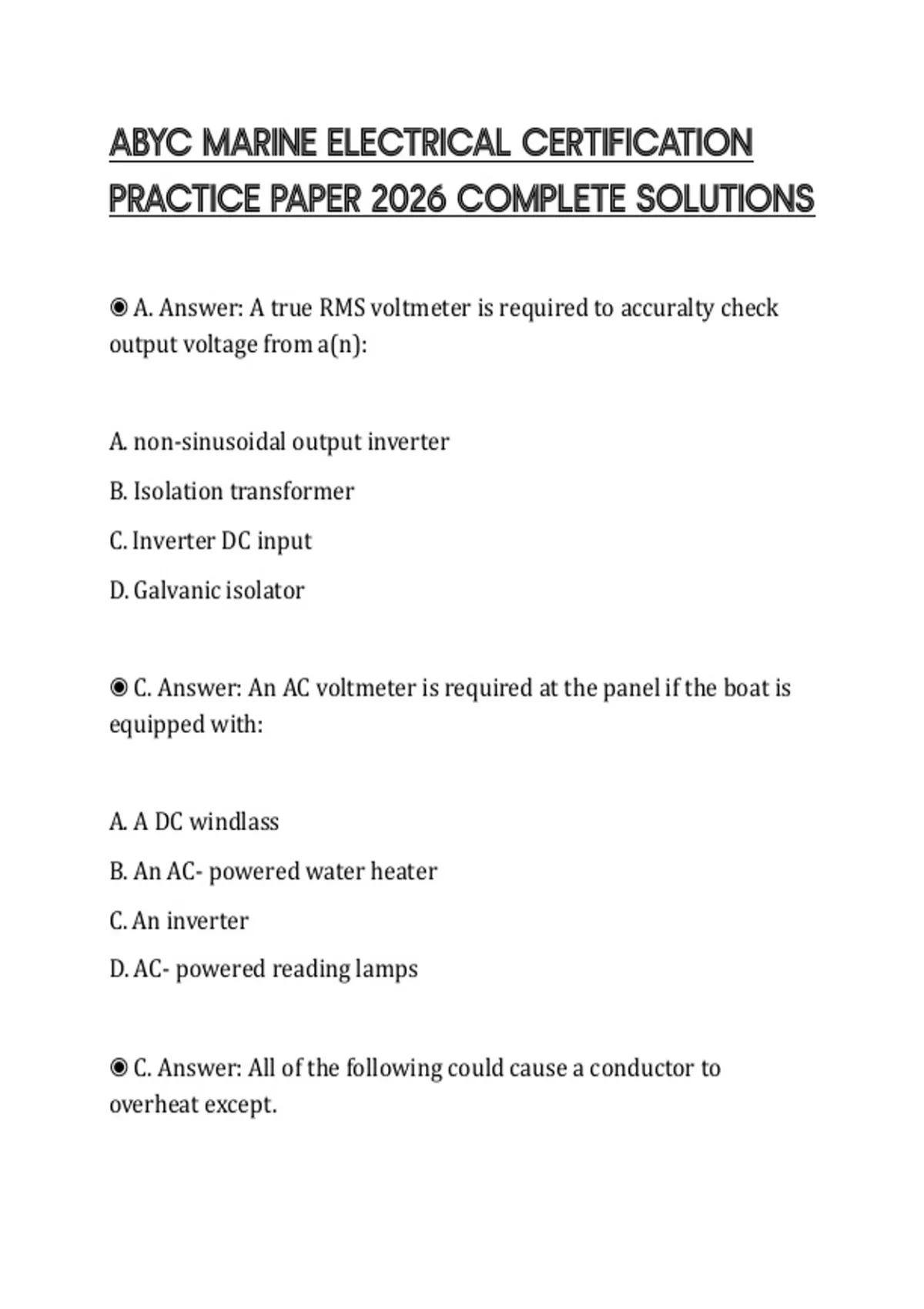

ABYC MARINE ELECTRICAL CERTIFICATION
PRACTICE PAPER 2026 COMPLETE SOLUTIONS
◉ A. Answer: A true RMS voltmeter is required to accuralty check
output voltage from a(n):
A. non-sinusoidal output inverter
B. Isolation transformer
C. Inverter DC input
D. Galvanic isolator
◉ C. Answer: An AC voltmeter is required at the panel if the boat is
equipped with:
A. A DC windlass
B. An AC- powered water heater
C. An inverter
D. AC- powered reading lamps
◉ C. Answer: All of the following could cause a conductor to
overheat except.
,A. Undersized conductor
B. Excessive Amperage
C. Insulation temp rating too low
D. Corroded connector
◉ A. Answer: Tech A says that AC and DC are able to run together
down the same conductor. Tech B says that this is technically
impossible which tech is correct?
A. Tech A
B. Tech B
C. Both techs
D. Neither tech
◉ D. Answer: To check for charger output to the battery de-enegize
charger check batter open - circuit voltage re-energize the charger
and check for a voltage ________V DC or more Conductance tester
A. Rise of 14
B. Drop of 0.5
C. Drop pf 14
D. Rise of 0.5
,◉ C. Answer: The tool of choice for testing AC generator winding
insulation integrity is a:
A. TDR
B. Fox and hound
C. Megohmmeter
D. Clamp - type ammeter
◉ B. Answer: On a brushless generator a possible cause for low AC
voltage output under load could be:
A. High engin RPM
B. Faulty exciter winding diode rectifier
C. Faulty output circuit breaker
D. Excessively high DC voltage supply
◉ A. Answer: All of the following could cause an overheated
electrical connection except:
A. Conductor with an excessively high insulation temperature rating
B. Loose terminal connection
C. Corroded connection
, D. Undersized conductor for the load demand
◉ B. Answer: When trouble shooting AC appliances and equipment
for safety considerations the tech should do all of the following
except
A. Use lock out and tag out procedures
B. By-pass over current devices when possible
C. De-enegrgize the circuit whenever possible
D. Not wear jewelry
◉ C. Answer: For Charging the battery, the alternator produces
alternating current that must be changed to direct current by the.
A. Solenoid
B. Starter
C. Rectifier
D. Voltage regulator
◉ C. Answer: On an inverter that does not provide a true sine wave
output, low voltage troubleshoots must be accomplished using a(n)
_________________ type DVOM
