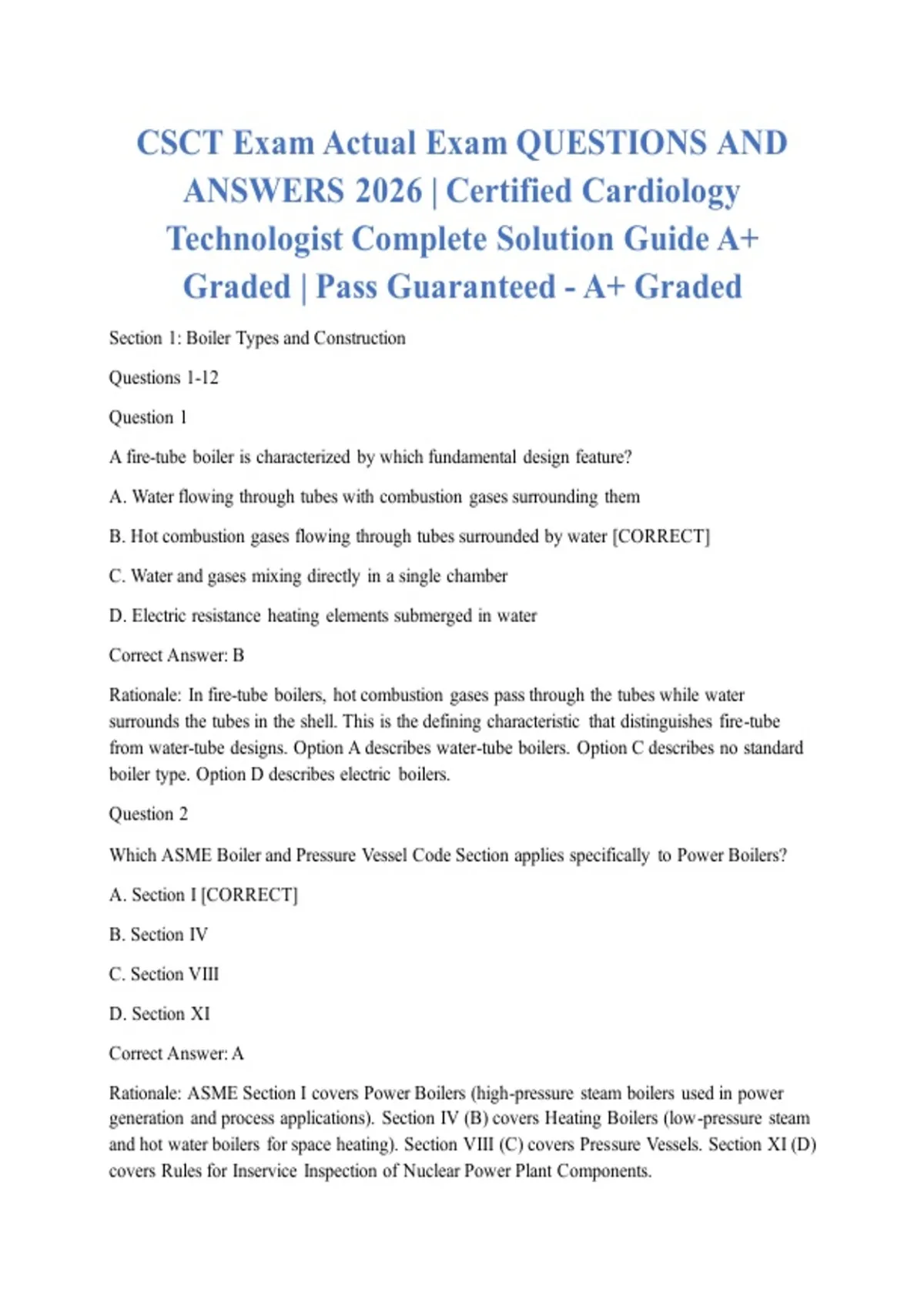

CSCT Exam Actual Exam QUESTIONS AND
ANSWERS 2026 | Certified Cardiology
Technologist Complete Solution Guide A+
Graded | Pass Guaranteed - A+ Graded
Section 1: Boiler Types and Construction
Questions 1-12
Question 1
A fire-tube boiler is characterized by which fundamental design feature?
A. Water flowing through tubes with combustion gases surrounding them
B. Hot combustion gases flowing through tubes surrounded by water [CORRECT]
C. Water and gases mixing directly in a single chamber
D. Electric resistance heating elements submerged in water
Correct Answer: B
Rationale: In fire-tube boilers, hot combustion gases pass through the tubes while water
surrounds the tubes in the shell. This is the defining characteristic that distinguishes fire-tube
from water-tube designs. Option A describes water-tube boilers. Option C describes no standard
boiler type. Option D describes electric boilers.
Question 2
Which ASME Boiler and Pressure Vessel Code Section applies specifically to Power Boilers?
A. Section I [CORRECT]
B. Section IV
C. Section VIII
D. Section XI
Correct Answer: A
Rationale: ASME Section I covers Power Boilers (high-pressure steam boilers used in power
generation and process applications). Section IV (B) covers Heating Boilers (low-pressure steam
and hot water boilers for space heating). Section VIII (C) covers Pressure Vessels. Section XI (D)
covers Rules for Inservice Inspection of Nuclear Power Plant Components.
,Question 3
One boiler horsepower is defined as the ability to evaporate how many pounds of water per hour
into dry saturated steam at 212°F?
A. 10 lbs/hr
B. 34.5 lbs/hr [CORRECT]
C. 100 lbs/hr
D. 212 lbs/hr
Correct Answer: B
Rationale: Standard definition: 1 boiler horsepower (BHP) = 34.5 lbs of steam per hour from
feedwater at 212°F. This equals approximately 33,475 BTU/hr or 9.8 kW. Options A, C, and D
are incorrect values.
Question 4
Which boiler type is most commonly used in marine applications due to its compact size and
high efficiency?
A. Horizontal Return Tubular (HRT)
B. Scotch Marine [CORRECT]
C. Water-tube D-type
D. Cast iron sectional
Correct Answer: B
Rationale: Scotch Marine boilers (a type of fire-tube boiler) are compact, have high thermal
efficiency, and can handle rapid load changes, making them ideal for marine applications and
industrial heating. HRT boilers (A) are older, larger designs. D-type water-tube boilers (C) are
used in power generation. Cast iron (D) is used for low-pressure heating.
Question 5
In a water-tube boiler, the water flows through tubes while:
A. Fuel flows around the tubes
B. Combustion gases surround the tubes [CORRECT]
C. Steam flows through surrounding pipes
D. Air is trapped between tubes
,Correct Answer: B
Rationale: Water-tube boilers have water inside the tubes with hot combustion gases flowing
around the outside of the tubes. This design allows for higher pressures and faster steam
generation than fire-tube designs. The tubes are typically arranged in banks with gas flowing
across them.
Question 6
Which of the following is a disadvantage of fire-tube boilers compared to water-tube boilers?
A. Lower initial cost
B. Slower response to load changes and limited maximum pressure [CORRECT]
C. Simpler construction
D. Easier tube replacement
Correct Answer: B
Rationale: Fire-tube boilers have slower response to steam demand changes due to larger water
volume, and they are generally limited to lower pressures (typically <350 psig) because the shell
must contain pressure. Water-tube boilers can operate at much higher pressures. Lower cost (A)
and simpler construction (C) are advantages of fire-tube. Tube replacement (D) is actually more
difficult in fire-tube due to confined space.
Question 7
A D-type water-tube boiler is characterized by:
A. A single drum with bent tubes
B. Two drums with straight tubes arranged in a "D" shape configuration [CORRECT]
C. A vertical arrangement with coils
D. A cast iron sectional design
Correct Answer: B
Rationale: D-type boilers have a steam drum and mud drum with straight tubes arranged so the
overall shape resembles the letter "D" when viewed in cross-section. This is the most common
industrial water-tube boiler design. A-type (A) has two drums with bent tubes. Coil designs (C)
are different. Cast iron (D) is not a water-tube design.
Question 8
Which material is most commonly used for modern boiler pressure vessel construction?
, A. Cast iron
B. Carbon steel plate and seamless tubes [CORRECT]
C. Aluminum alloy
D. Copper tubing
Correct Answer: B
Rationale: Modern boilers use carbon steel (SA-516, SA-285 plate; SA-192, SA-210 tubes) for
pressure parts due to strength, weldability, and cost. Cast iron (A) is used only for low-pressure
heating boilers. Aluminum (C) lacks strength at temperature. Copper (D) is used for non-pressure
parts or small heating boilers only.
Question 9
Weld construction in modern boilers has largely replaced riveted construction because:
A. Welding is faster and provides stronger, more reliable joints [CORRECT]
B. Rivets are less expensive
C. Welding requires less skilled labor
D. Riveted boilers are safer
Correct Answer: A
Rationale: Welded construction provides continuous, stronger joints without the crevices and
potential leakage points of riveted construction. Welding requires highly skilled labor (C is
wrong). Rivets are not less expensive when considering labor (B is wrong). Riveted boilers have
higher maintenance and failure rates (D is wrong).
Question 10
Which boiler type would be most appropriate for a facility requiring 50,000 lbs/hr of steam at
600 psig and 750°F?
A. Cast iron heating boiler
B. Scotch Marine fire-tube boiler
C. D-type or O-type water-tube boiler [CORRECT]
D. Electric boiler
Correct Answer: C
Rationale: High pressure (600 psig) and superheated steam (750°F) requirements dictate a water-
tube boiler. D-type or O-type industrial water-tube boilers are designed for these conditions. Cast
