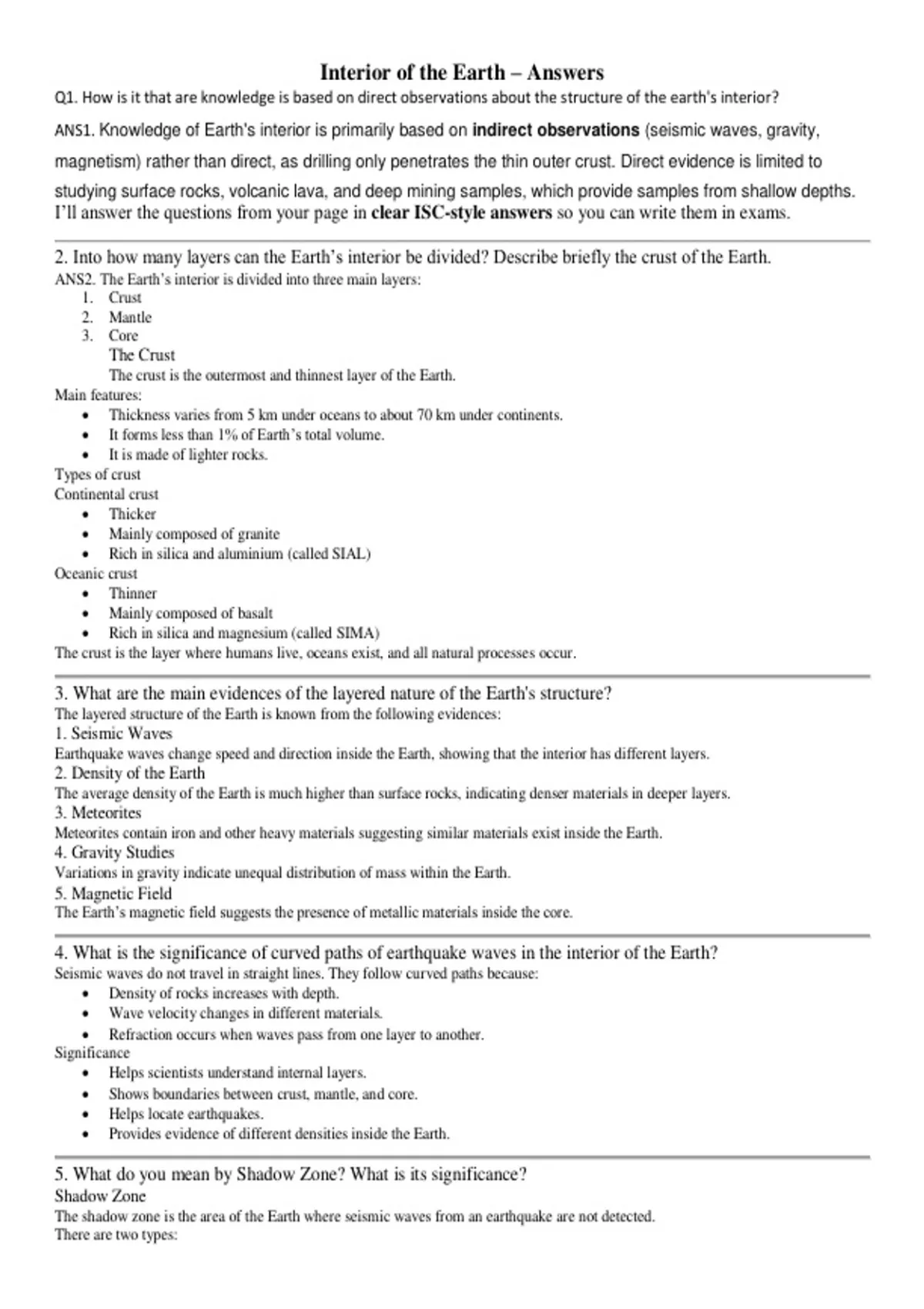

Interior of the Earth – Answers
Q1. How is it that are knowledge is based on direct observations about the structure of the earth's interior?
ANS1. Knowledge of Earth's interior is primarily based on indirect observations (seismic waves, gravity,
magnetism) rather than direct, as drilling only penetrates the thin outer crust. Direct evidence is limited to
studying surface rocks, volcanic lava, and deep mining samples, which provide samples from shallow depths.
I’ll answer the questions from your page in clear ISC-style answers so you can write them in exams.
2. Into how many layers can the Earth’s interior be divided? Describe briefly the crust of the Earth.
ANS2. The Earth’s interior is divided into three main layers:
1. Crust
2. Mantle
3. Core
The Crust
The crust is the outermost and thinnest layer of the Earth.
Main features:
Thickness varies from 5 km under oceans to about 70 km under continents.
It forms less than 1% of Earth’s total volume.
It is made of lighter rocks.
Types of crust
Continental crust
Thicker
Mainly composed of granite
Rich in silica and aluminium (called SIAL)
Oceanic crust
Thinner
Mainly composed of basalt
Rich in silica and magnesium (called SIMA)
The crust is the layer where humans live, oceans exist, and all natural processes occur.
3. What are the main evidences of the layered nature of the Earth's structure?
The layered structure of the Earth is known from the following evidences:
1. Seismic Waves
Earthquake waves change speed and direction inside the Earth, showing that the interior has different layers.
2. Density of the Earth
The average density of the Earth is much higher than surface rocks, indicating denser materials in deeper layers.
3. Meteorites
Meteorites contain iron and other heavy materials suggesting similar materials exist inside the Earth.
4. Gravity Studies
Variations in gravity indicate unequal distribution of mass within the Earth.
5. Magnetic Field
The Earth’s magnetic field suggests the presence of metallic materials inside the core.
4. What is the significance of curved paths of earthquake waves in the interior of the Earth?
Seismic waves do not travel in straight lines. They follow curved paths because:
Density of rocks increases with depth.
Wave velocity changes in different materials.
Refraction occurs when waves pass from one layer to another.
Significance
Helps scientists understand internal layers.
Shows boundaries between crust, mantle, and core.
Helps locate earthquakes.
Provides evidence of different densities inside the Earth.
5. What do you mean by Shadow Zone? What is its significance?
Shadow Zone
The shadow zone is the area of the Earth where seismic waves from an earthquake are not detected.
There are two types:
,P-wave shadow zone
Found between 103° and 142° from the earthquake focus.
S-wave shadow zone
S-waves do not travel through liquids, so they disappear beyond 103°.
Significance
Proves that the outer core is liquid.
Helps scientists determine the structure of the Earth's interior.
6. Distinguish between
(i) P-waves and S-waves
P-Waves S-Waves
Primary waves Secondary waves
Fastest waves Slower
Travel through solids, liquids and gases Travel only through solids
First to reach seismograph Reach after P-waves
(ii) Body Waves and Surface Waves
Body Waves Surface Waves
Travel inside the Earth Travel along Earth’s surface
Include P and S waves Include L waves
Faster Slower
Less destructive Most destructive
(iii) Mohorovicic Discontinuity and Gutenberg Discontinuity
Mohorovicic Discontinuity Gutenberg Discontinuity
Boundary between crust and mantle Boundary between mantle and core
Located about 35 km deep Located about 2900 km deep
Discovered by Mohorovicic Named after Beno Gutenberg
(iv) Core and Mantle
Mantle Core
Lies below the crust Innermost layer
Extends to 2900 km Extends from 2900 km to center
Composed of silicate rocks Mainly iron and nickel
Mostly solid/semi-molten Outer core liquid, inner core solid
7. Short Notes
(i) Density of the Earth
The average density of the Earth is about 5.5 g/cm³. Surface rocks are lighter while deeper layers are denser. This suggests heavy
materials like iron exist in the core.
(ii) Temperature within the Earth
Temperature increases with depth. This is called the geothermal gradient.
Near surface: moderate
Core: may exceed 5000°C.
Heat comes from radioactive elements and internal energy of the Earth.
(iii) Pressure inside the Earth
Pressure increases with depth due to the weight of overlying rocks.
At the core, pressure is extremely high, which keeps the inner core solid despite high temperatures.
(iv) The Earth’s Crust
The crust is the outermost layer of the Earth. It contains continents, oceans, minerals, and supports life. It is divided into continental
and oceanic crust.
,(v) SIAL
SIAL refers to the upper part of the continental crust composed mainly of:
Silica
Aluminium
It forms the continents and is lighter in density.
(vi) SIMA
SIMA refers to the lower part of the crust mainly composed of:
Silica
Magnesium
It forms the ocean floor and is denser than SIAL.
(vii) NIFE
NIFE refers to the composition of the Earth’s core.
Ni – Nickel
Fe – Iron
It is very dense and responsible for the Earth’s magnetic field.
1. What are the main sources of information regarding the interior of the Earth? How do earthquake
waves help us in knowing about the interior of the Earth?
Knowledge about the Earth’s interior is obtained from direct and indirect sources.
Direct Sources
These provide limited but useful information.
1. Mining
Deep mines allow scientists to study rocks and temperature below the Earth's surface.
2. Drilling
Deep drilling projects help scientists examine the structure of the crust.
3. Volcanic Eruptions
Volcanoes bring magma, gases, and rocks from the interior to the surface, giving clues about materials inside the Earth.
However, these methods reach only a small depth compared to the Earth’s total radius.
Indirect Sources
1. Seismic Waves (Most Important)
Earthquakes produce waves that travel through the Earth. Their behavior reveals the internal structure.
2. Gravity Studies
Differences in gravity show variations in density within the Earth.
3. Magnetic Studies
The Earth’s magnetic field suggests the presence of iron in the core.
4. Meteorites
Meteorites have compositions similar to Earth's interior and help scientists understand the materials inside.
, Role of Earthquake (Seismic) Waves
Seismic waves are of three main types:
P-Waves (Primary Waves)
Fastest waves
Travel through solids, liquids, and gases
S-Waves (Secondary Waves)
Travel only through solids
Cannot pass through liquids
Surface Waves
Move along the surface
Cause the most damage during earthquakes
How they help:
Changes in speed indicate different layers.
Refraction and reflection reveal boundaries.
Absence of S-waves beyond certain zones proves the outer core is liquid.
Help determine the depth and composition of Earth's layers.
Thus seismic waves are the most reliable source of information about the Earth's interior.
2. Discuss how seismic waves suggest the layering of the Earth's interior.
Seismic waves produced during earthquakes travel through the Earth and are recorded by instruments called seismographs.
Scientists observed that these waves change speed and direction as they pass through different materials. This indicates that the Earth is made of
layers with different densities.
Evidence from P-Waves
P-wavestravel through solids and liquids.
However, they slow down and bend when entering the outer core, indicating a change in material.
Evidence from S-Waves
S-waves travel only through solids.
They disappear beyond the core, proving that the outer core is liquid.
Shadow Zones
Certain areas of the Earth do not receive direct seismic waves.
P-wave shadow zone occurs between 103° and 142°.
S-waves disappear beyond 103°.
This helped scientists discover:
